Smart Bes electric bike home solar system tv motherboard price
Category: Aluminum PCB  Publish Time: 2016-08-15 14:46
We offer:PCB,PCBA,Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB,HDI Mobilephone PCB,Gold-plating PCB,(printed circuit board with assembly)PCBA,SMT PCBA,DIP PCBA,PCB&PCBA Copy,PCB Assembly,OSP,HASL and etc.

   Smart Bes electric bike home solar system tv motherboard priceSmart Bes electric bike home solar system tv motherboard priceSmart Bes electric bike home solar system tv motherboard price



 Smart Bes electric bike home solar system tv motherboard price



*Aluminum PCB manufacturer
* ISO 9001:2000 ,UL, RoHS
*No MOQ
*Quick delivery.
*Price list:80-155USD/square meter

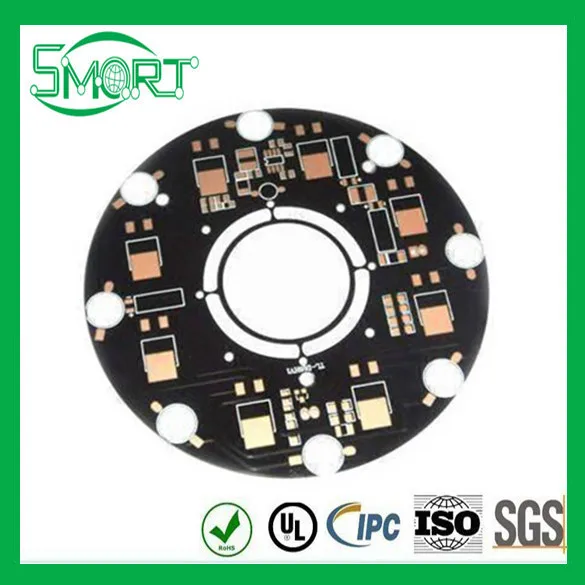

1.aluminum base pcb led light
2.aluminum substrate pcb
3.aluminum base copper-clad laminate pcb
4.aluminum base pcb



As a Aluminum PCB manufacturer.The good quality and good price for pcb is our choose for you. Please give us your files of pcb for a quote. We can deal with CAM350, PCAD2002, PROTEL, Power PCB and PADS. We also can send you the samples for quality check when all is confirmed. Please see the parameter as follows:


1)material: FR-4, FR-1, CEM-1, CEM-3, FR-4 Halogen Free, Aluminum based
2)layer: 1-12
3)board thickness: 0.4mm-3.2mm
4)copper thickness: 0.5oz, 1.0oz, 2oz, 3oz,
5)min. Drilled hole size: 0.2mm
6)min. Track width/space: 4/4mil(0.1/0.1mm)
7)surface finish: HASL, Lead free HASL, OSP, Gold-plating, Chemical silver, Chemical gold(ENIG),
Chemical tin, Carbon ink.
8)solder mask color: Green, yellow, black, white, red, blue
9)profiling: Punching, Routing, V-cut, Golden finger, Beveling
10)V-cut angle: 20, 25, 30, 45 degree
11)Beveling angle: 20, 25, 30, 45 degree
12)Max working panel: 24*20 (610mm*508mm)
13)E-test voltage: 50-300V
14)Certificate: UL, ISO9001, RoHS
15)Impedance control:
Microstrip impedance: 50-60Ω, Tolerance: +-10%
Differential Impedance: 90-120Ω, Tolerance: +-10%
16)Quality standard: IPC-A-600F.



2.Detailed Terms for Pcb Assembly



Technical requirement:



1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Assembly With UL,CE,FCC,Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Assembly Line

7) High density interconnected board placement technology capacity.



Quote requirement:



1)Gerber file and Bom list

2)Clear quantity of pcba or pcba sample for us

3)Test method for PCBA







Certification:


UL Approval
ROHS
ISO9001:2000
CE certification
SGS Lead-free certification



*well and high quality control
*prompt delivery
*small order acceptable
*perfect craft procedure
*customer's designs are welcome

If you are interested in any of our products please feel free to contact us.





 World wide:







Smart Bes electric bike home solar system tv motherboard price

Shipping :



FEDEX, UPS, DHL, EMS ,TNT via Express company

Also can follow customer by Sea.

Freight collect or prepaid:Of your choice.





Smart Bes electric bike home solar system tv motherboard price



If you are interested in any of our products please feel free to contact us  ^~^ ^~^
