Your Current Position: Products

Smart Electronics SMD 5730 5630 LED circuit board Aluminum PCB

SMD 5730 5630 LED circuit board Aluminum PCB

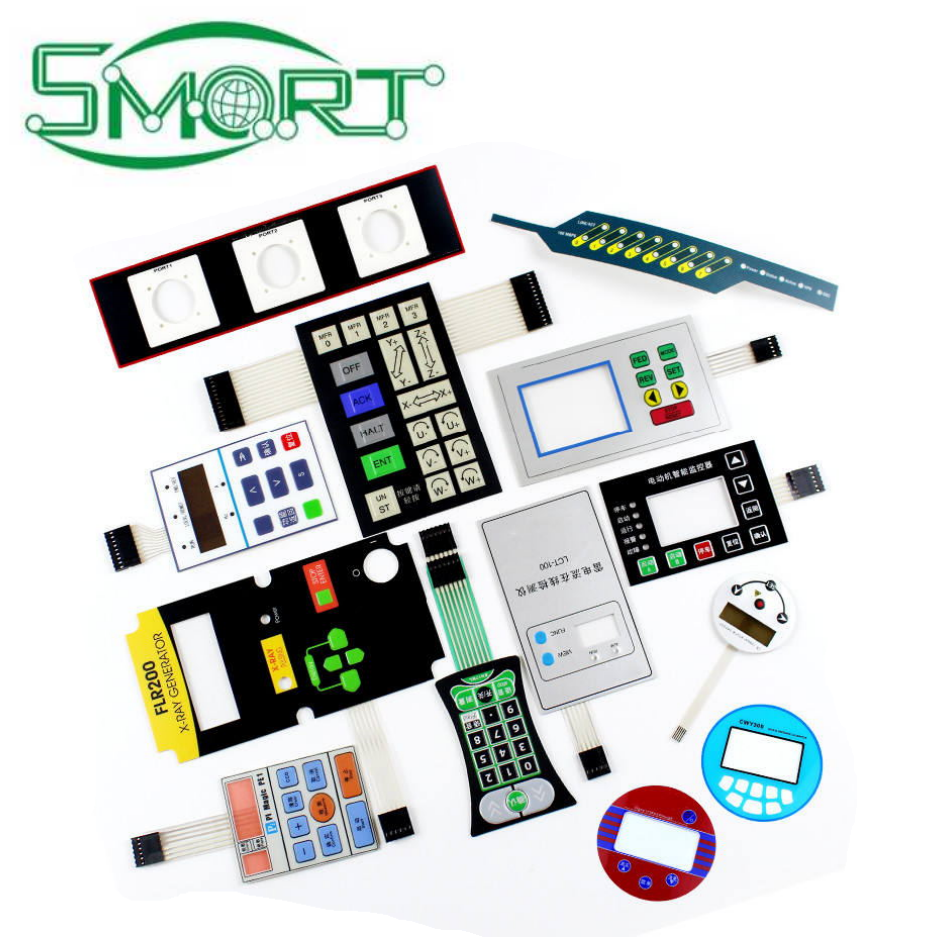

China silicone tactile membrane switch,silicone rubber keypad for tv remote control

Technology Capability
1.Material：Polycarbonate/PET/PVC/Rubber/Glass
2.Matt/Glossy Surface
3.With/Without Embossing Metal dome
4.Assembly LED/FFC Cable
5.Clear/Transparent/Color Window
6.Adhesive:3M 467, 468, 9448A etc
7.Connector:1.0mm pitch, 2.54mm pitch
Smart Electronics Fpc factory custom rolled copper 68PU type cable bending resistant cable display adapter fpc

Fpc factory custom rolled copper 68PU type cable bending resistant cable display adapter fpc

Outer copper thickness:1/2oz,1oz
Reinforcement: steel reinforcement, aluminum reinforcement, PI reinforcement,
FR4 reinforcement, PET reinforcement
Pad Finish: Immersion Gold, Lead Free Tin Spray, OSP
Plate Option: Flame retardant
Backing: High temperature resistant
Copper Foil Type: Non-adhesive Calendered Copper, Non-adhesive Electrolytic Copper
Electromagnetic film: single-sided, double-sided
Forming method: film molding, laser molding, mold molding
Thickness of gold/nickel plating:2U,1U
Substrate: Polyimide (PI)
Gold finger insertion/removal: Yes
Insulation Thickness: Conventional
Smart Electronics Professional Led Pcb/Pcba Manufacturer Custom Rgb Flexible Led Pcb Pcba For Led Strip

Professional Led Pcb/Pcba Manufacturer Custom Rgb Flexible Led Pcb Pcba For Led Strip
Smart Electronics Multi layer FPCB flexible circuit board, flexible board sampling, mobile phone testing board, adapter board, thin FPC adapter cable

Multi layer FPCB flexible circuit board, flexible board sampling, mobile phone testing board, adapter board, thin FPC adapter cable

Outer copper thickness: 0.5oz,1oz
Reinforcement: steel reinforcement, aluminum reinforcement, PI reinforcement,
FR4 reinforcement, PET reinforcement
Surface treatment: Hard gold plating, OSP
Plate Option: Flame retardant
Base material: FR-4, Polyimide (PI)
Insulation Thickness: Thin Plate
Test Methods: AOI full test + flying probe sampling, 100% flying probe test, AOI full test + flying probe full test, engineering test stand
Soldermask color: yellow
Character color: white
Number of layers: 10
Special process: “carbon oil, gold finger beveled edge, metal half hole, metal wrapped edge
Minimum line width/spacing: 0.125mm,0.1mm
Solder Resist Covering: Over Hole Covering Oil, Over Hole Opening Window
Minimum hole diameter: 0.15mm,0.1mm
Plate thickness: 0.3,1.2mm
On off membrane switch with LED Customized button membrane switch

Technology Capability
1.Material：Polycarbonate/PET/PVC/Rubber/Glass
2.Matt/Glossy Surface
3.With/Without Embossing Metal dome
4.Assembly LED/FFC Cable
5.Clear/Transparent/Color Window
6.Adhesive:3M 467, 468, 9448A etc
7.Connector:1.0mm pitch, 2.54mm pitch
Smart Electronics 3W 5W 7W 9W 12W DOB LED BULB PCB Driver free LED light board 220V

3W 5W 7W 9W 12W DOB LED BULB PCB Driver free LED light board 220V
Membrane switch with 9mm ffc cable
Smart Electronics Customized fpc heating sheet poly milling imine heating sheet fpc printer heating sheet

Customized fpc heating sheet poly milling imine heating sheet fpc printer heating sheet fpc flexible board pcb circuit board

Materials : PI, copper and Ni/Au
Type : FPC
layers : 1-4 layers
Finished board dimensions : 10 x 15, 250 x 380mm
Board thickness : 0.057 to 0.6mm
Finished board thickness tolerance : ±2 mils
Drill hole diameter : 0.15 to 6.7mm
Finished via diameter : 0.1mm (minimum)
Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm
Smart Electronics Supplier LED Bulb 3w 5w 7w 9w 12w 15w 18w LED Downlight Module Input AC 220V Aluminum LED PCB Board

Supplier LED Bulb 3w 5w 7w 9w 12w 15w 18w LED Downlight Module Input AC 220V Aluminum LED PCB Board
Smart Electronics Double-sided fpc cable 4pin 8pin 40pin cable custom fpc cable fpc soft cable proofing

Double-sided fpc cable 4pin 8pin 40pin cable custom fpc cable fpc soft cable proofing

Processing customization: Yes
Brand: Smart
Model：Customized fpc cable Flat FPC cable 4P/6P/8/10/11/12/13/20/30/40/50pin
Layer: double-sided
Substrate: Adhesive AR
Insulation material: 20213
Insulation thickness: regular board
Smart Electroncis Customized RoHS Medical Flexible Circuit Board PCBA Service Electronic Prototype Board Assembly PCBA Manufacturer

Customized RoHS Medical Flexible Circuit Board PCBA Service Electronic Prototype Board Assembly PCBA Manufacturer

Materials : PI, copper and Ni/Au
Type : FPC
layers : 1-4 layers
Finished board dimensions : 10 x 15, 250 x 380mm
Board thickness : 0.057 to 0.6mm
Finished board thickness tolerance : ±2 mils
Drill hole diameter : 0.15 to 6.7mm
Finished via diameter : 0.1mm (minimum)
Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm
