Smart Electronics 1.9inch TFT LCD display 170x320 high-definition ISP LCD screen st7789 driver serial port IPS screen

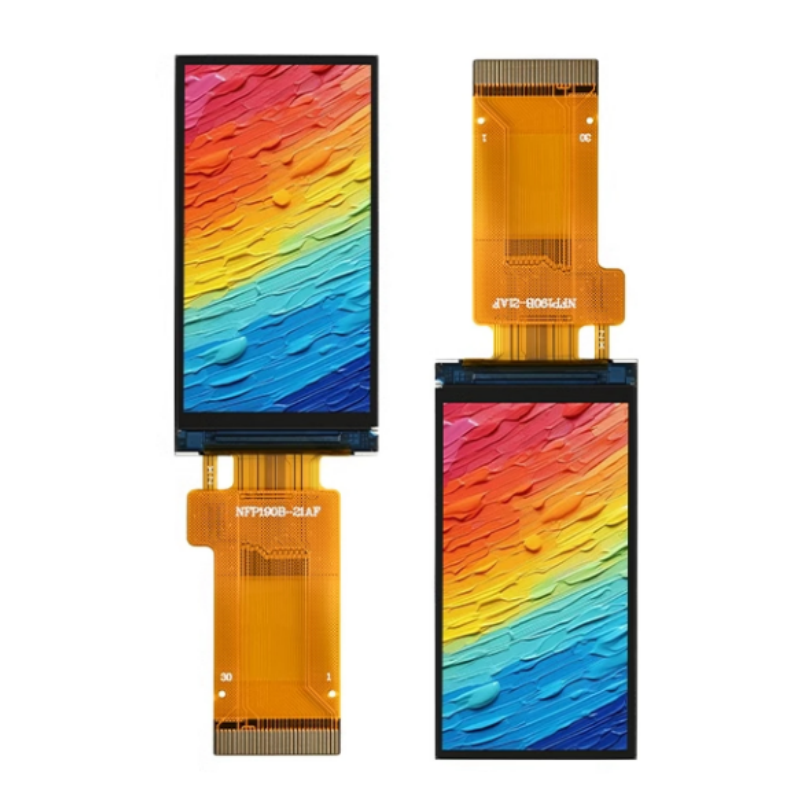

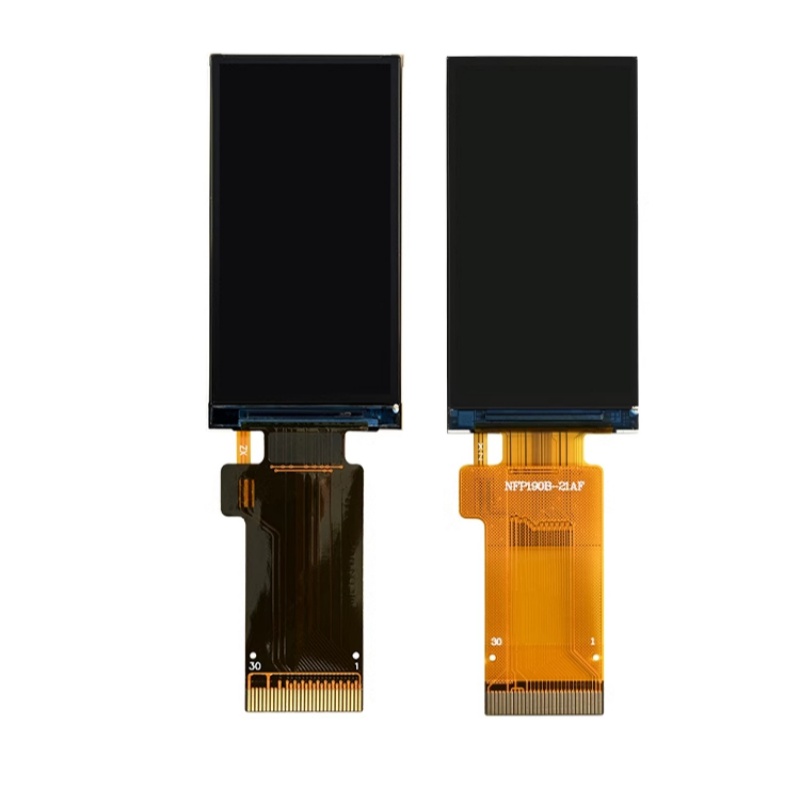

1.9inch TFT LCD display 170x320 high-definition ISP LCD screen st7789 driver serial port IPS screen
shared：
Product Name
1.9 inch TFT LCD display screen
Resolution
170 * 320
Driver chip
ST7789V3
Perspective direction
ALL O' CLOCK
Display size
22.695*42.72(mm)
Pixel size
0.1335 * 0.1335 (mm)
Backlight
4 * LED
Number of pins
30 pins (0.5mm spacing plug-in type)
Brightness
350 (TYP)
Working temperature
-20 ° CT0+70 ° C

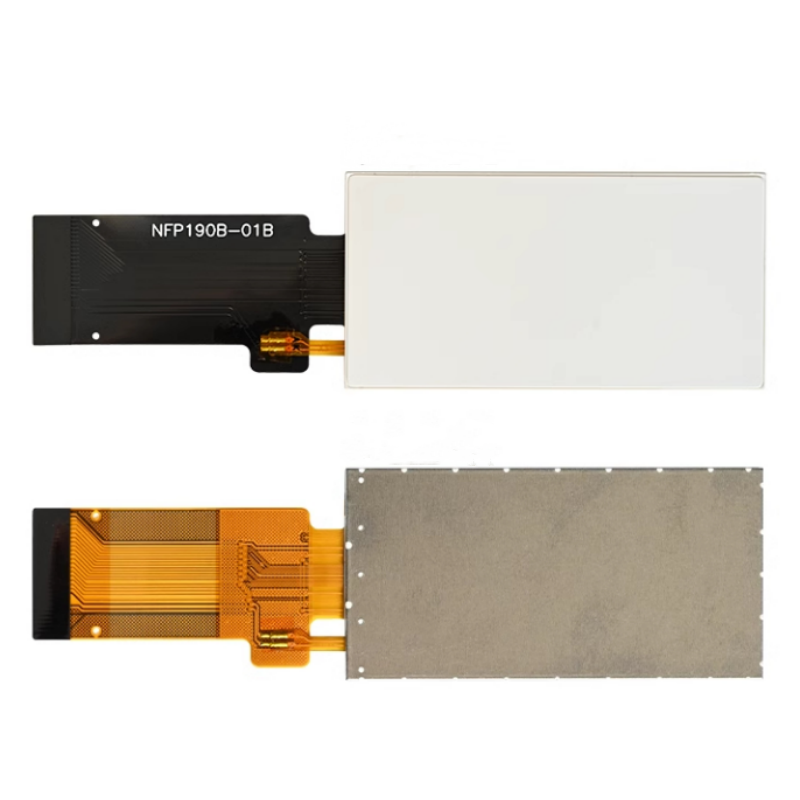

Rubber frame bare screen
Rubber iron integrated bare screen
SPI interface module corresponding to the rubber frame
