Smart Electronics Customized fpc heating sheet poly milling imine heating sheet fpc printer heating sheet

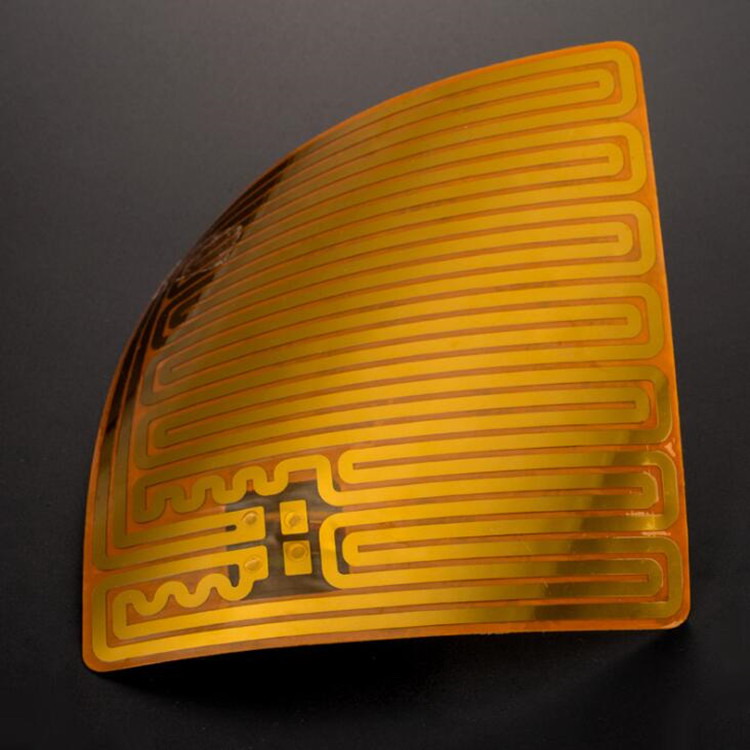

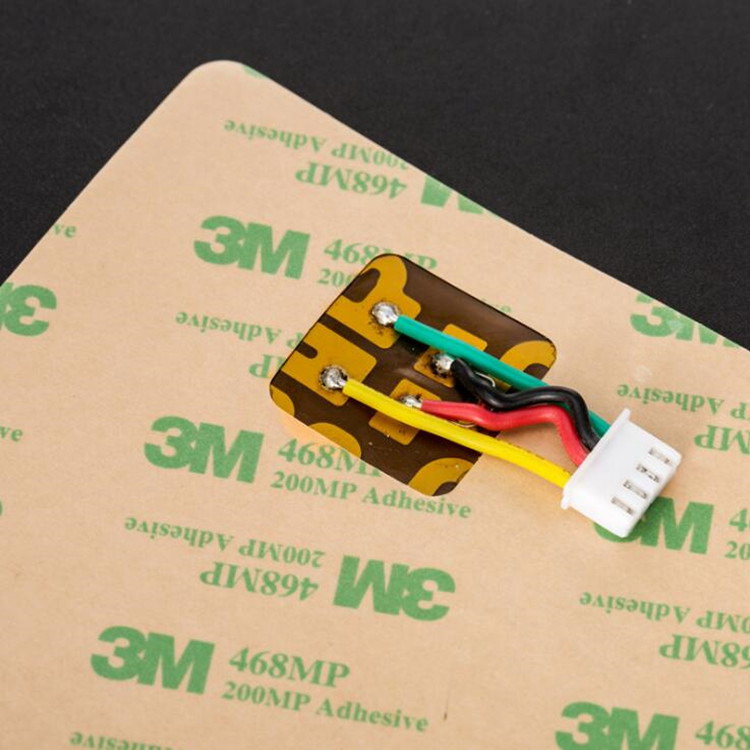

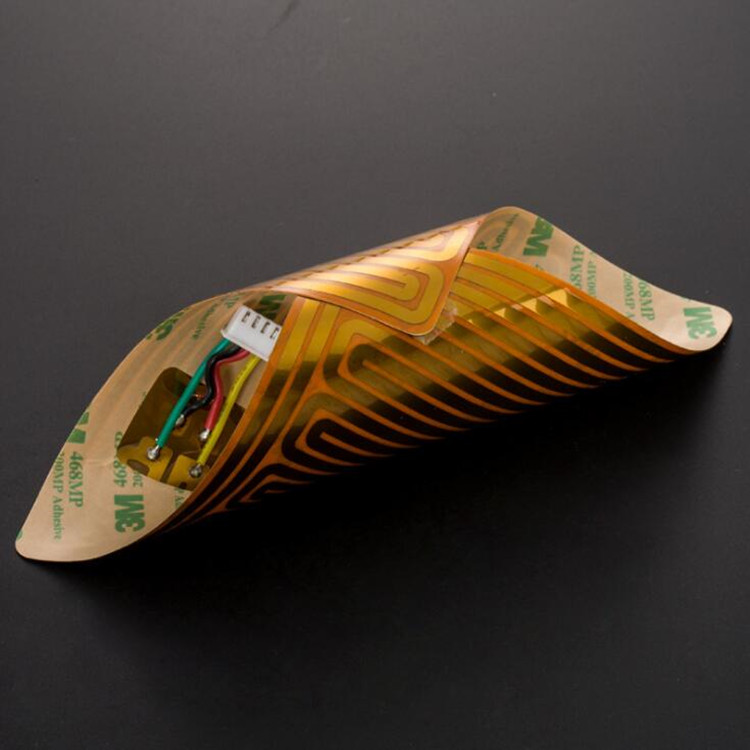

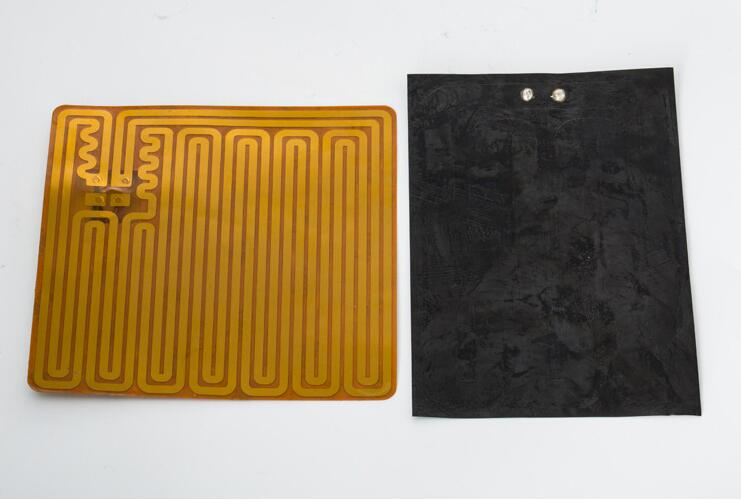

Customized fpc heating sheet poly milling imine heating sheet fpc printer heating sheet fpc flexible board pcb circuit board

Materials : PI, copper and Ni/Au
Type : FPC
layers : 1-4 layers
Finished board dimensions : 10 x 15, 250 x 380mm
Board thickness : 0.057 to 0.6mm
Finished board thickness tolerance : ±2 mils
Drill hole diameter : 0.15 to 6.7mm
Finished via diameter : 0.1mm (minimum)
Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm
shared：

Customized according to customer's drawing

conventional process

Materials : PI, copper and Ni/Au

Type : FPC

layers : 1-4 layers

Finished board dimensions : 10 x 15, 250 x 380mm

Board thickness : 0.057 to 0.6mm

Finished board thickness tolerance : ±2 mils

Drill hole diameter : 0.15 to 6.7mm

Finished via diameter : 0.1mm (minimum)

Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm
