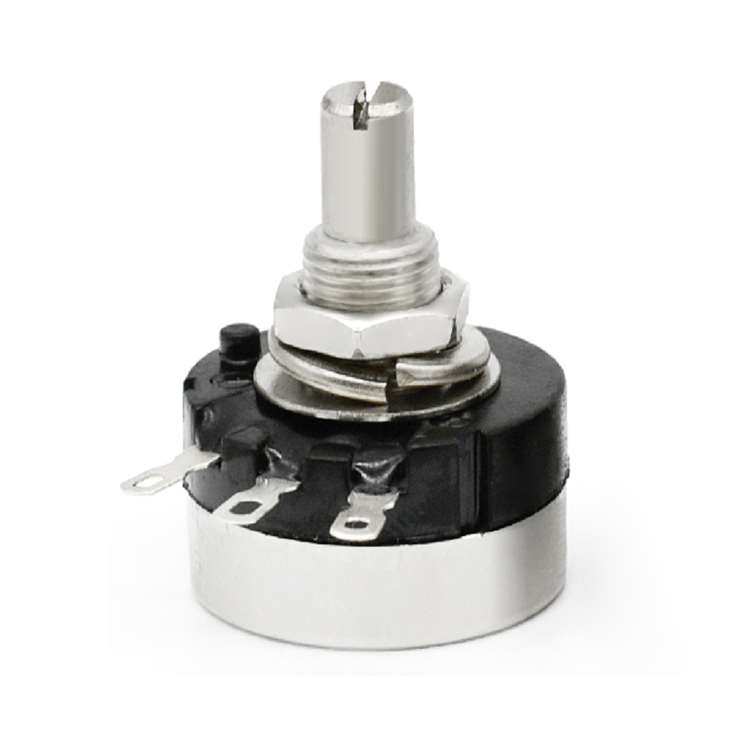

Smart Electronic RV24YN20S B103 502 1K/2K/5K/10K Adjustable Carbon Film Single Turn Speed Regulating Potentiometer

Products > Potentiometer > Smart Electronic RV24YN20S B103 502 1K/2K/5K/10K Adjustable Carbon Film Single Turn Speed Regulating Potentiometer
    • 1
    • 2
    • 3
    • 4
    • 5

Smart Electronic RV24YN20S B103 502 1K/2K/5K/10K Adjustable Carbon Film Single Turn Speed Regulating Potentiometer

Resistance:
101(100Ω),B201(200Ω),B501(500Ω),B102(1K),B202(2K),B502(5K),B103(10K),B203(20K),B503(50K),B104(100K),

B204(200K),B254(250K),B504(500K),B105(1M)

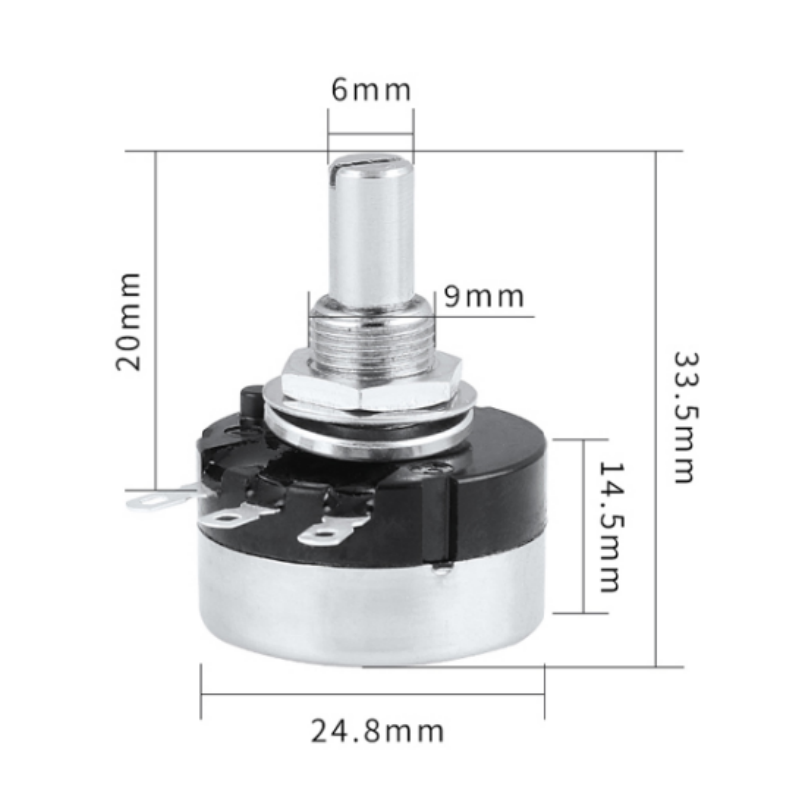

Shaf diameter: 6MM
Shaft Length: 20MM
External diameter: 24MM
Tolerance resistance: ±10%
Mechanical angle: 300°
Temperature Range: -10°C~+85°C
Rotational Life: 15000 times
Power: 2W
Package: 20pcs/box
shared：

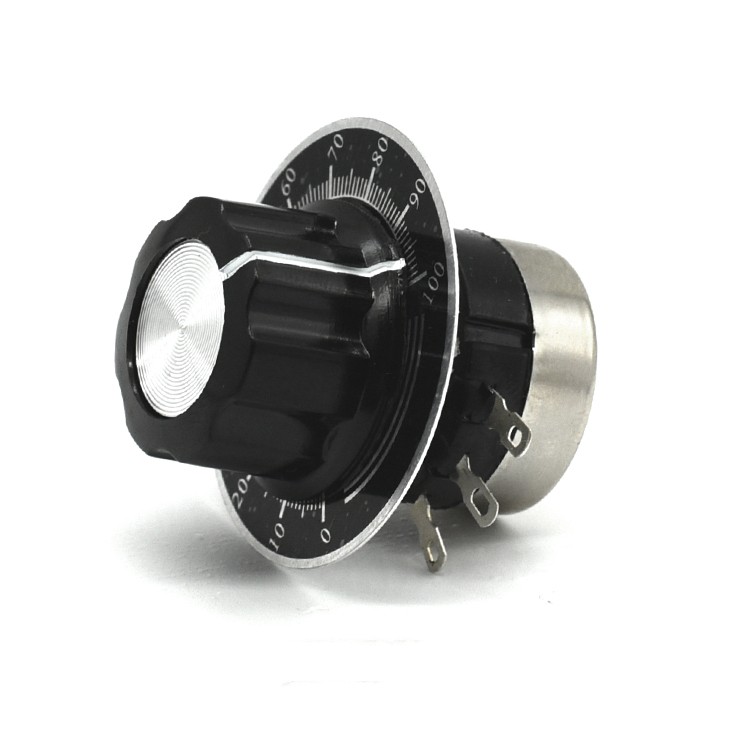

RV24YN20S B103 502 1K/2K/5K/10K Adjustable Carbon Film Single Turn Speed Regulating Potentiometer Knob
Resistance:

101(100Ω),B201(200Ω),B501(500Ω),B102(1K),B202(2K),B502(5K),B103(10K),B203(20K),B503(50K),B104(100K),

B204(200K),B254(250K),B504(500K),B105(1M)


Shaf diameter: 6MM
Shaft Length: 20MM
External diameter: 24MM
Tolerance resistance: ±10%
Mechanical angle: 300°
Temperature Range: -10°C~+85°C
Rotational Life: 15000 times
Power: 2W
Package: 20pcs/box
