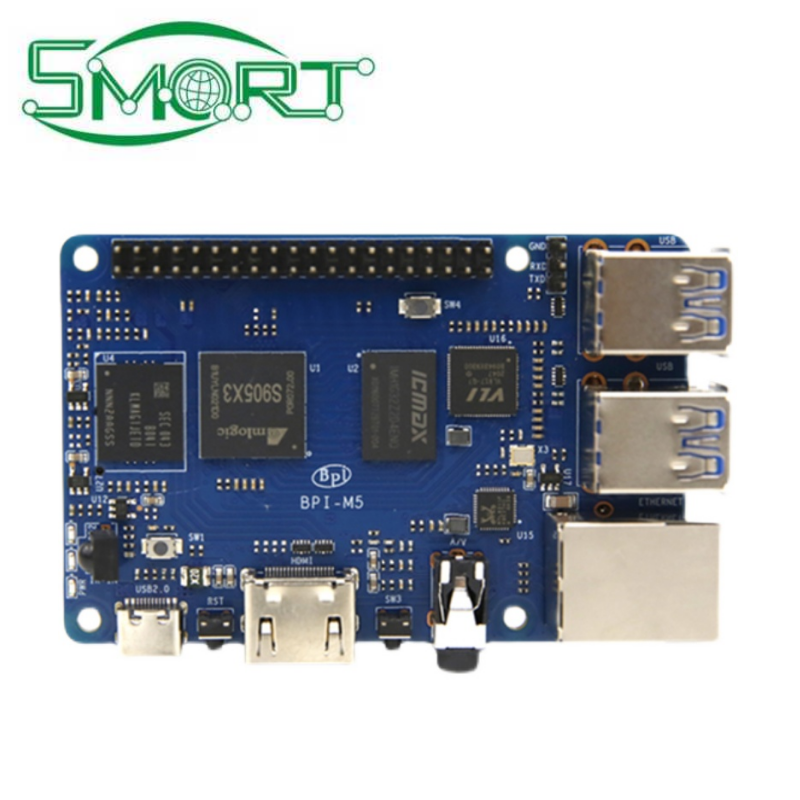

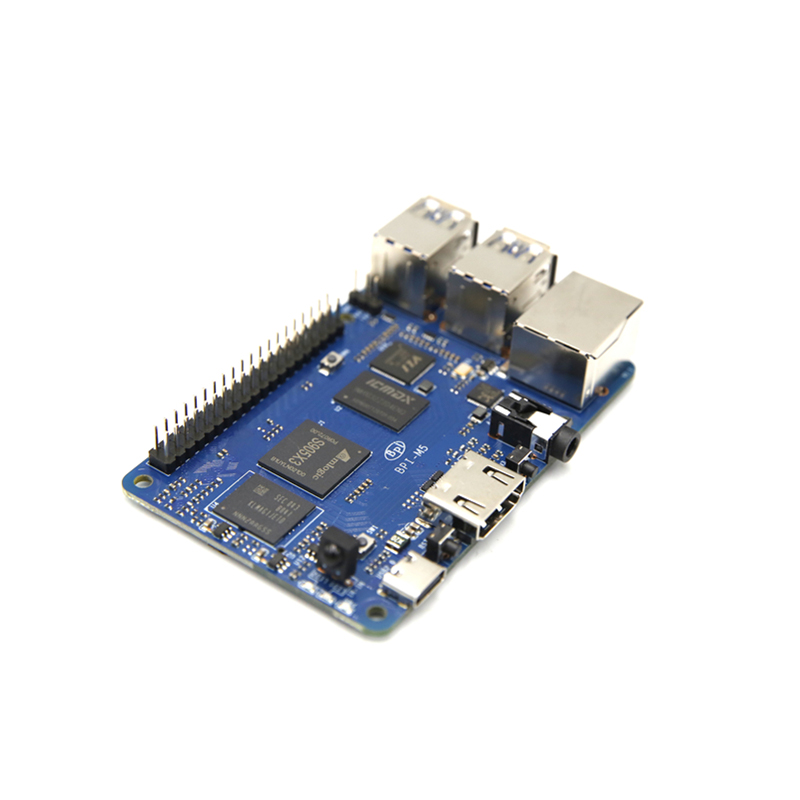

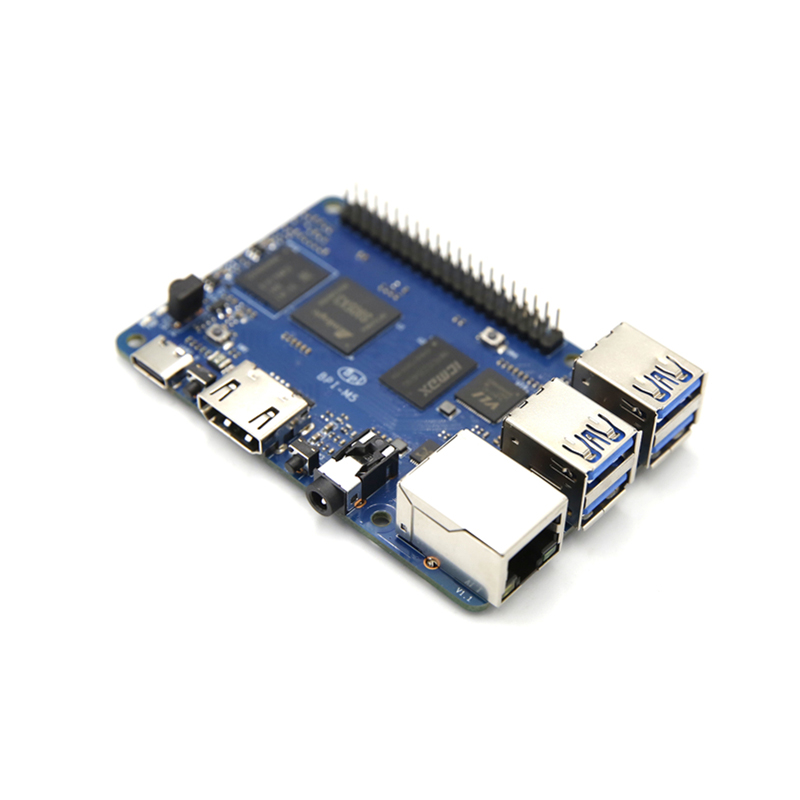

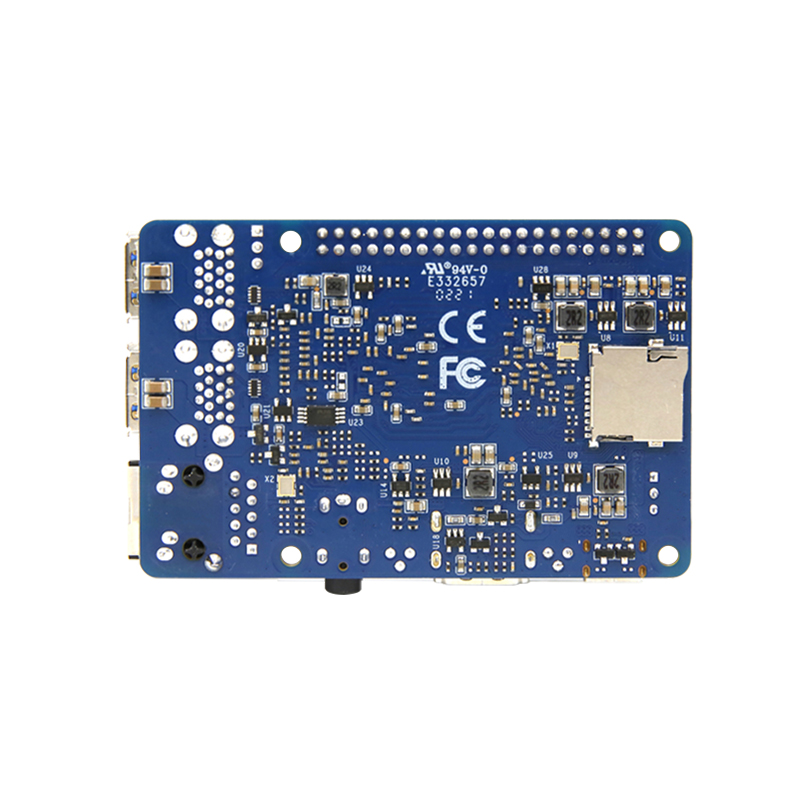

Smart Electronics Banana Pi M5 Development Board BPI-M5 4GB Amlogic S905X3 Quad Core Processor

Banana Pi M5 Development Board BPI-M5 4GB Amlogic S905X3 Quad Core Processor
shared：
Banana Pi M5 Development Board BPI-M5 4GB Amlogic S905X3 Quad Core Processor
Hardware Specifications
CPU
Amlogic S95 × 3 Quad Core Cortex-a55 (2.0 XXGHZ)
GPU
Mall-g31 MP2 GPU with 4 X Execution Engines (650mhz)
Memory
4 GB LPDDR4
Storage
MicroSD slot supports 256GB expansion and 16GB EMMC flash memory, with a high support of 64GB
Network
10/100/1000 Mbit/s Ethernet
Video output
1 * HDMI20 (up to 4K@60Hz HDR, CEC, EDID)
Audio output
3.5mm jack and 1 * HDMI digital output
USB port
USB3.0 port * 4
Universal input/output interface
40 pin connector: GPIO (* 28) and power supply (+5V,+3.3V, and GND), GPIO pin can be used for UART, I2C, SPI, or PWM
Switch
Restart, power, and U start
LED
Power status and activity status
Energy source
5V 3A TYPE-C connector
Size and weight
92mmx60mm, 48g
Operating system
Android and Lnux
