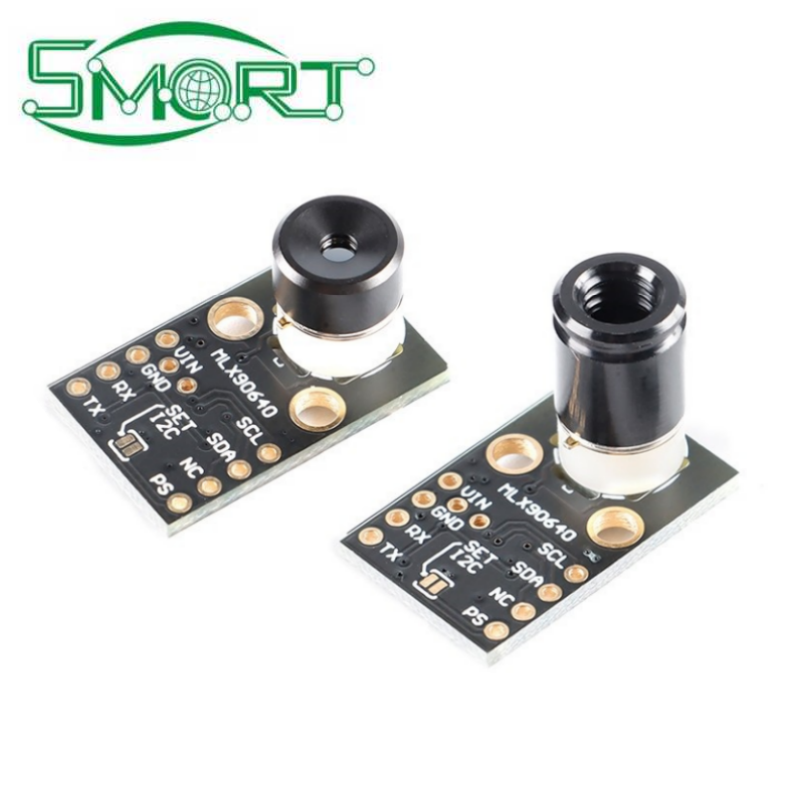

MLX90640BAA/B 32 * 24 infrared temperature measurement dot matrix sensor module Infrared imaging/IR thermal imager camera module

Products > Sensor Module > MLX90640BAA/B 32 * 24 infrared temperature measurement dot matrix sensor module Infrared imaging/IR thermal imager camera module
    • 1
    • 2
    • 3
    • 4
    • 5
    • 6

MLX90640BAA/B 32 * 24 infrared temperature measurement dot matrix sensor module Infrared imaging/IR thermal imager camera module

shared：

Purchase Notes

This product link contains seven SKU. The price of each SKU is different. Please specify which SKU

you need, and then ask the salesman for a quotation.

Model Number
SKU1-MLX90640ESF-BAB-000-TU probe
SKU2-MLX90640ESF-BAA probe

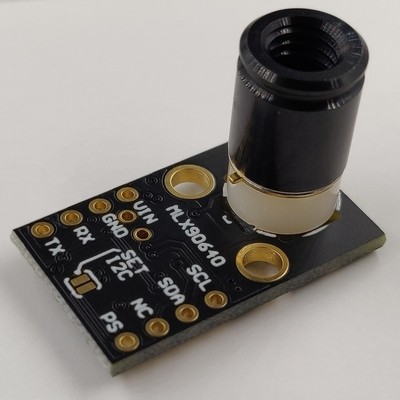

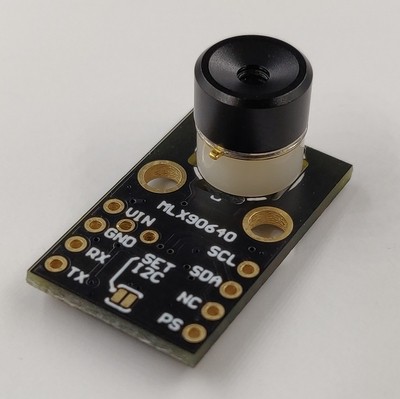

SKU3-MLX90640ESF-BAA module
SKU4-MLX90640ESF-BAB module

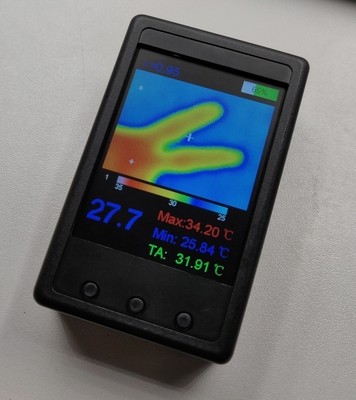

SKU5-GY-LCD90640-BAB with screen housing
SKU6-GY-MODBUS-90640BAB Metal Tube MODBUS Protocol

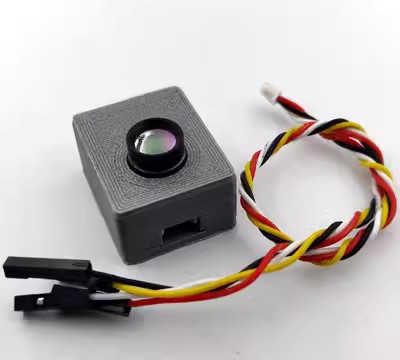

SKU7-GY-IR8062 80 * 60 resolution TTL output
AboutInfrared imaging/R thermal imaging module
Measurement range
-40 °~300 °
Resolution
0.1 °
Measurement accuracy
± 2
Repetitive accuracy
± 2
Response frequency
8Hz (460800bps)
Working voltage
3-5 V
Working current
42mA
Working temperature
-20 °~85 °
Storage temperature
-40 ° C~125 ° C
Size
15.5mm × 25mm
MLX90640BAA field of view 110 * 75 degrees (large angle, suitable for close measurement) MLX90640BAB field of view angle 55 * 35 degrees (small angle, suitable for long-distance measurement)
