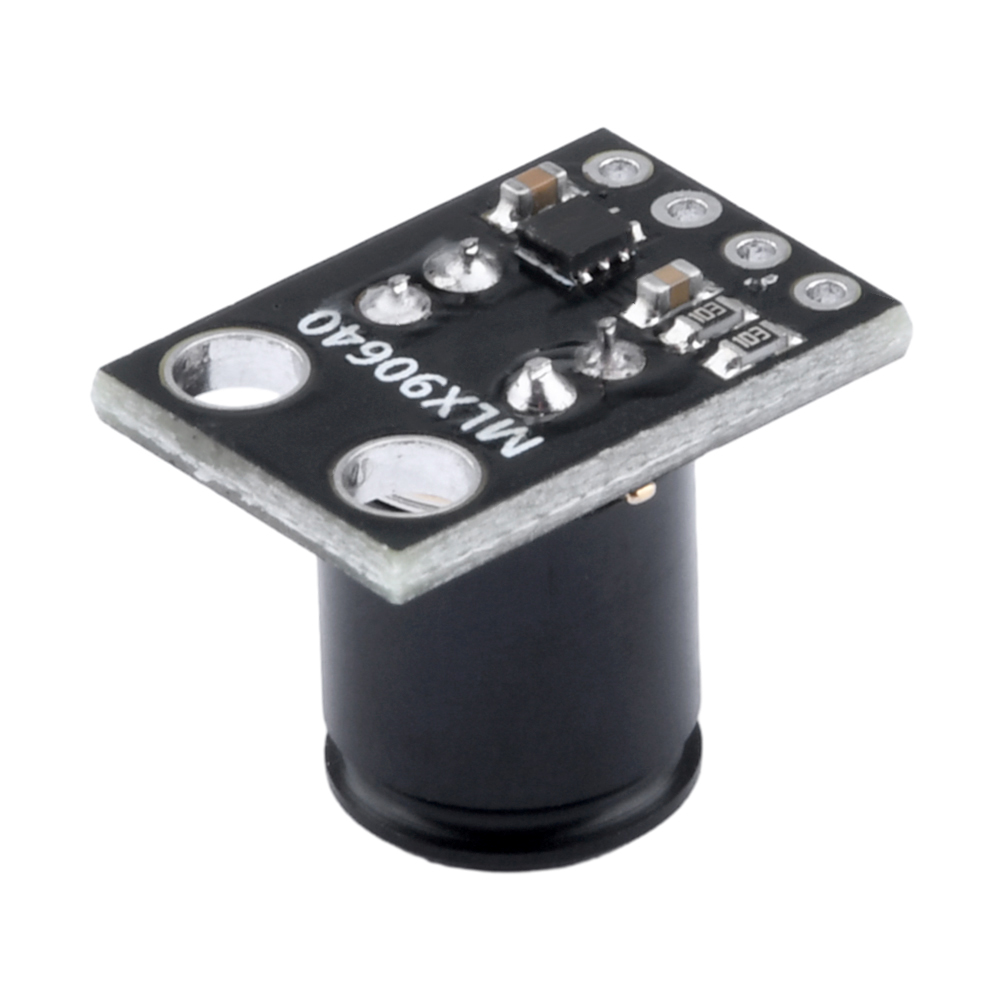

MLX90640ESF-BAA MLX90640ESF-BAB Infrared Temperature Measurement Dot Matrix Thermal Sensor Module

shared：

Purchase Notes

This product link contains Two SKU. The price of each SKU is different. Please specify which SKU

you need, and then ask the salesman for a quotation. （

Model Number

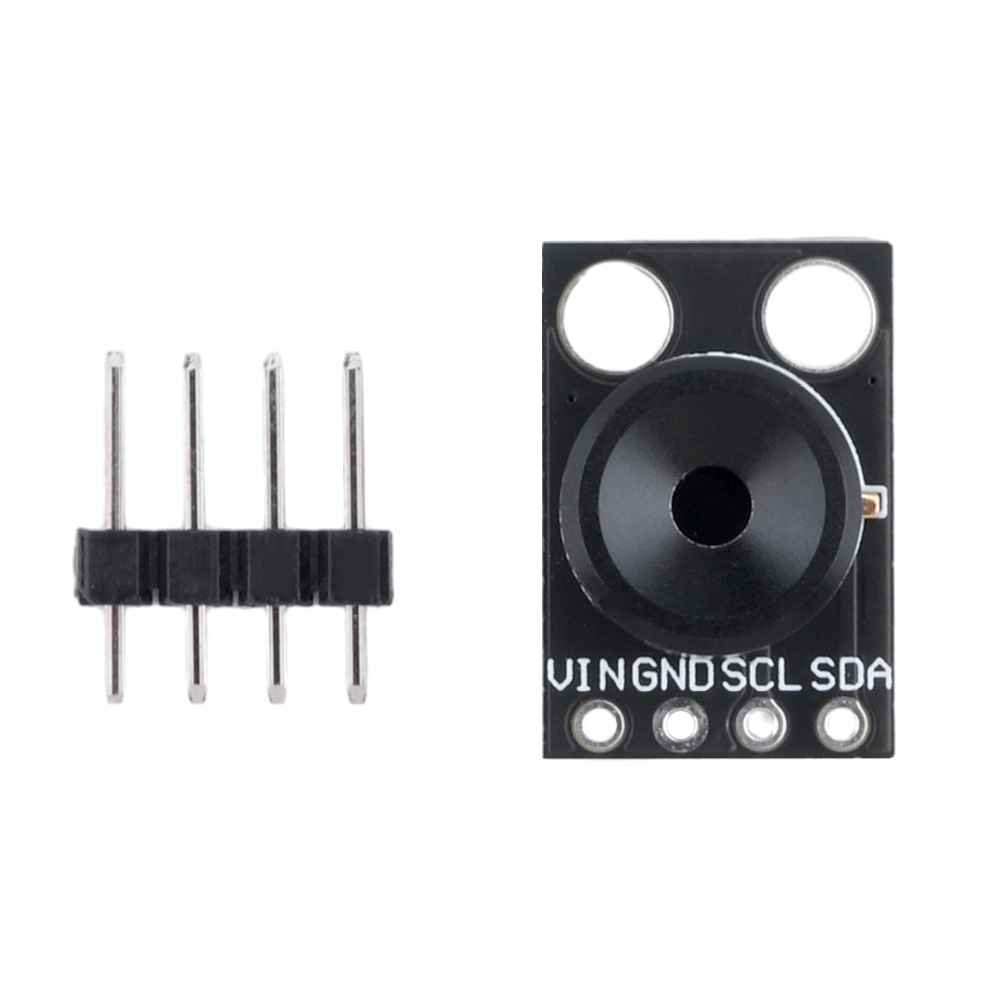

SKU1-MLX90640ESF-BAA  module

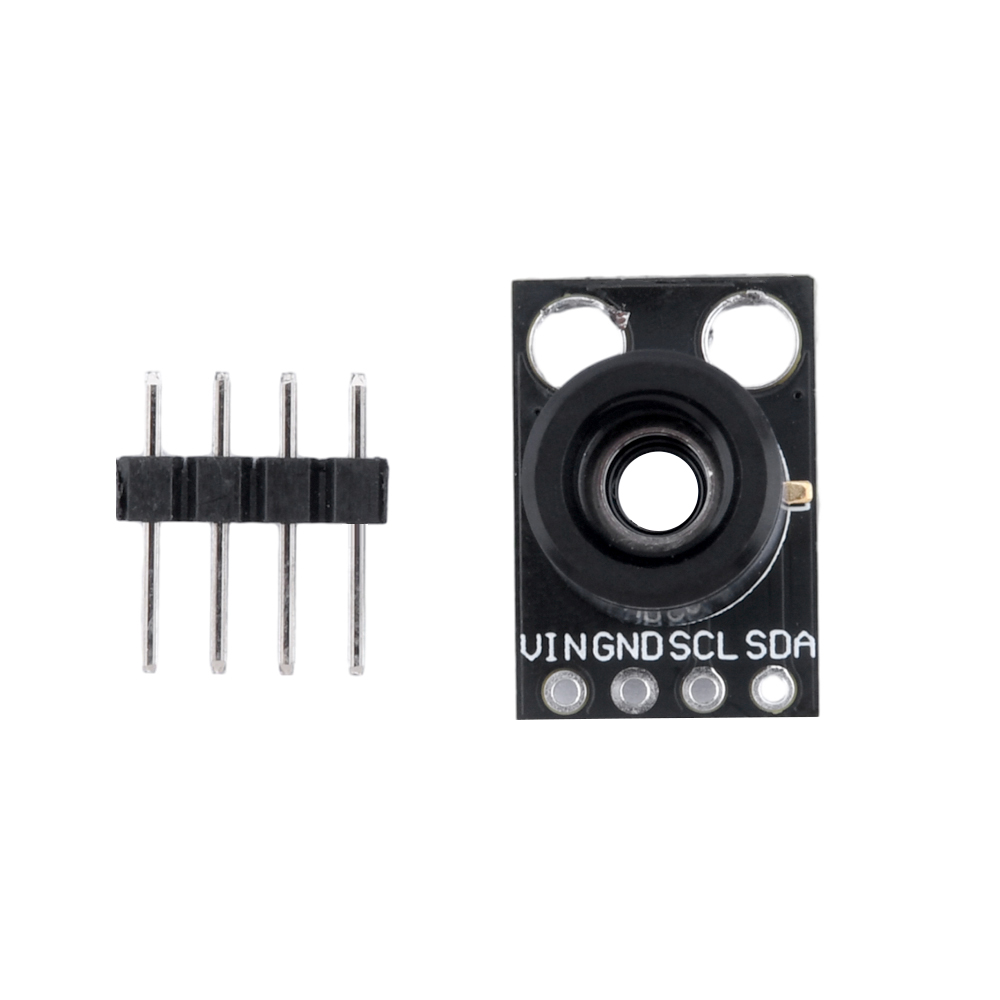

SKU2-MLX90640ESF-BAB  module

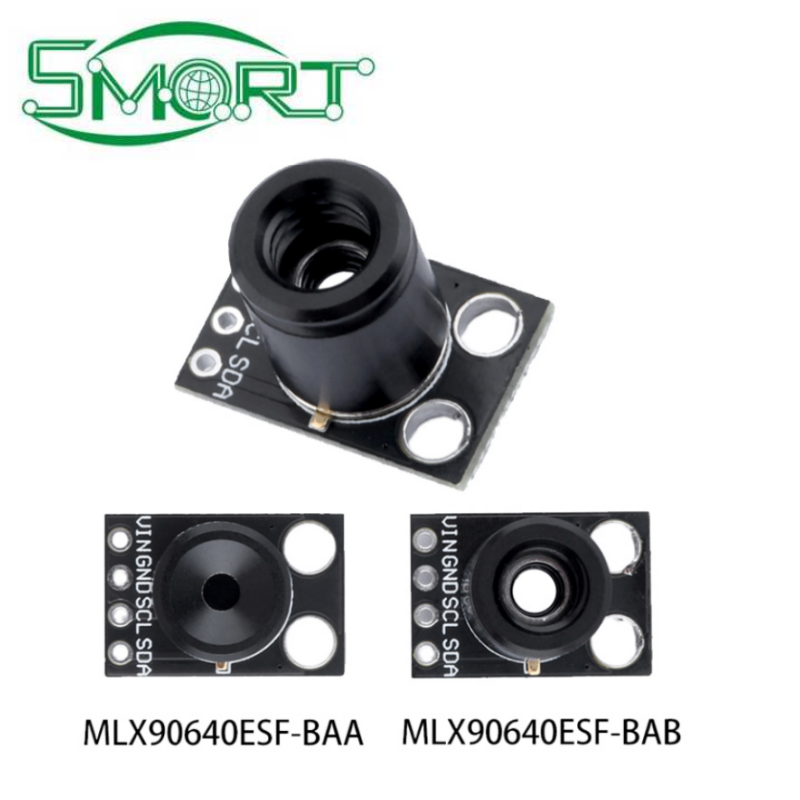

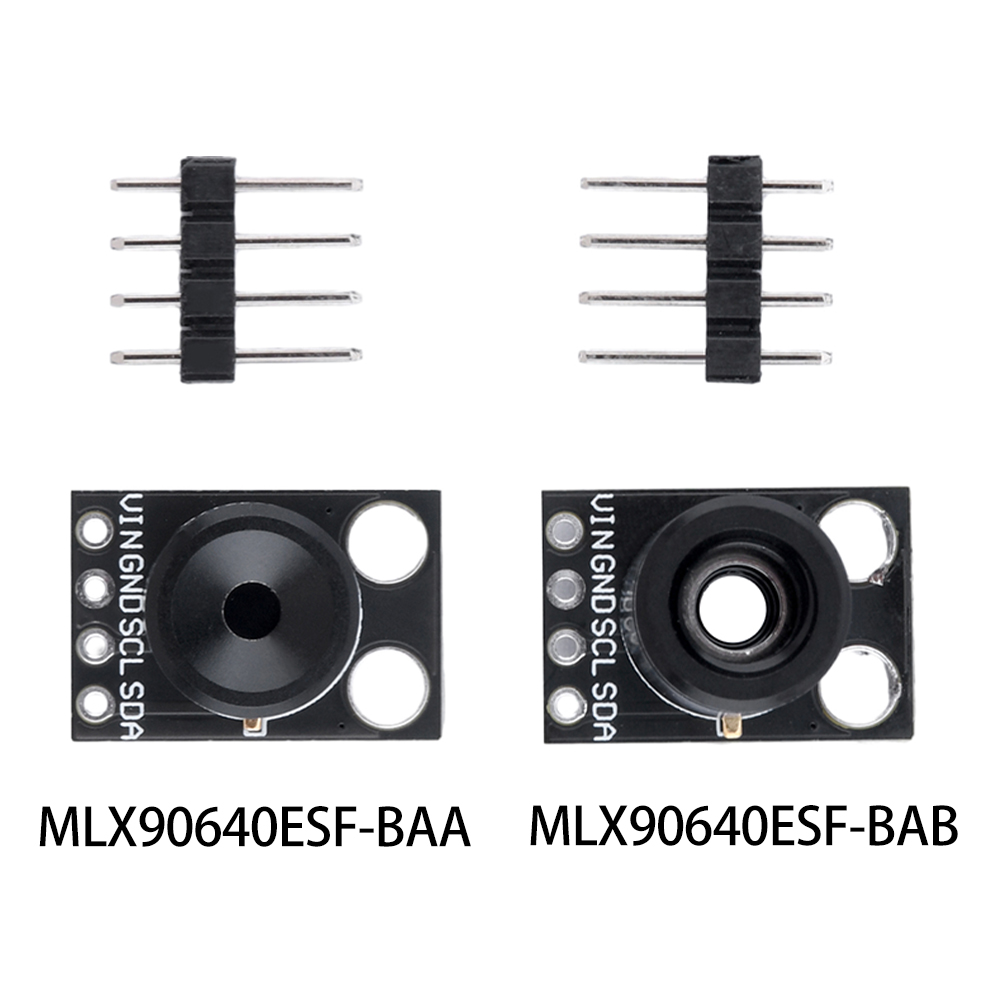

MLX90640BAA field of view 110 * 75 degrees (large angle, suitable for close measurement) MLX90640BAB field of view angle 55 * 35 degrees (small angle, suitable for long-distance measurement)
Absolute accuracy
± 2 ℃ (room temperature 0-50 ℃)
Refresh rate
0.5~64Hz (0.25~32FPS)
Working voltage
3.3-5 V
Working current
<23mA

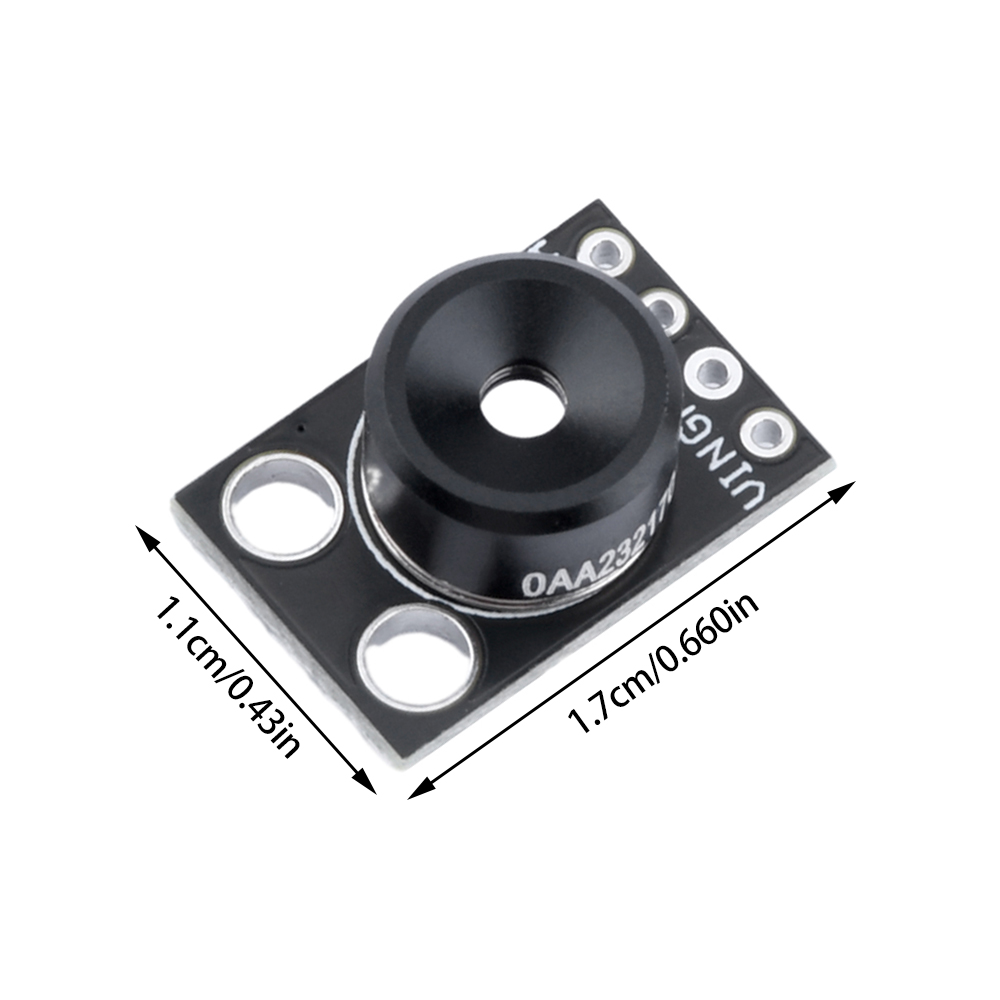

Fixed hole size
2.0mm
Environmental temperature
-40 °~85 °C
Target temperature measurement range
-40 ° C~125 ° C
Communication interface
I2C (default 0x33)
