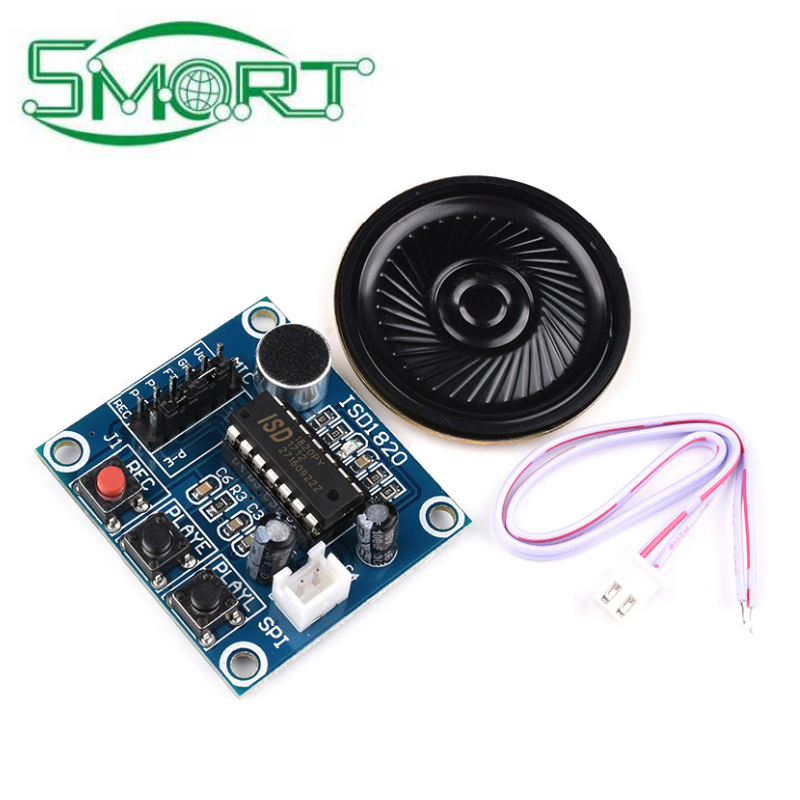

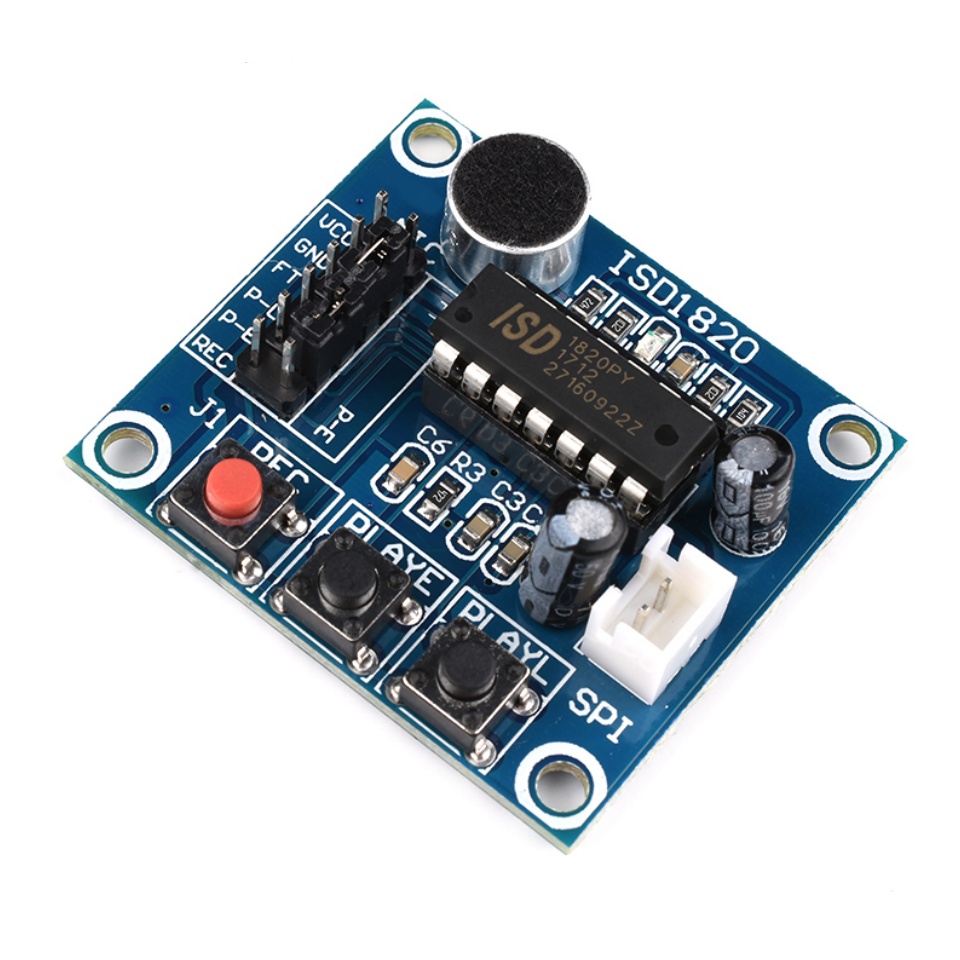

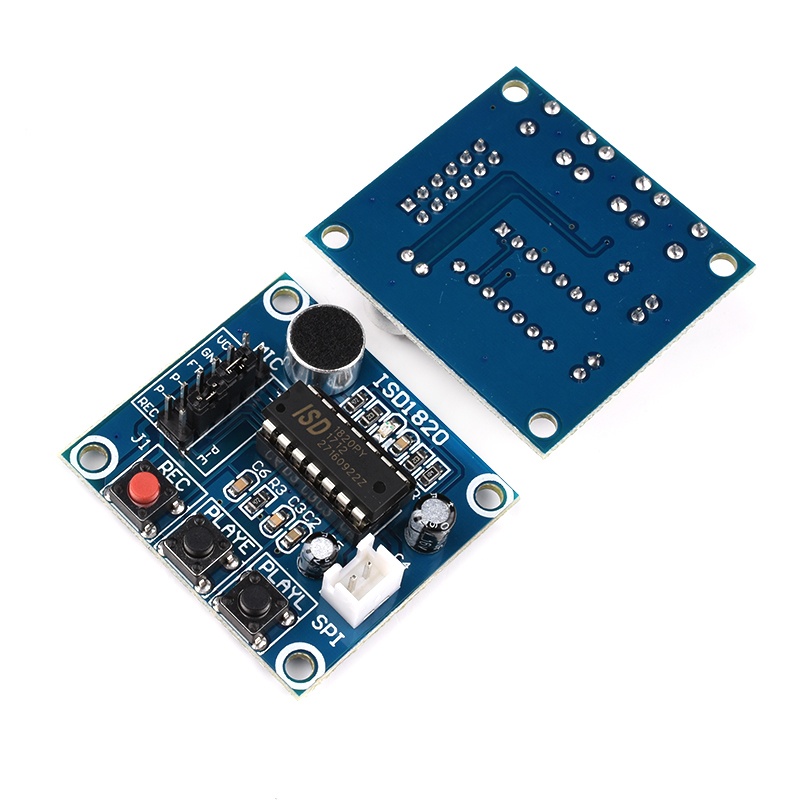

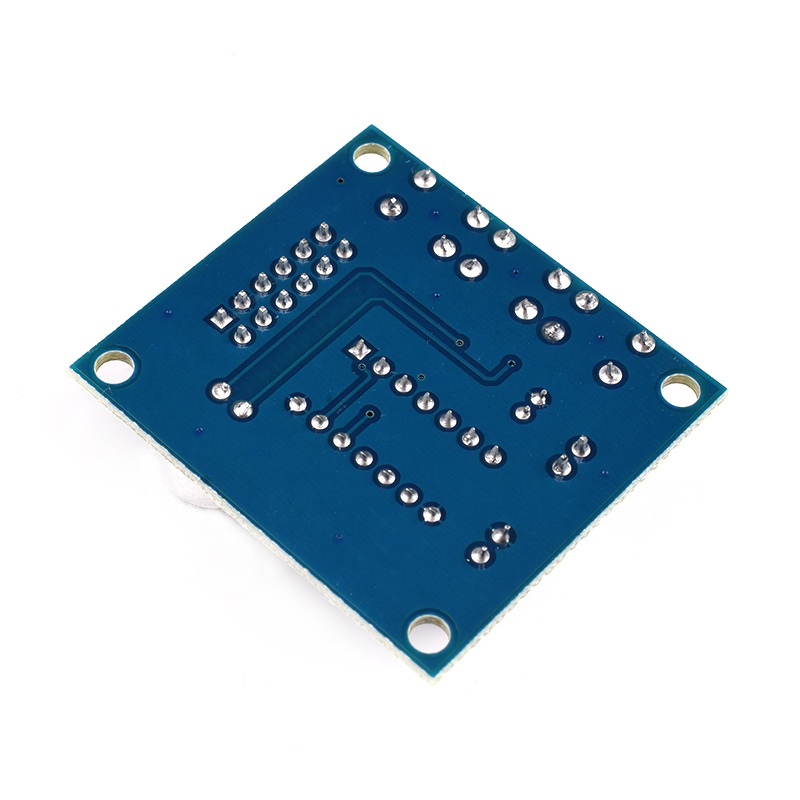

Recording voice module ISD1820 Recording and playback voice module board with microphone and 0.5W speaker

Products > Module > Recording voice module ISD1820 Recording and playback voice module board with microphone and 0.5W speaker

Recording voice module ISD1820 Recording and playback voice module board with microphone and 0.5W speaker

shared：

Products Description

1、 Main chip: ISD1820 2、 Size: 38mm * 42.5mm 3、 Working voltage: DC 3-5 V 4、 Main features 1. Convenient 10 second voice recording and playback 2. High quality and natural speech restoration 3. Can be used as a speaker module 4. With loop playback, click playback, and single pass playback functions 5. Can be controlled by a microcontroller 6. This module can directly drive the 8 ohm 0.5W small horn Power supply: 3-5 V, can be connected to the pin for power supply; Recording and playback control method: button control or microcontroller, control line IO has been led out; Button control recording and playback operation method: REC key: Record button, press and hold to record, release button to stop recording; RLAYE key: Trigger mode playback, press once to play the current entire voice segment; PLAYL key: Play in jog mode, hold down to play, release to stop playing RPL jumper: loop playback mode control, can loop playback FT jumper: Direct control, allowing the microphone voice to be directly connected to the speaker for playback;

Product Display

Shipping

FAQ

Q1: MOQ? Can I just buy 1 piece?
A1: There is no MOQ in Smart.We are able to handle Small as well as large volume production with flexibility. 1 piecs is OK ,as long as you can accept the sample price
Q2: What is your Lead time?
A2: Lead time is usually punctual here, usually 3-7days for sample, 10-15 days for mass production. For some special situation,we can also advise customer in advance to avoid any inexpectation or loss at customer side.
Q3: What's the best price you can offer?
A3: It depends on the quantity you order. The more quantity ordered, the more favorable the price will be. Both new and existing customers will enjoy corresponding discounts.Anything can be negotiated, so feel free to consult us if you have any questions.
Q4: Besides this product, what other products can you offer?
A4: We offer one-stop service for PCB/PCBA/FPC/Clone boards/stencil/membrane switch and complete components sourcing( Modules, Cable, Sensors, NTC, Aluminum heatsink, Water block,Copper tube,LCD,LED,Switches and Connectors etc.) with a wide range, good quality and reasonable prices according to your need.
Q5: Do you have any relevant certificates for this product?
A5: Yes. Our certificates are complete. If you need them, please contact our salesperson.
