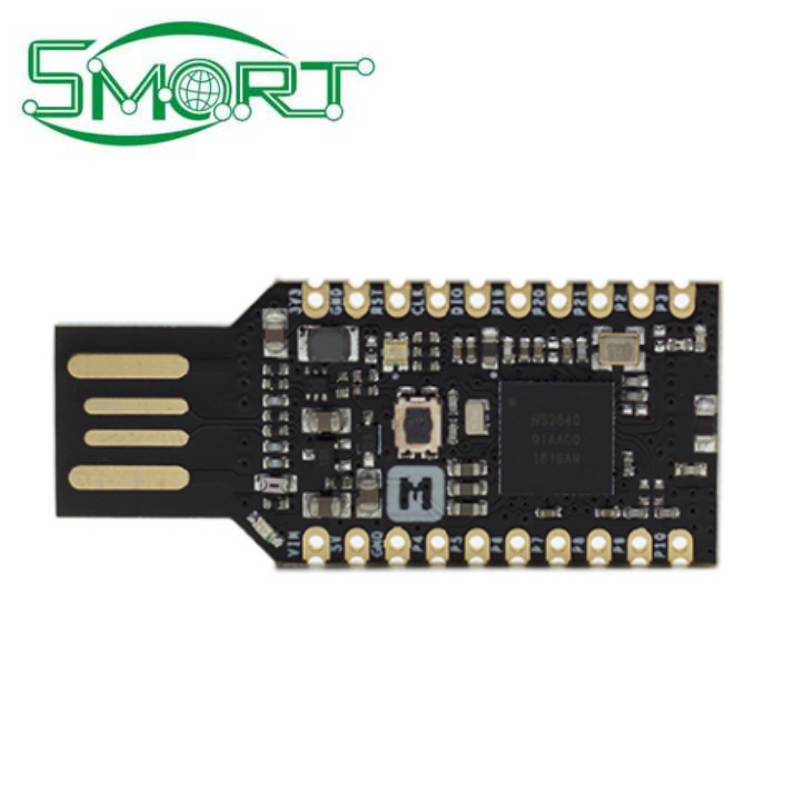

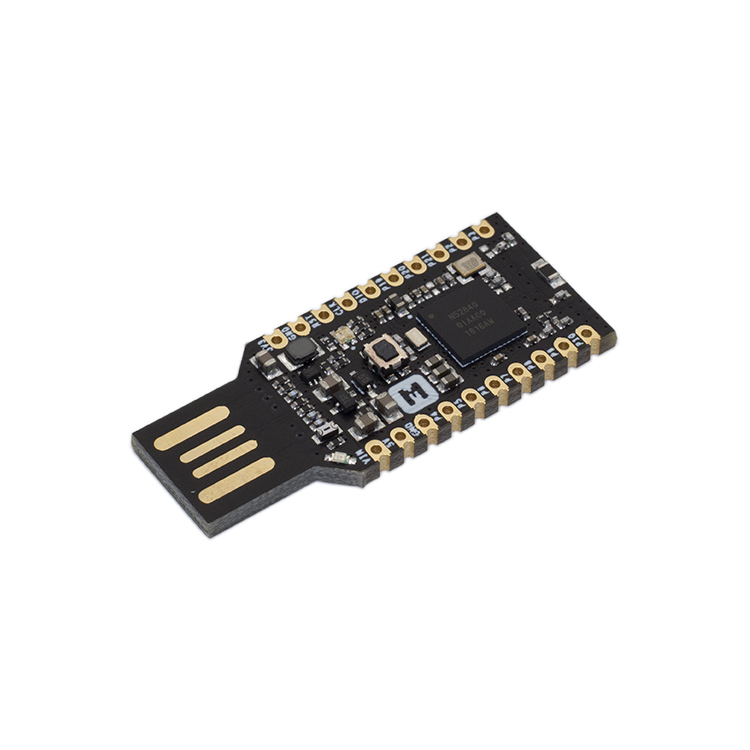

NRF52840 USB Dongle development kit supports Blue-tooth 5/Thread/802.15.4
shared:
Products Description
Technical Parameter
Main control chip
-Nordic high-end system-level chip nRF52840
-ARM ®Cortex®-M4F core
-1 MB FLASH, 256 KB RAM
-Supports Bluetooth5, Bluetooth Mesh,
-Thread, lEEE802.15.4, AMT, etc.
-On-chip NFC-A tag
-USB2.0 device controller
-ARM Trustzone® CryptocelL 310 encryption subsystem
Peripheral
- Up to 12 programmable GPIPs
- Rich interfaces: USB, QSPI, NFC, I2S, SPI, TWI, UART, PWM, PDM,
--ADC, comparator, etc.
- User programmable buttons, RGB LED
- Plug and play USB Type-A interface
RF
-Bluetooth5, IEEE802.15.4, 2.4GHz transceiver
-Onboard 2.4G chip antenna
-Built-in power amplifier, maximum output power up to 8dBm
Power supply
-High efficiency, low quiescent current 33V regulator
-1A peak current output
-VBUS & VIN power path management
Dimensions
-Small size 42mmx18mmx4mm (without soldered pin headers)
-2.54mm standard pin spacing, can be directly installed on a breadboard
