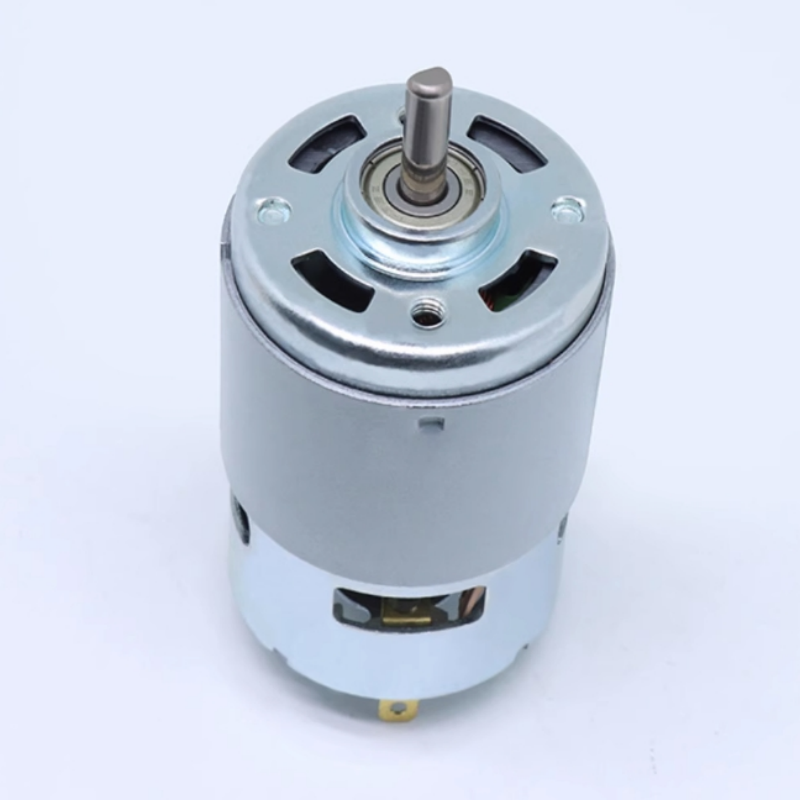

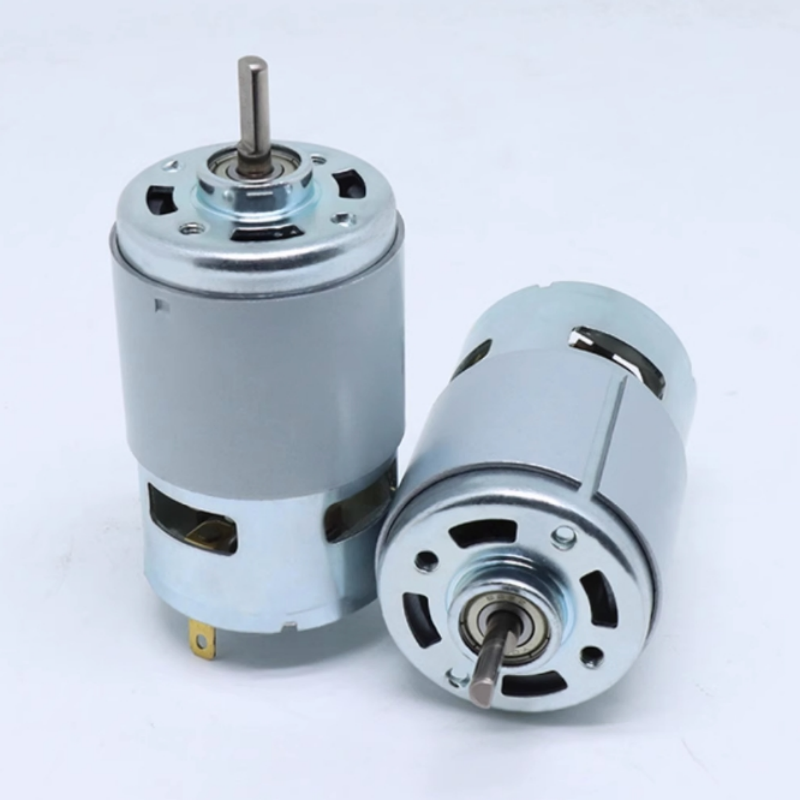

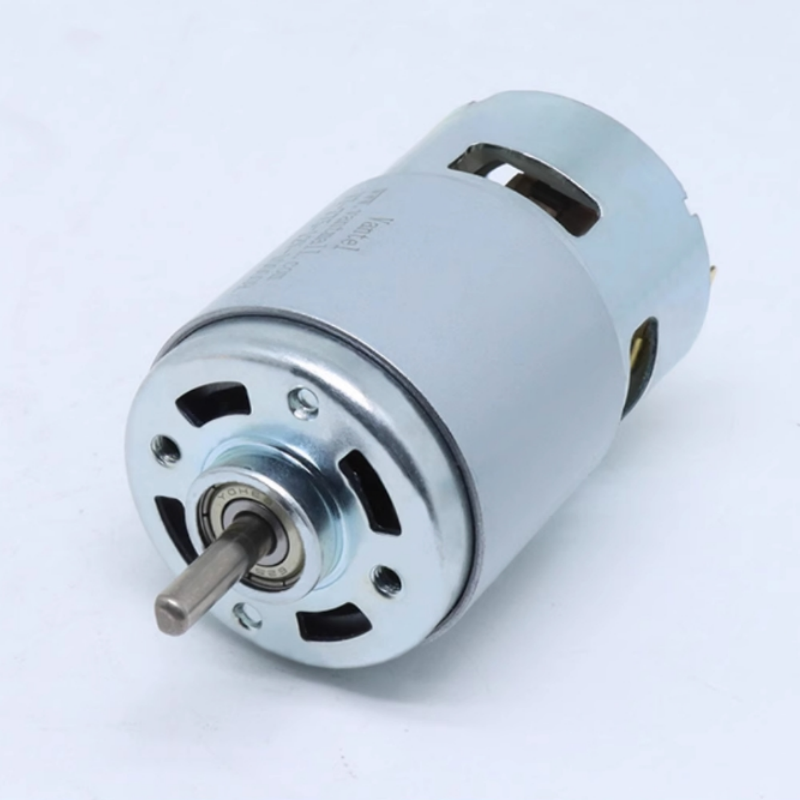

Smart Electronics 775 DC Motor 12V 24V High RPM 6000-20000 RPM Ball Bearing Large Torque High Power Low Noise

shared：
Product Name
DC High Speed Motor
Part Number
775 dc motor
RPM
6000--20000 RPM
Voltage - Rated
12V/24V
Features
Large Torque High Power Low Noise
Size / Dimension
44*66mm
Power
30W
Current
0.5A
Continuous rotation life
1000 hours
Output shaft size
diameter 5 * 17.5mm
Speed regulation method
PWM/stepless speed regulation
Maximum torque
0 6kgf.cm

sku1-single motor sku2-Motor + bracket sku3-Motor + speed control power supply sku4-Motor + bracket + speed control power supply



DC Motor
755
Speed
Working voltage
Power
Torque
No load current
6000 R
12V
30W
0 6kgf.cm
0.4A
10000 R
12V
30W
0 6kgf.cm
0.4A
12000 R
24V
30W
0 6kgf.cm
0.5A
20000 R
24V
30W
0 6kgf.cm
0.5A

Output Axis Options: D-axis/Circular axis/Double output shaft/775 motor with encoder
