Smart Electronics NTC thermistor thread M6 temperature sensor 304 stainless steel temperature sensing probe 10K 50K 100K 1%

Products > NTC Sensor > Smart Electronics NTC thermistor thread M6 temperature sensor 304 stainless steel temperature sensing probe 10K 50K 100K 1%
    • 1
    • 2
    • 3
    • 4

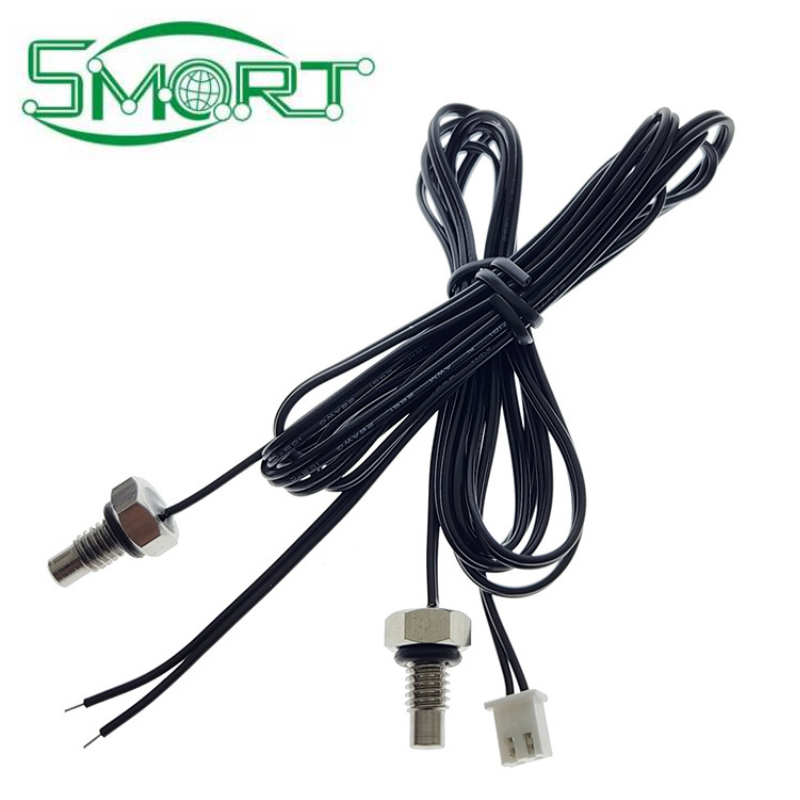

Smart Electronics NTC thermistor thread M6 temperature sensor 304 stainless steel temperature sensing probe 10K 50K 100K 1%

NTC thermistor thread M6 temperature sensor 304 stainless steel temperature sensing probe 10K 50K 100K 1%
shared：

Parameter Specifications

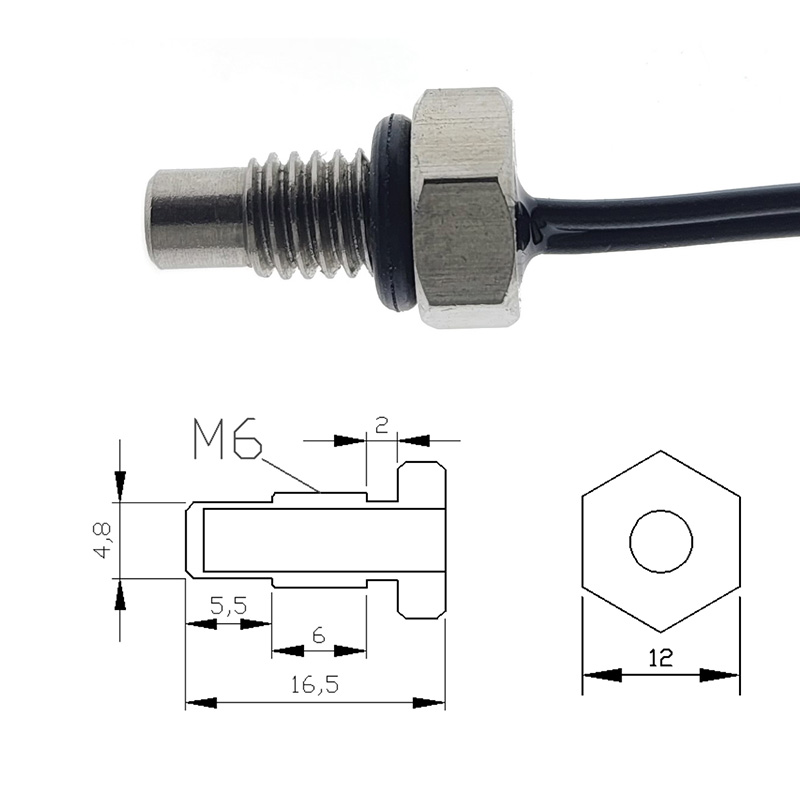

Product Name: M6 Hexagonal Screw Probe Shell material: 304 stainless steel Installation hole size: M6 screw pitch 1.0 (with rubber ring) Resistance value: 10K Ω 50K Ω 100K Ω Resistance accuracy: ± 1% Resistance B value: 3950 ± 1% 3435 ± 1% 3380 ± 1% Temperature measurement range: -50 ℃ -125 ℃ Wire specification: UL2651 26AWG PVC black double parallel wire with temperature resistance of 105 ℃ Wire length: 1 meter=100CM (length has positive and negative tolerances)

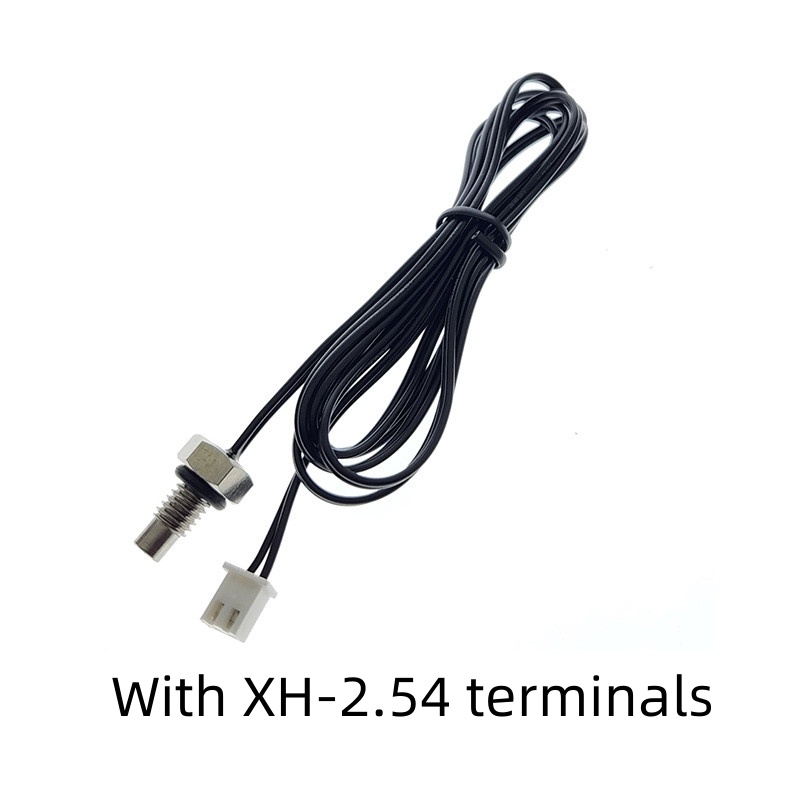

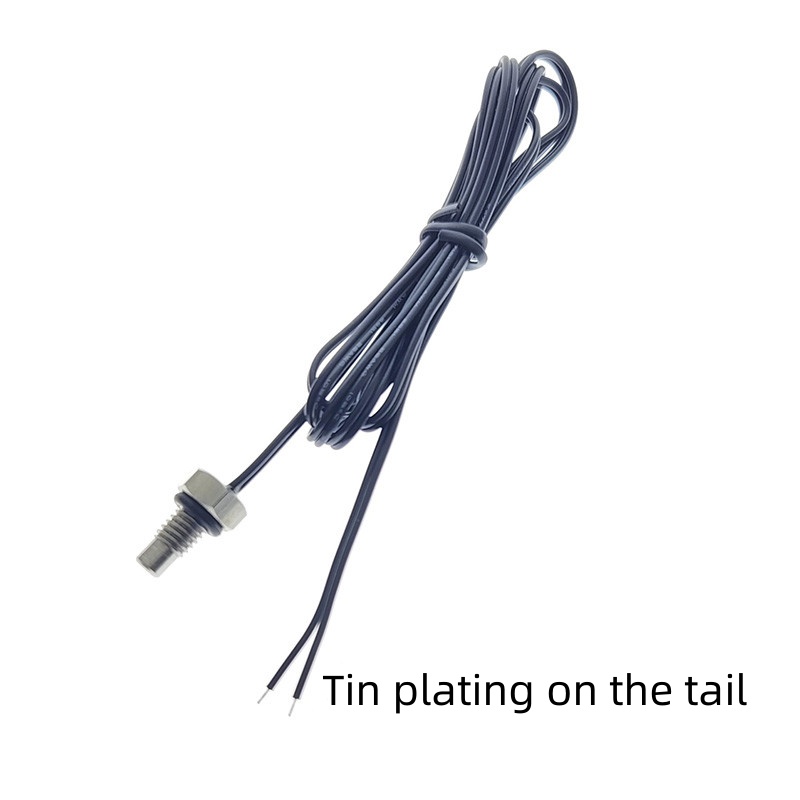

Wire tail: with XH2.54-2P terminals/tail tin plated 3-4 mm [optional]
