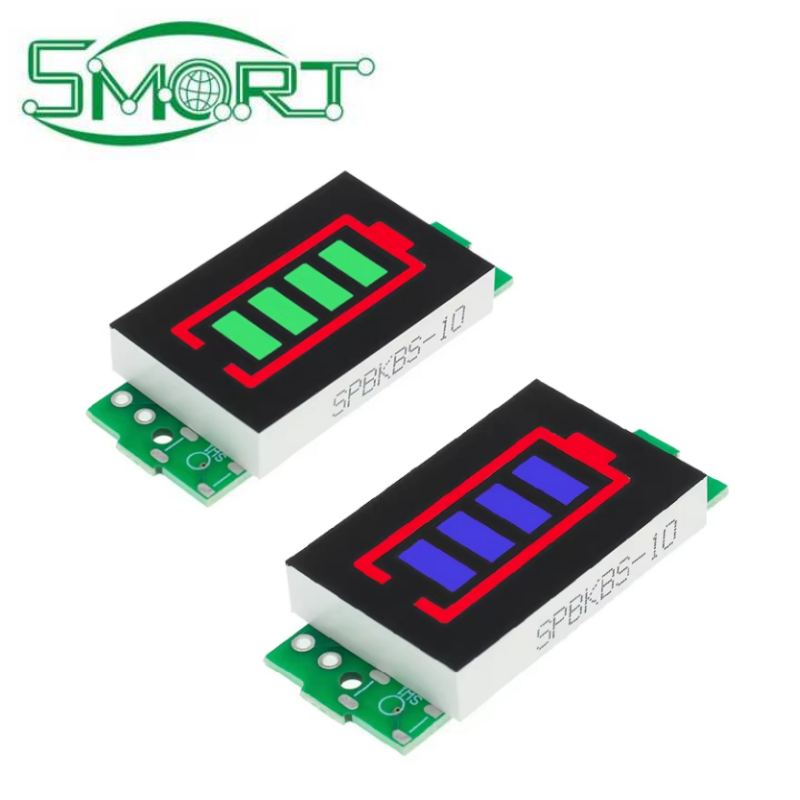

Smart Electronics 1/2/3/4/6/7/8S lithium battery power meter display module triple string LED lithium battery indicator module

Products > LED/LCD Module > Smart Electronics 1/2/3/4/6/7/8S lithium battery power meter display module triple string LED lithium battery indicator module

Smart Electronics 1/2/3/4/6/7/8S lithium battery power meter display module triple string LED lithium battery indicator module

1/2/3/4/6/7/8S lithium battery power meter display module triple string LED lithium battery indicator module

shared：

Features:
1.Battery type electricity quantity display
2.Wide application fields:lithium battery
3.Using Method:connect display board positive and negative port with tested battery positive
and negative port,digital tube will display real-time battery electricity quantity
4.Digital Color:outline red,display block blue (when battery electricity quantity is full,
it will be all on)

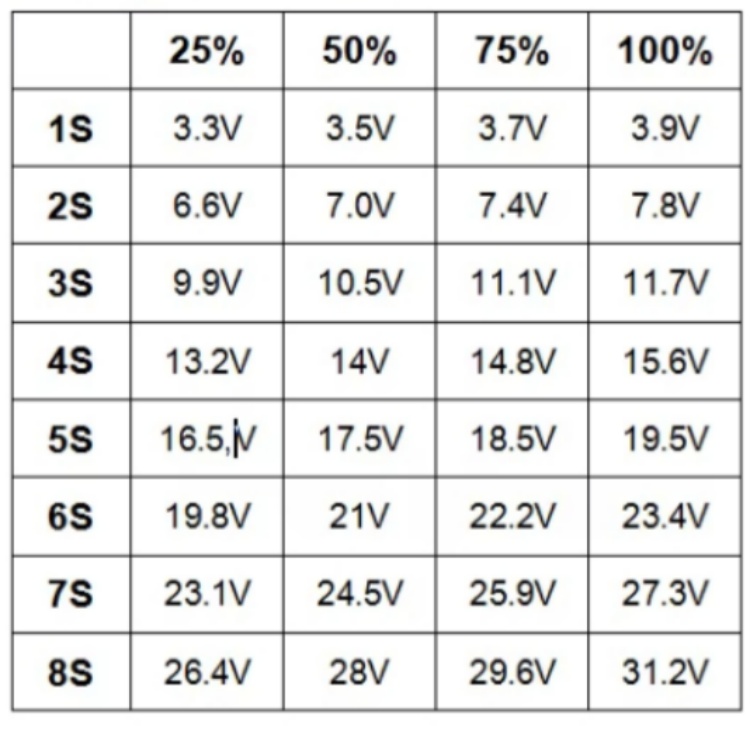

Display Electricity Quantity Parameter:
1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity(note:N represents battery quantity) 2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity

3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity

4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery
