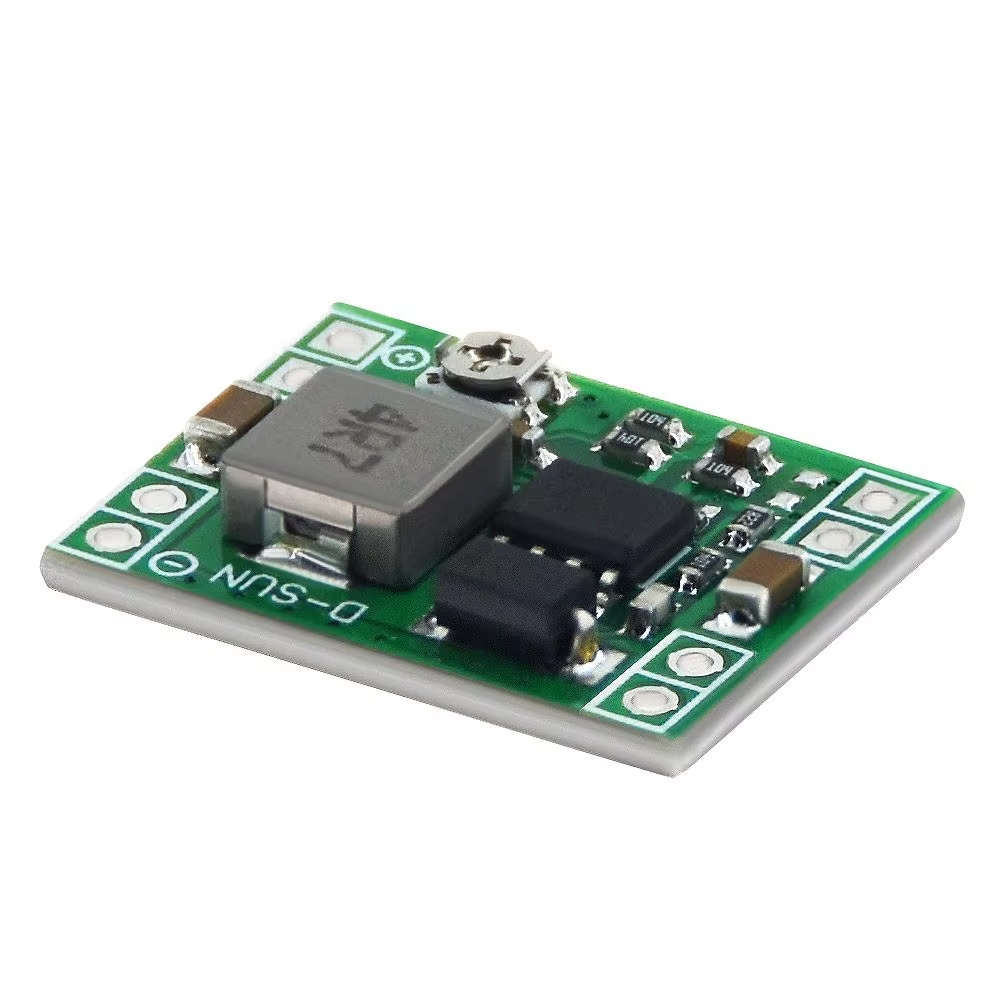

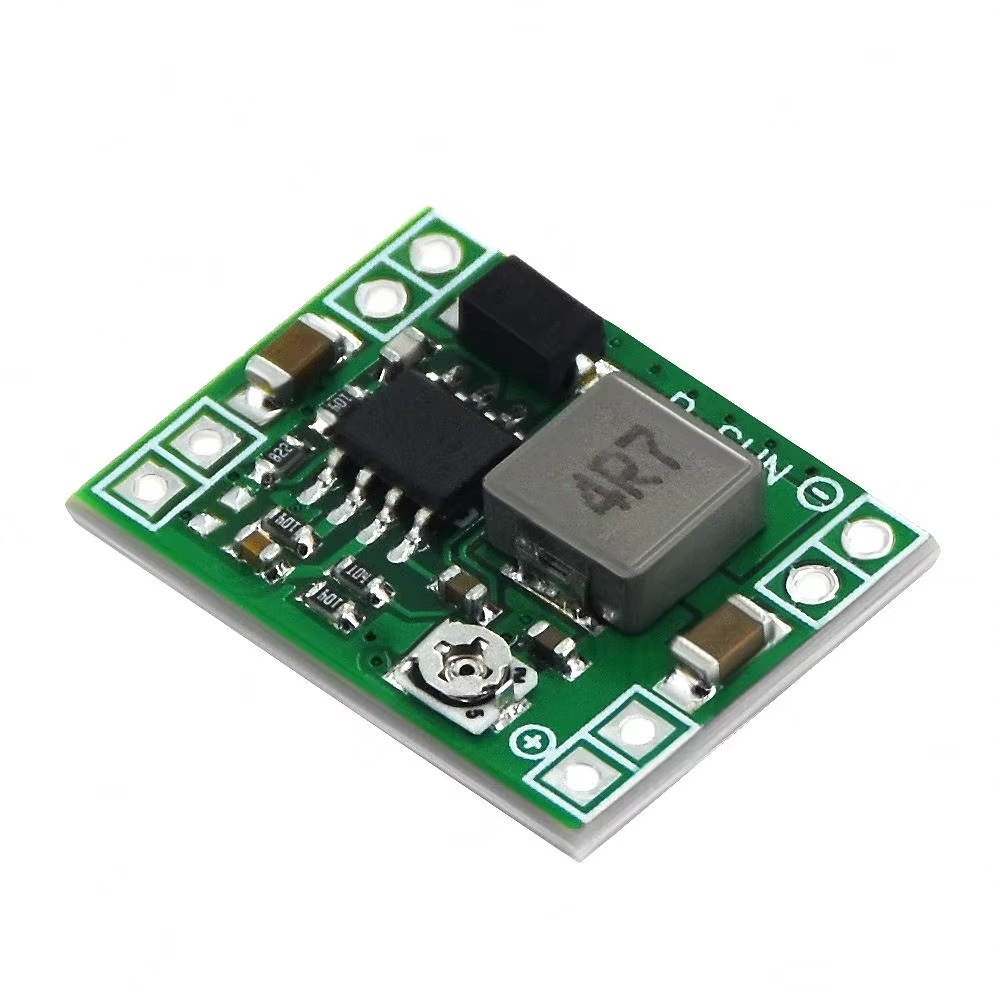

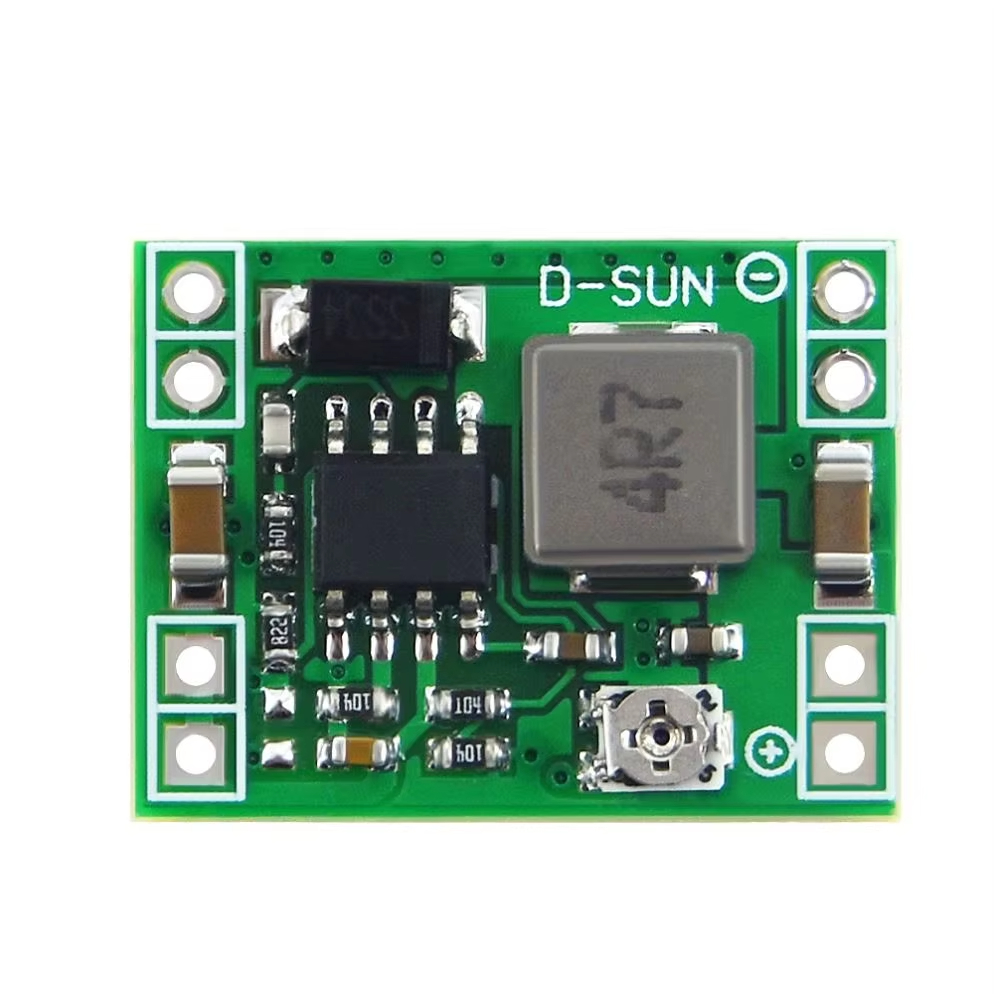

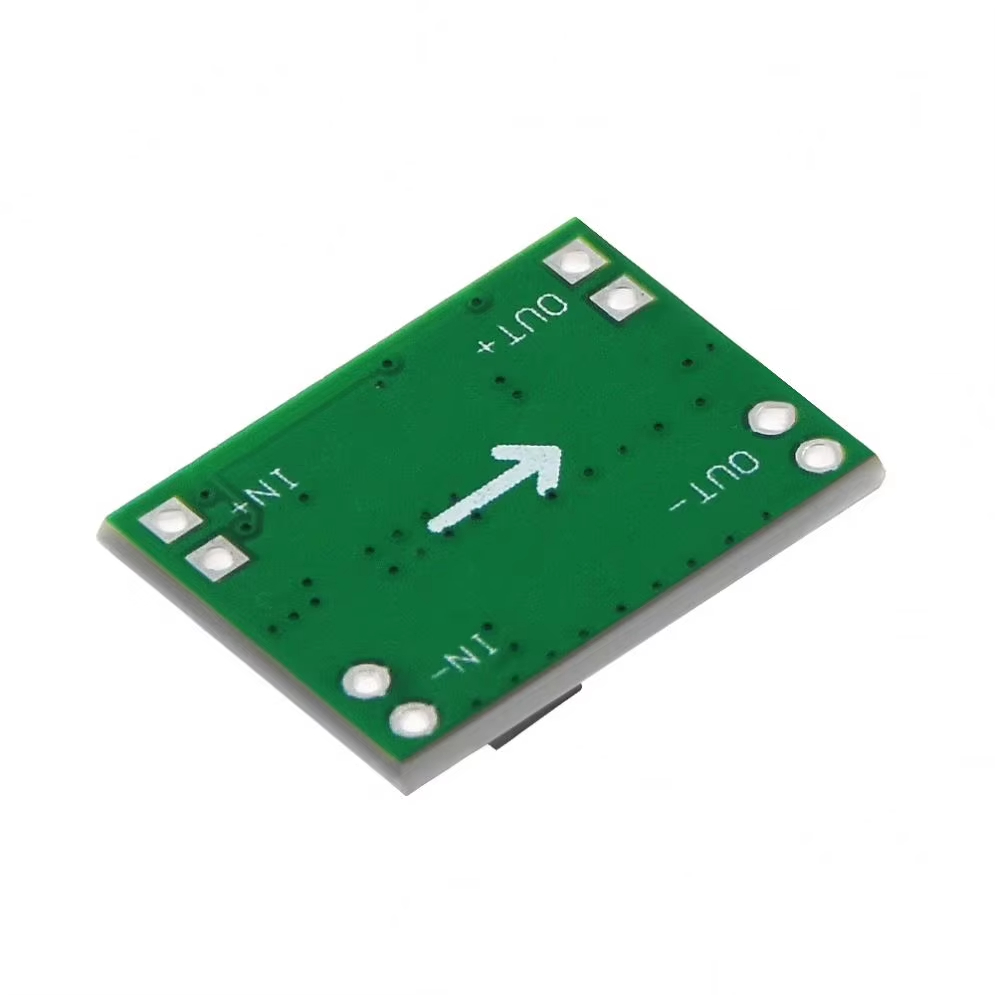

Smart Electronics Ultra-Small Size DC-DC Step Down Power Supply Module 3A Adjustable Buck Converter for Replace LM2596

Ultra-Small Size DC-DC Step Down Power Supply Module 3A Adjustable Buck Converter for Replace LM2596
shared：
Model Name
Ultra-small DC-DC step-down module
Input voltage
4.5-28V
Output voltage
0.8-20V
Output current
rated current 3A (MAX)
Switching frequency
1.5 MHz (highest), typical 1 MHz
Output ripple
30mV
efficiency
96% (max)
Operating temperature
-40 Celsius to + 85 Celsius
size
22mm * 17mm * 4mm
