Smart Electronics High Quality Cubieboard4 CC-A80, manufacturing mini PC

High Quality Cubieboard4 CC-A80, manufacturing mini PC


Here comes the Cubieboard4, also called CC-A80. It features an Allwinner A80 Octa-Core
​processor with high performance far beyond A10, A20.
shared：


Overview

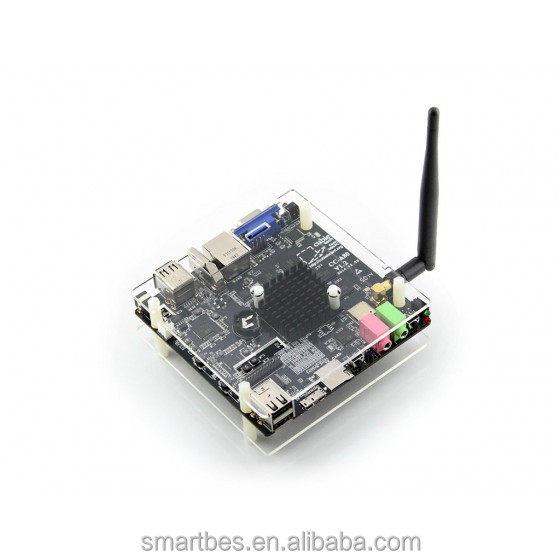

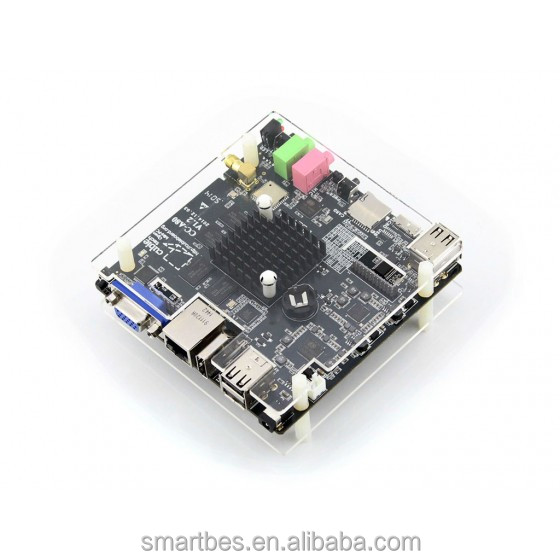

Here comes the Cubieboard4, also called CC-A80. It features an Allwinner A80 Octa-Core
processor with high performance far beyond A10, A20.

What's On Board

Smart Electronics High Quality Cubieboard4 CC-A80, manufacturing mini PC

  1. Processor : Allwinner A80, Octa-Core big-LITTLE A15/A7,28nm

    • CPU : Arm Cortex A15x4 up to 2.0GHz, A7x4 up to 1.3GHz

    • GPU : PowerVR 64-core G6230

  2. DDR3 2GB

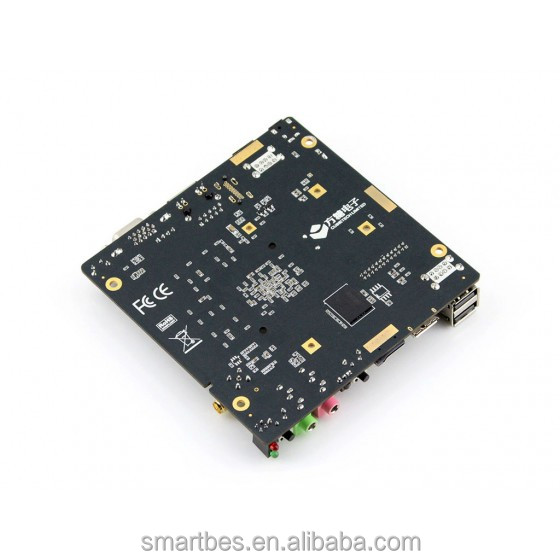

  3. 8GB eMMC Flash (bottom side)

  4. USB 2.0 x 4

  5. Expansion IO header

  6. USB 3.0 OTG

  7. RTC battery holder

  8. TF slot

  9. Power button

  10. IR receiver

  11. Mic input jack

  12. Earphone output jack

  13. WiFi + BT

  14. Reset button

  15. LED x 2

  16. External antenna connector

  17. Key for flashing

  18. VGA interface

  19. Gigabit Ethernet connector

  20. DMI interface

  21. Power jack

  22. External lithium battery interfere
