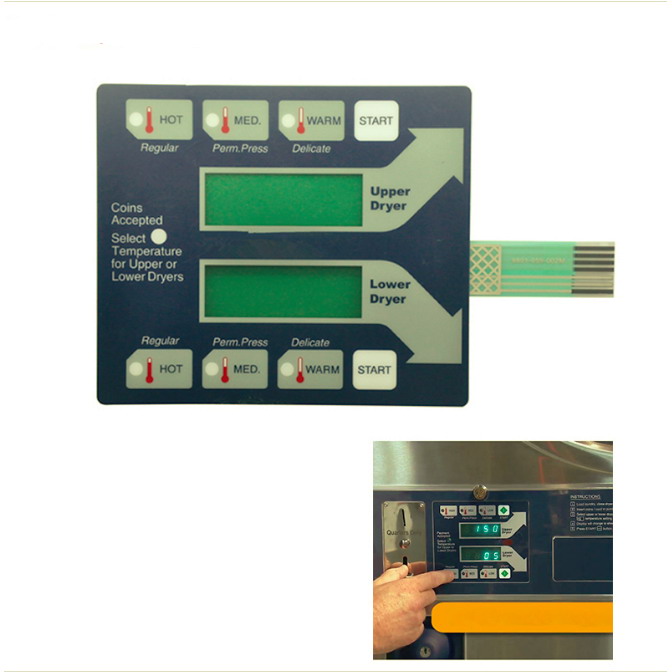

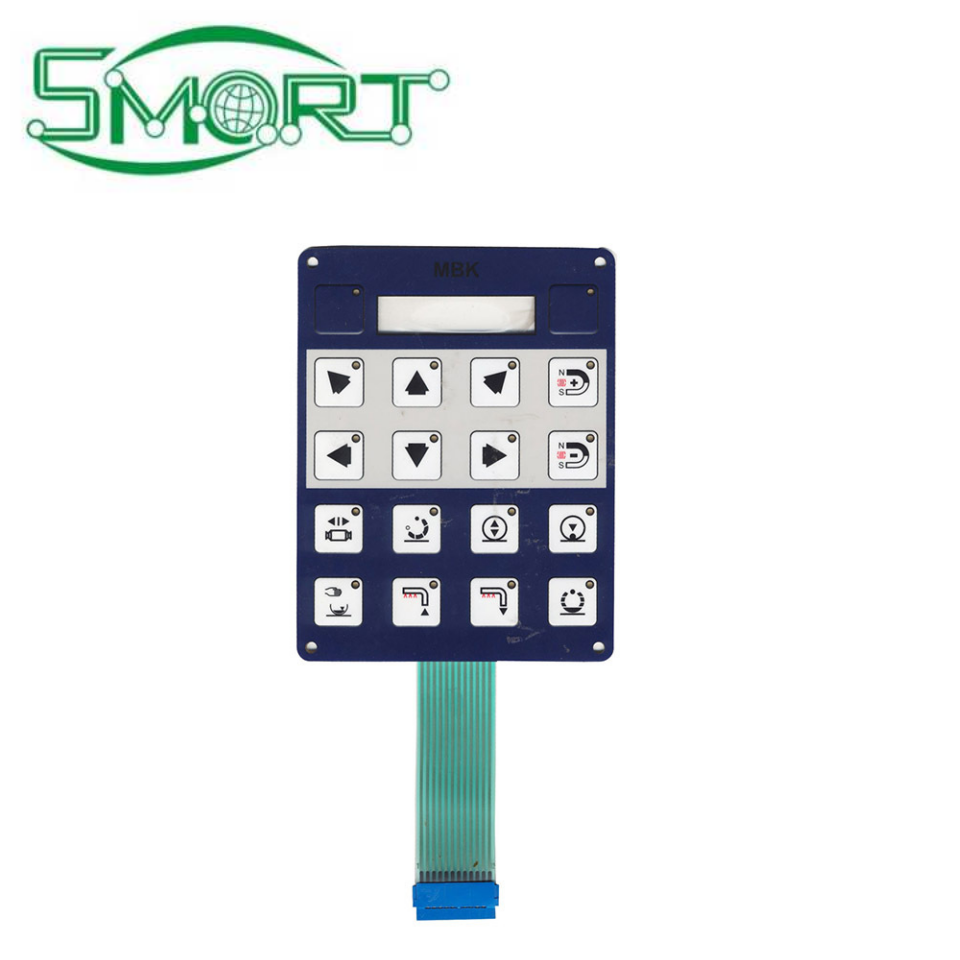

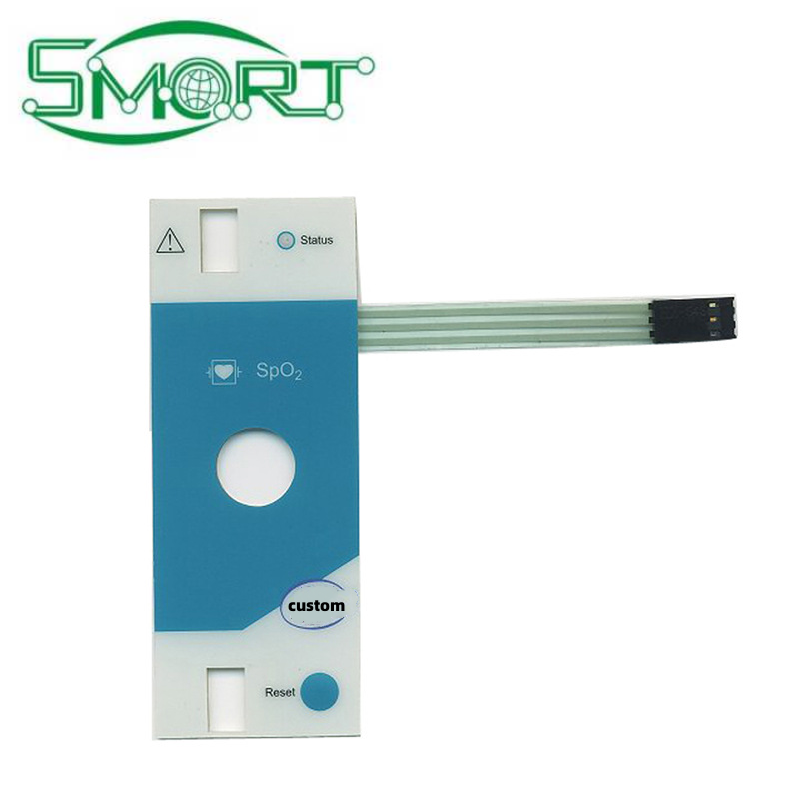

Custom CNC Membrane Keypad Push Button Membrane Switch with 3M Adhesive

Technology Capability

1.Material : Polycarbonate/PET/PVC/Rubber/Glass
2.Matt/Glossy Surface
3.With/Without Embossing Metal dome
4.Assembly LED/FFC Cable
5.Clear/Transparent/Color Window
6.Adhesive:3M 467, 468, 9448A etc7.Connector:1.0mm pitch, 2.54mm pitch
shared：

Product Description

Membrane keyboard manufacturers

Smart has rich experience on Membrane Keyboard industry over 8 years.

A membrane keyboard is a computer keyboard whose “keys” are not separate, moving parts, as with the majority of other keyboards,but rather are pressure pads that have only outlines and symbols printed on a flat, flexible surface. Very little, if any ,tactile feedback is felt when using such a keyboard and error-free blind typing is difficult.

Membrane keyboards work with electrical contact between the keyboard surface and the underlying circuits when key-top areas are pressed.

For the Modern PC keyboards, they re essentially a membrane keyboard mechanism covered with an array of dome switches which give positive tactile feedback.
Art
Ordinary Material

Graphic Overlay

 Finish
Specification
PC
Gloss
0.175/.25/.35/.5 mm thickness
 Matt
0.175/.25/.35/.5 mm thickness
PET
Fine Texture
0.15/.20 mm thickness
Valet Texture
0.15/.20 mm thickness
Gloss with Hard Coat
0.18 mm thickness
Top Adhesive
 PET Double-sided Tape

0.10/.125mm
Paper Double-sided Tape

0.10mm
 Transfer Tape

0.06/.12mm
 Retainer
PET
 Gloss
 0.125mm
 Spacer
 PET Double-sided Tape

 0.225/.275mm
 Circuit Layer
PET
 Gloss
0.125mm
Rear Adhesive
Paper Double-sided Tape

 0.10mm
Transfer Tape

0.06/.12mm
Connector
 Pin

Metal,Male/Female 2.54mm
 House

Female,2.54mm
Conductive Layer
 Silver Paste

 Acheson ELECTRODA 820B
 Carbon Paste

 Acheson ELECTRODA 423SS
 Insulation Ink

 Acheson ELECTRODA 452SS
Electrical Performances
Wire Resistance
0.5mm width,<1Ω/cm
Rated Current
25-100mA,0-30V DC
Insulation Resistance
>100MΩ 250V DC
Working Voltage
<50V DC
Non-tactile Switch
0.1-0.4mm
Tactile Switch
0.4-1.0mm
Working Life
>1 million times
Working Temperature
-40℃-70℃
Working Humidity
40℃,98%RH No Influence
Substrate Voltage
1500V DC
Feed backTime
10ms
Tail Folding
R>1,180
