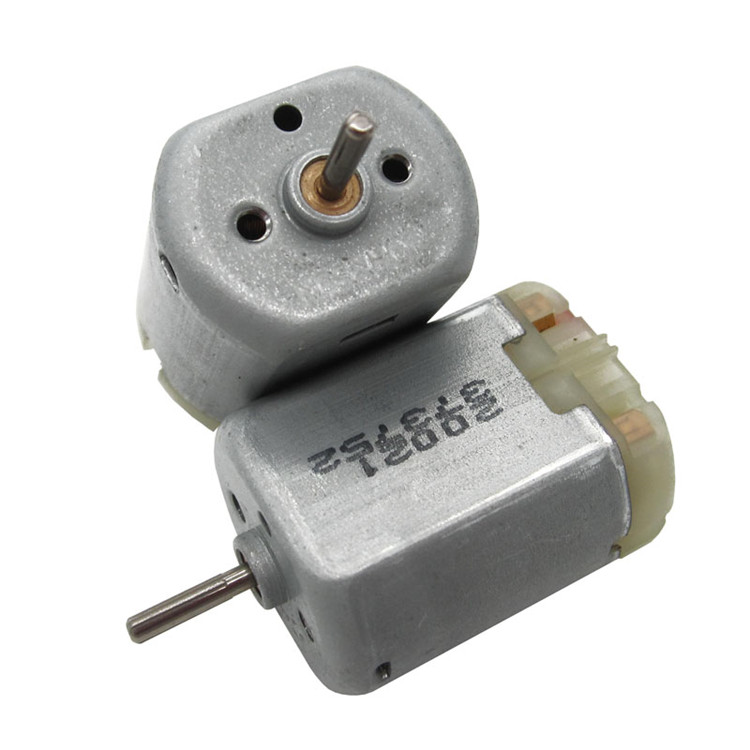

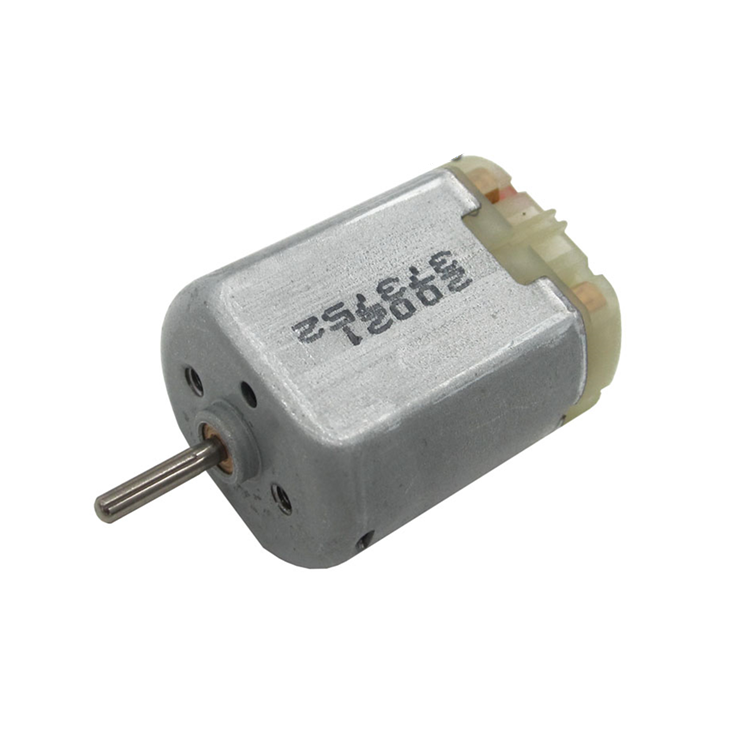

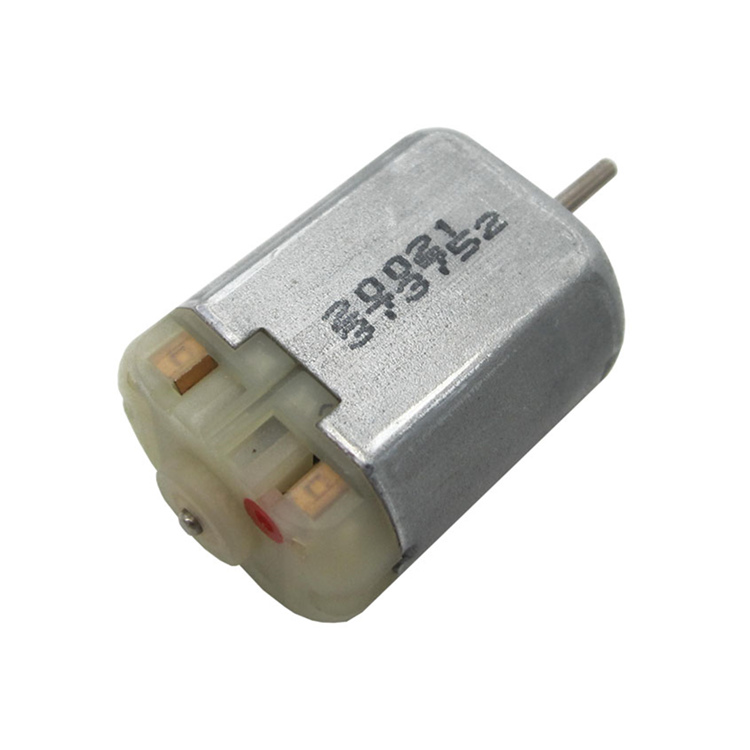

FC280SC-20150 DC micro motor 12V door lock flat carbon brush car central control motor

Model: FC280SC-20150

Dimensions: 30.6 mm*18.3 mm*24 mm

Diameter axis: 2 mm

Weight: 39.2 grams

Voltage range: 6V-18V

Rated voltage: 12V
shared：

Model: FC280SC-20150

Dimensions: 30.6 mm*18.3 mm*24 mm

Diameter axis: 2 mm

Weight: 39.2 grams

Voltage range: 6V-18V

Rated voltage: 12V



Voltagecurrentspeed (no load)
 6.0 V78 ma6000 rpm
12.0 V95 ma12000 rpm
18.0 V115 ma 18000 rpm
