Smart Electronics SMD 5730 5630 LED circuit board Aluminum PCB

SMD 5730 5630 LED circuit board Aluminum PCB

shared：

Smart Electronics SMD 5730 5630 LED circuit board Aluminum PCB

5730 parameters:

Lamp bead power:Single grain 0.5W
Single lumen 50-60LM
Single power supply 150ma
Lamp beads voltage 3.2-3.5V

Color temperature:
White light: 6000-6500K
Warm white light: 3000-3200K

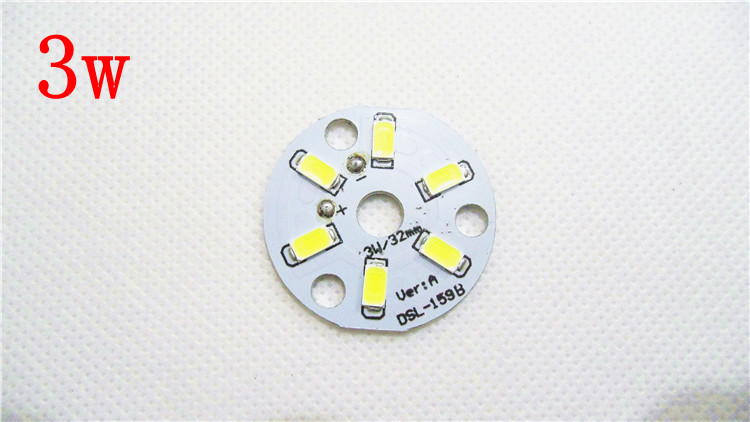

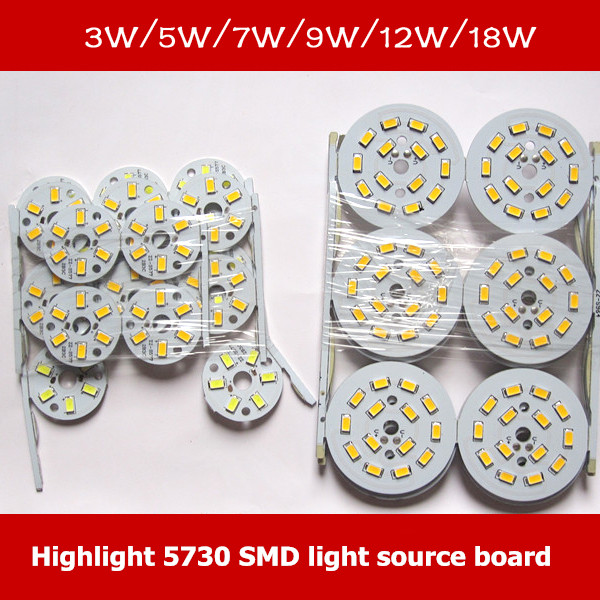

Dimensions:3W lamp board: φ32mm×1.4mm 6 pcs 5730 lamp beads 3 strings 2 parallel 300-360LM
5W lamp board: φ50mm×1.4mm 10 pcs of 5730 lamp beads 5 strings 2 parallel 500-600LM

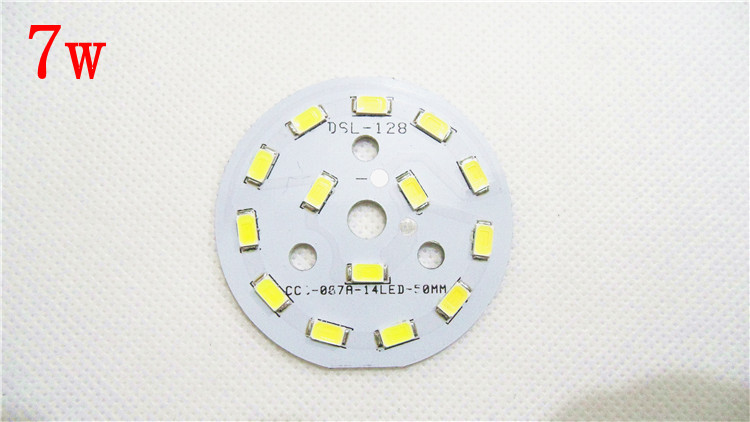

7W lamp board: φ50mm×1.4mm 14 pcs 5730 lamp beads 7 series 2 parallel 700-840LM

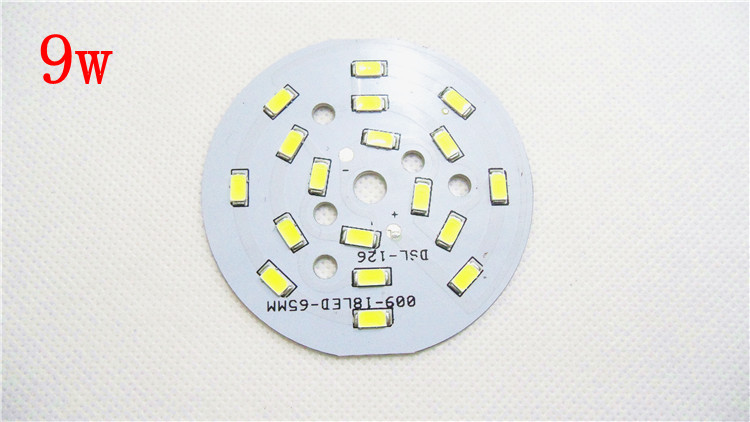

9W light board: φ65mm×1.4mm 18 pcs of 5730 lights, 9 series and 2 parallel 900-1080LM

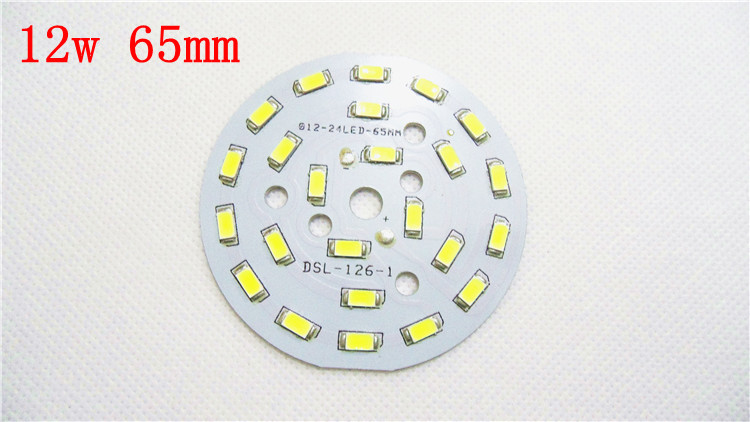

12W lamp board: φ65mm×1.4mm 24 pcs of 5730 lamp beads, 12 series and 2 parallel 1200-1440LM
12W lamp board: φ85mm×1.4mm 24 pcs 5730 lamp beads 12 series 2 parallel 1200-1440LM
15W lamp board: φ100mm×1.4mm 30 pcs of 5730 lamp beads 15 series 2 parallel 1500-1800LM
18W lamp board: φ100mm×1.4mm 36pcs 5730 lamp beads 18 series 2 parallel 1800-2160LMThe diameter of each hole of the PCB light board is the same as that of the high-power bulb lamp,
and the driving power used is exactly the same as the high-power power supply

Product advantages:

More uniform light emission than high-power lamp beads, low heat generation, low light decay,
easy assembly, and a must for high-end lamps.
The product is suitable for, bulb lamp, down lamp
