PCB&PCBA Reverse Engineering Services PCB PCBA Clone Services
shared：

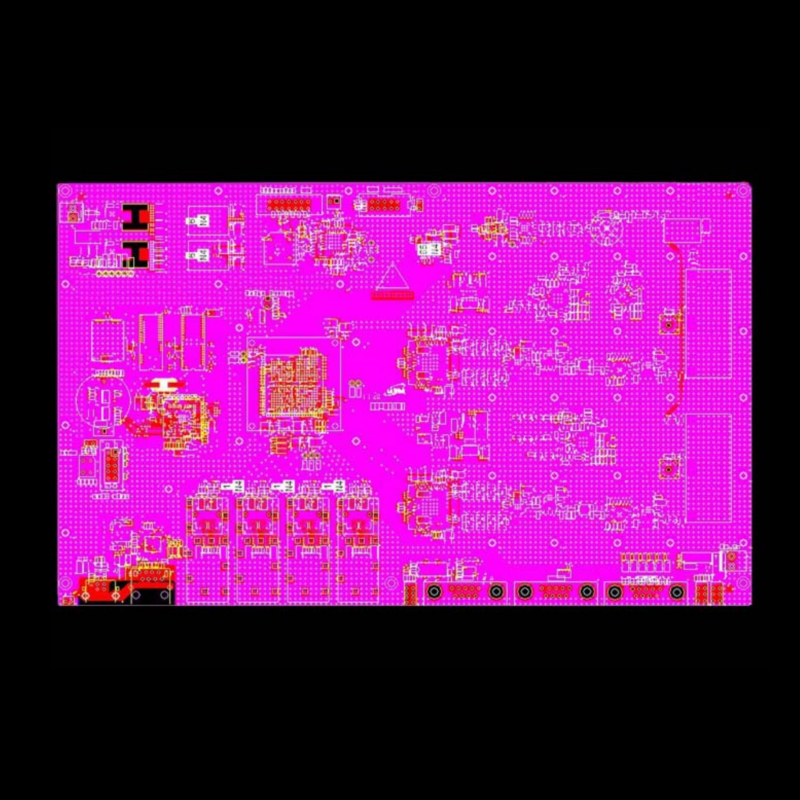

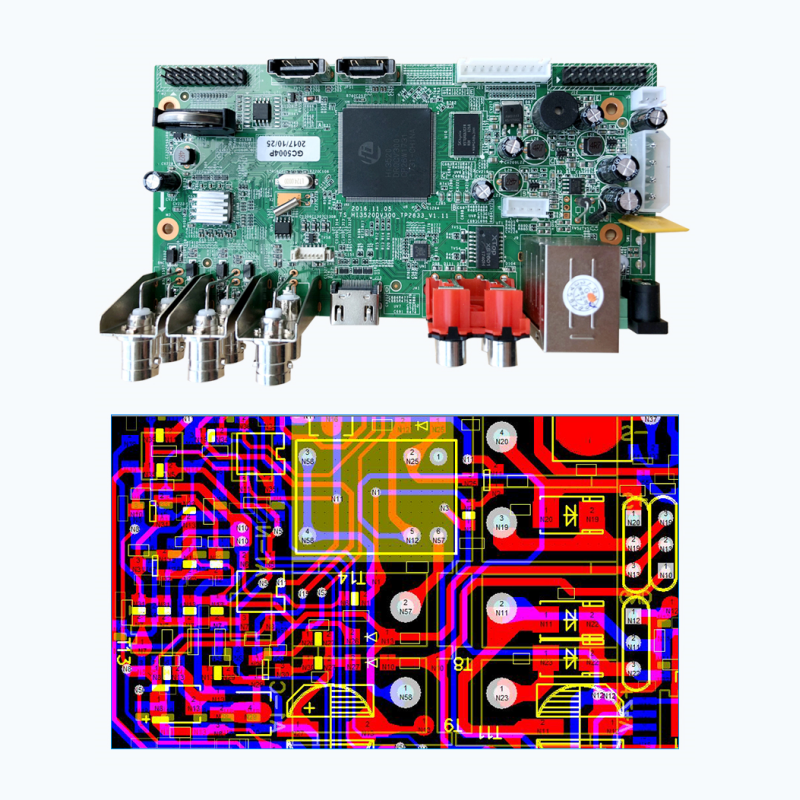

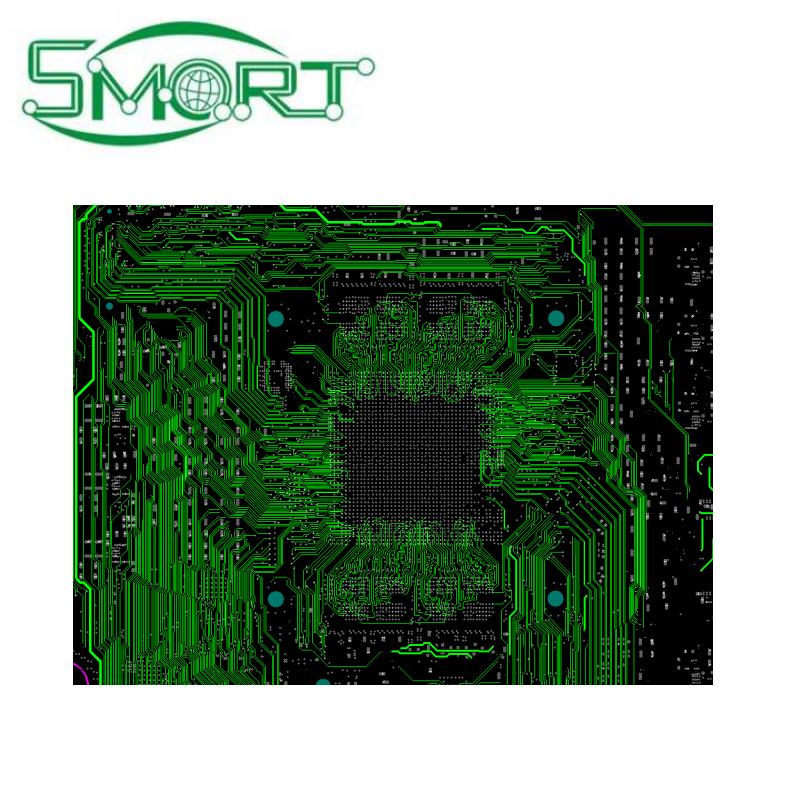

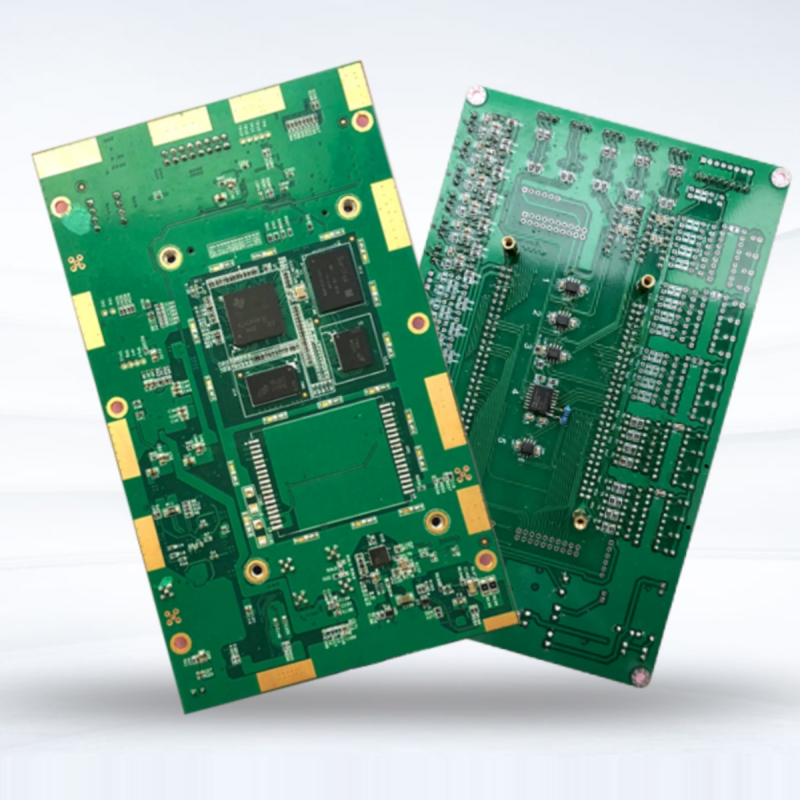

As a leader in the PCB copying industry, our technology is mature and we strive for excellence in details. Whether it is a single-layer, double-layer, or multi-layer circuit board, we can perform 1:1 replication. The file is professional and standardized, with a complete network of standard packaging, and can be edited at will, making it convenient for secondary development and modification needs.
The accuracy of the BOM list is crucial for electronic products. We strictly require engineering personnel to carefully confirm component parameters to ensure the accuracy of each component, and will provide detailed information such as the specification, model, packaging, usage, and tag number of each component. The removed components will be pasted on A4 colored paper printed with physical photos, and will be returned after the project is completed!
schematic diagram
Based on the chip signal as a clue, the pin signal names are labeled, and attention is paid to the corresponding relationship between the packaging pins and the physical pins. The accuracy of the transistor P/N polarity and EBC is also emphasized. The reverse schematic diagram is strictly network proofread with the PCB to ensure that the component position number, model, network name, and other information in the diagram are clear and visible, ensuring a 100% success rate and strong readability.
