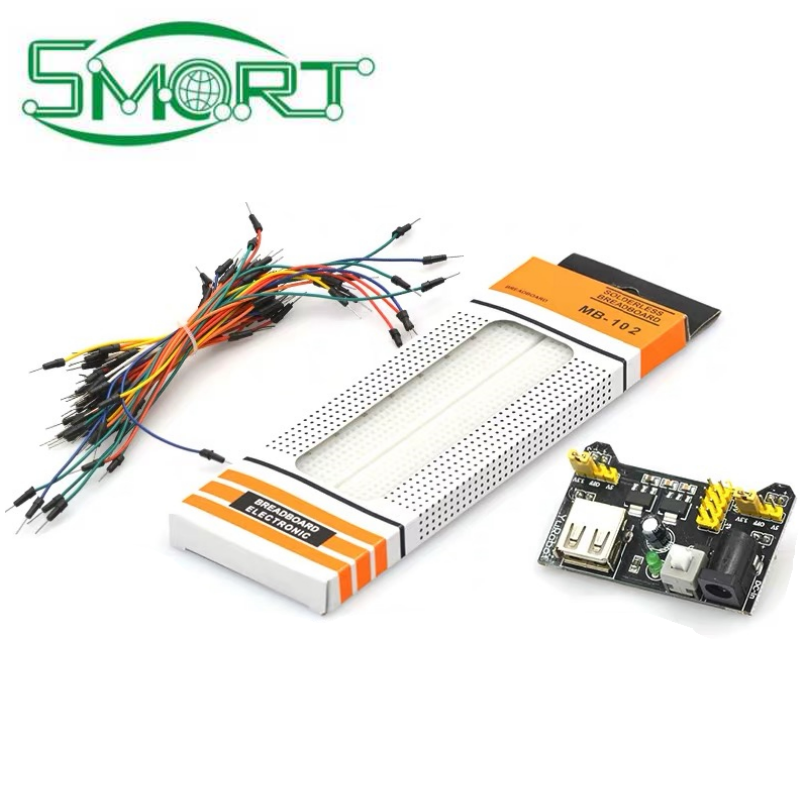

Module 3.3V/5V MB102 Breadboard Power Module+MB-102 830 points Solderless Prototype Bread Board Kit +65 Flexible Jumper wires

Products > Module > Module 3.3V/5V MB102 Breadboard Power Module+MB-102 830 points Solderless Prototype Bread Board Kit +65 Flexible Jumper wires
    • 1
    • 2
    • 3
    • 4
    • 5

Module 3.3V/5V MB102 Breadboard Power Module+MB-102 830 points Solderless Prototype Bread Board Kit +65 Flexible Jumper wires

shared：
Module 3.3V/5V MB102 Breadboard Power Module+MB-102 830 points Solderless Prototype Bread Board Kit +65 Flexible Jumper wires
The bread board is designed and manufactured specifically for solderless testing of electronic circuits due to its many small sockets on the board. Various electronic components can be inserted or removed as needed, eliminating the welding process, saving circuit assembly time, and the components can be reused, making them suitable for electronic circuit assembly, debugging, and training.

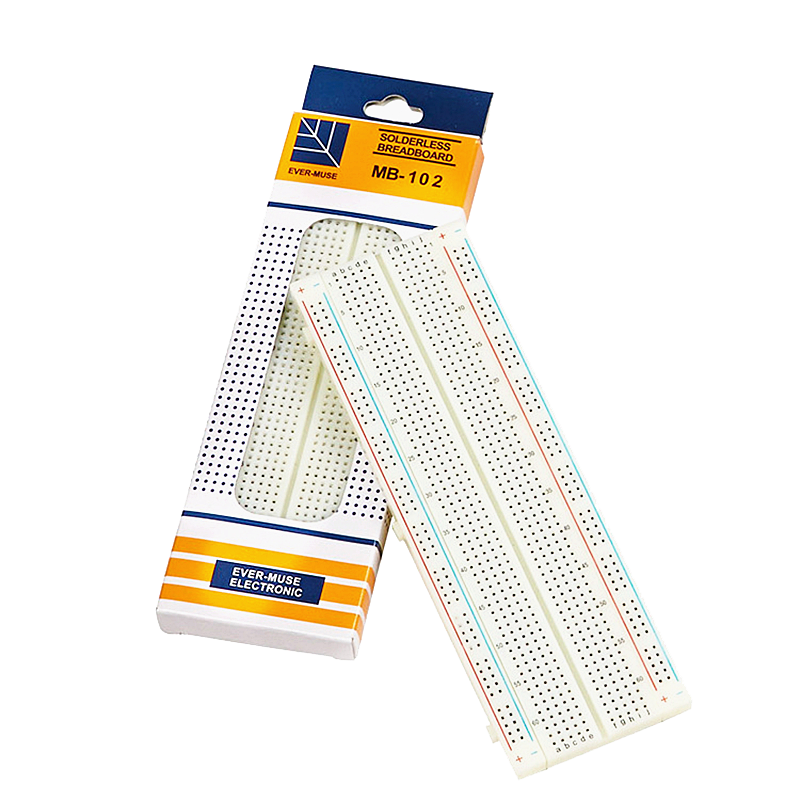

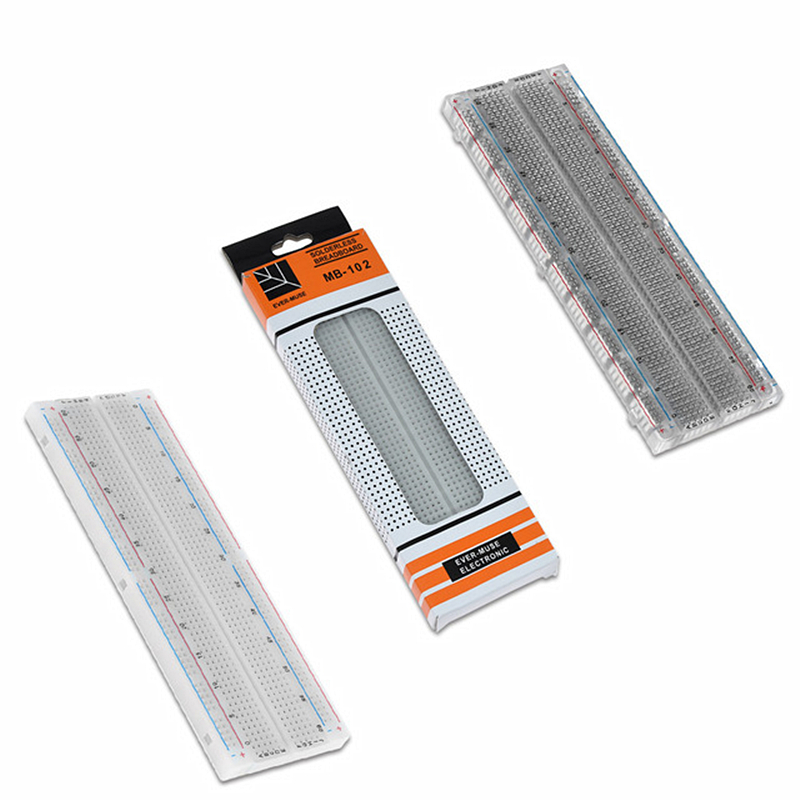

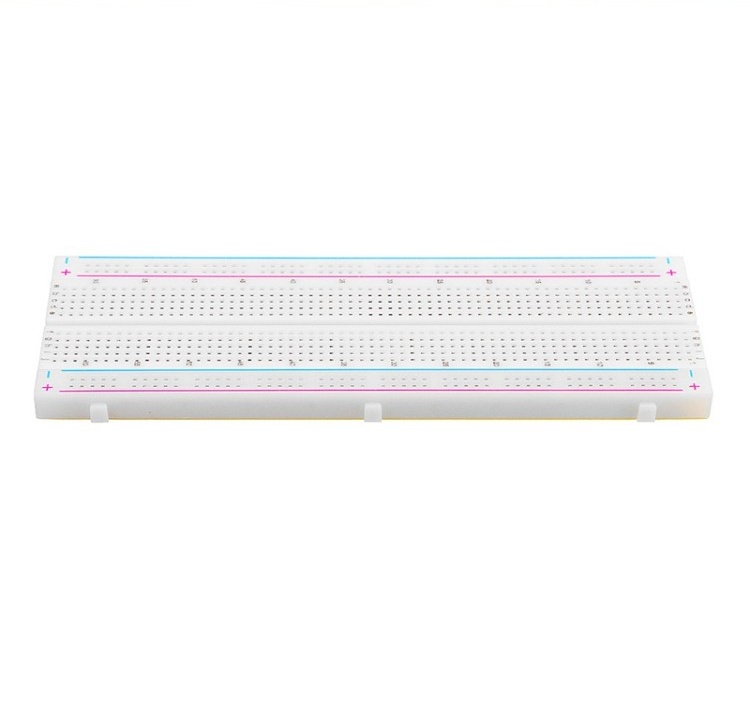

Product Name
MB102 Breadboard
Product specifications
830 holes
Product size
165 * 55 * 10mm
Product structure
with colored stripes
Product features
Large area, capable of large-scale testing, recyclable, environmentally friendly and recyclable. The structure has clear colors and high mobility, making it widely used.
Product Name
Bread Line, Connection Line
Line length
Ranging from 10-25cm
Quantity
65 pieces per bundle
Material
Tin plated


MB-102 power module Special power module for bread boards, compatible with 5V and 3.3V, suitable for MB-102 bread boards Input voltage: 6.5-12V (DC) or USB power supply Output voltage: 3.3V, 5V, can be selected with jumper caps Maximum output current:<700mA Up and down independent control, can switch to 0V, 3.3V, 5V Two sets of 3.3V and 5V DC output pins on board, with self-locking switches and indicator lights Voltage regulator chip 1117-5.0/1117-3.3V
