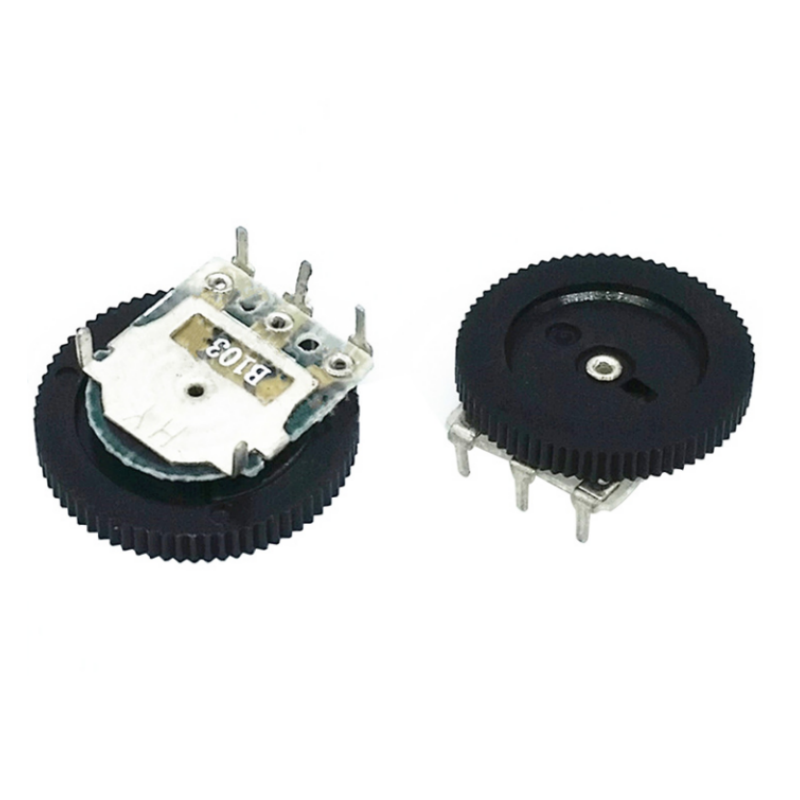

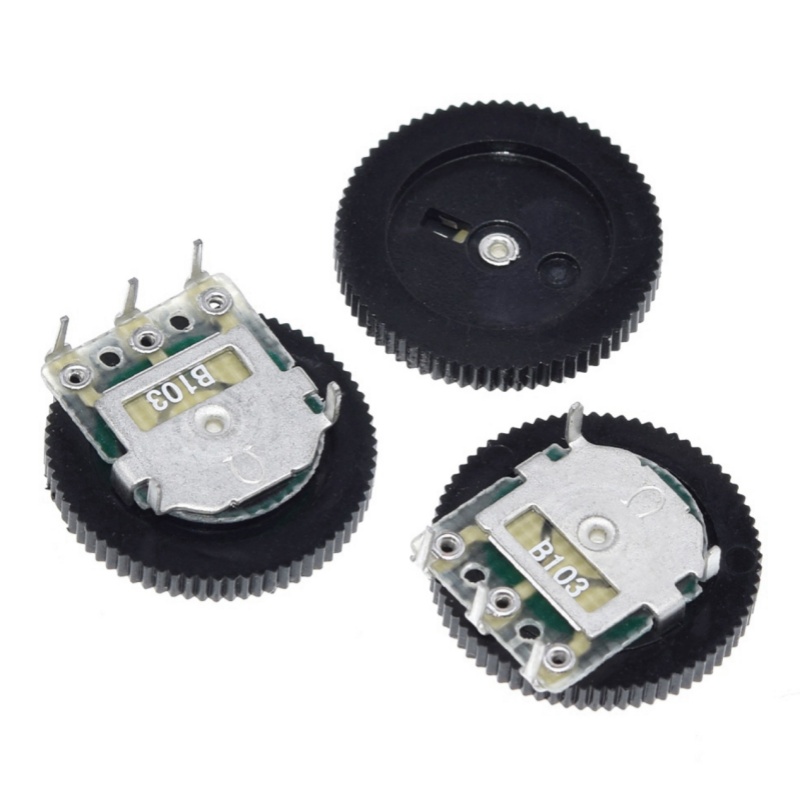

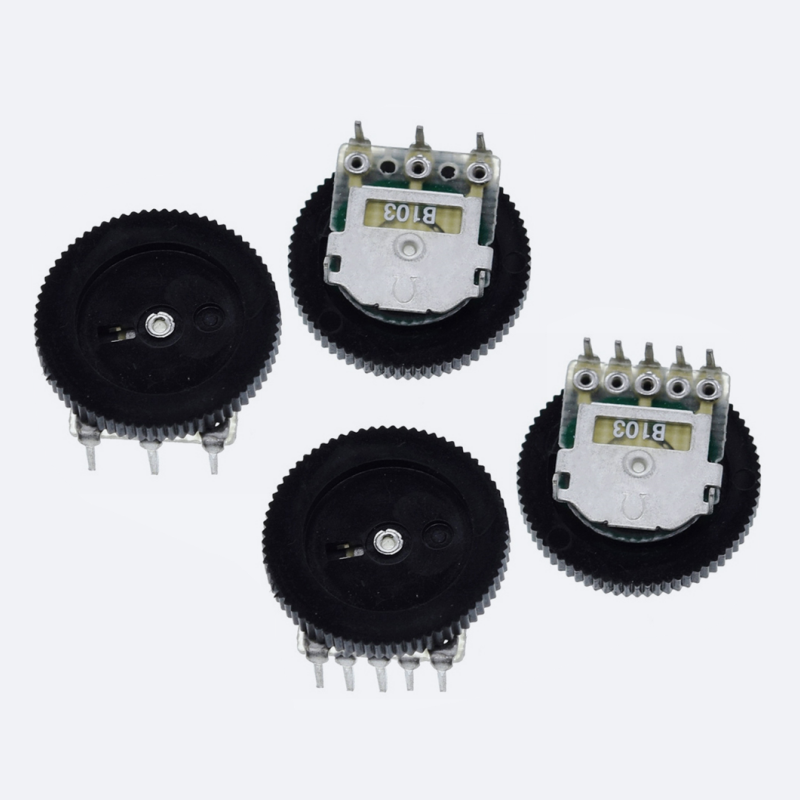

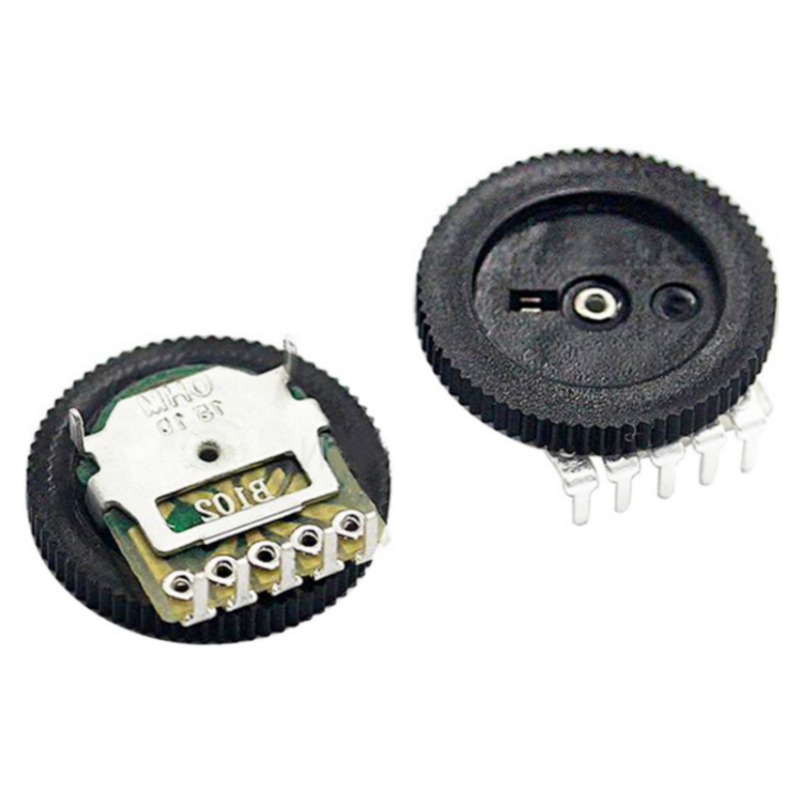

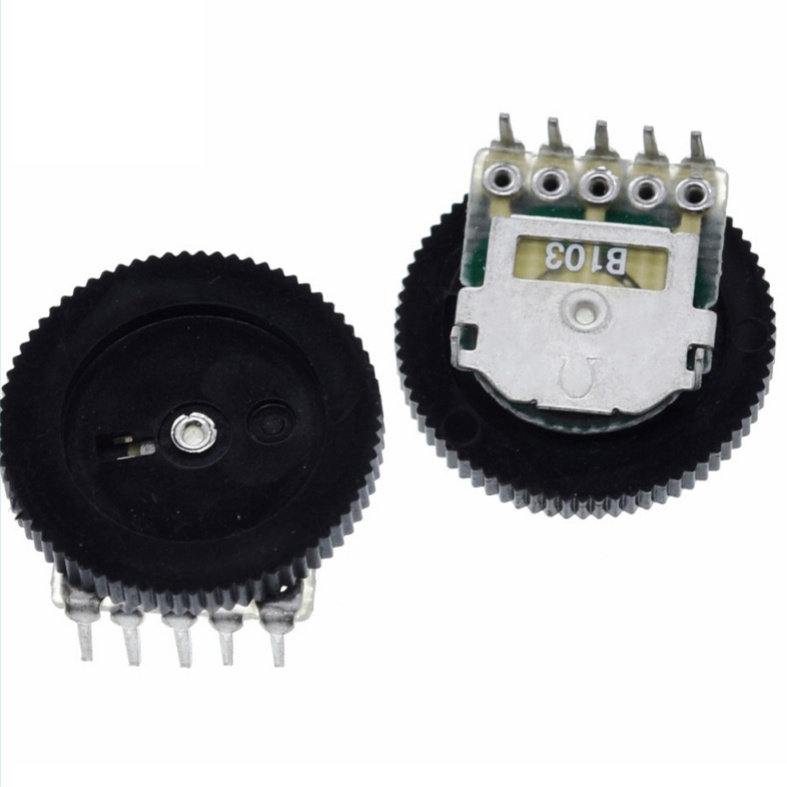

3pin 5pin dials potentiometer 1K 5K 10K 20K 50K 100K B102 B103 B104 B203 B502 B503 thumbwheel potentiometer

shared：
Gear dial b50k control dual potentiometer B103 B503 10K 50K single and double 3 pin 5 pin 16 * 2MM volume potentiometer original
Model Number
B102/B103/B104/B203/B502/B503
Specification
1K/5K/10K/20K/50K/100K
Features

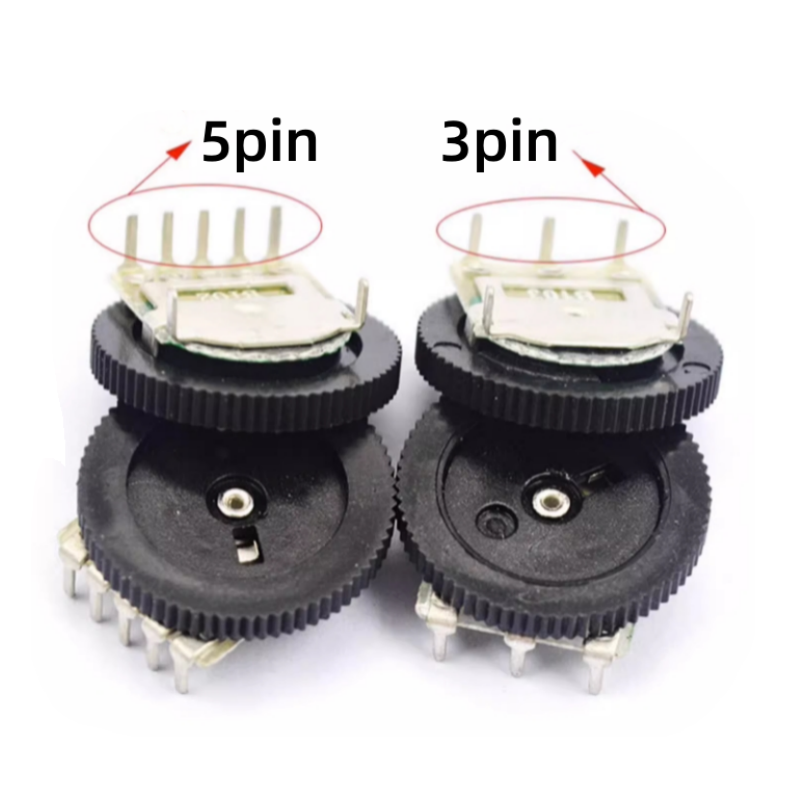

3pin/5pin
Description
Gear potentiometer
Resistance Tolerance
±20%
Product Name
Gear Potentiometer
Resistance range
500 ~1M
Characteristic of resistance change
B
Voltage limit for high usage
AC50V DC12V
Rated power
0.05W
Sliding noise
less than 47MV
Residual resistance value
2PIN<10 Ω 2-3PN<10 Ω
Insulation resistance value
More than 100M Ω at DC 100V
Voltage withstand
1 minute at AC 100V
Synchronous
-40dB~0dB
Mechanical FeaturesRotation angle: 270 ° ± 5 ° Rotating torque: 20gfcm~150gf.cm Stop resistance: 0.8kg.cm MAX Service life: approximately 10000 cycles

Procurement Options （MOQ:20PCS）

Single link 3-pin 1K B102 16 * 2MM Single link 3-pin 5K B502 16 * 2MM Single link 3-pin 10K B103 16 * 2MM Single link 3-pin 20K B203 16 * 2MM Single link 3-pin 50K B503 16 * 2MM Single link 3-pin 100K B104 16 * 2MM Dual 5-pin 1K B102 16 * 2MM Dual 5-pin 5K B502 16 * 2MM Dual 5-pin 10K B103 16 * 2MM Dual 5-pin 20K B203 16 * 2MM Dual 5-pin 50K B503 16 * 2MM Dual 5-pin 100K B104 16 * 2MM
