Smart Electronics thermocouple K J E type rtd pt100 type industrial temperature sensor

thermocouple K J E type rtd pt100 type industrial temperature sensor
shared：

BUYING TIPS FOR SENSORS

The default option for the product is thread specification. Before placing an order, the seller needs

to confirm the rod thickness, rod length, thread size, wire length, and model

(please contact customer service to confirm the price and parameters)

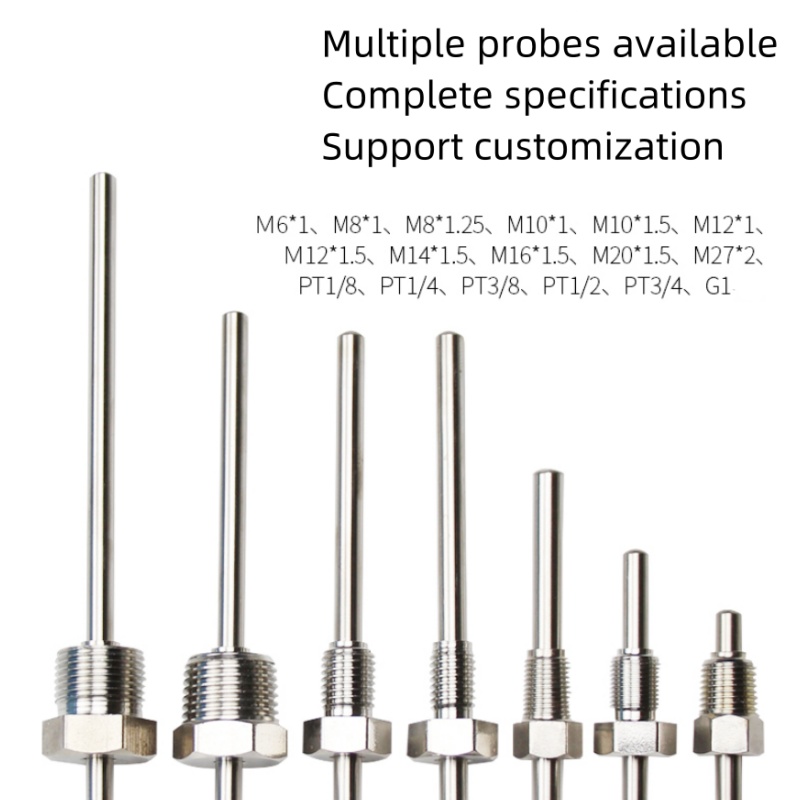

Color classification:M6 * 1, M8 * 1, M8 * 1.25, M10 * 1, M10 * 1.5, M12 * 1, M12 * 1.5,

M12 * 1.75, M16 * 1.5, M18 * 1.5, M20 * 1.5, M27 * 2British system PT1/8 one minute

threadBritish system PT1/4 half threadBritish system PT3/8 three-way threadBritish

system PT1/2 quarter threadBritish system PT3/4 hexagonal thread

Inch G1 1-inch thread

Please contact us for other specifications customization

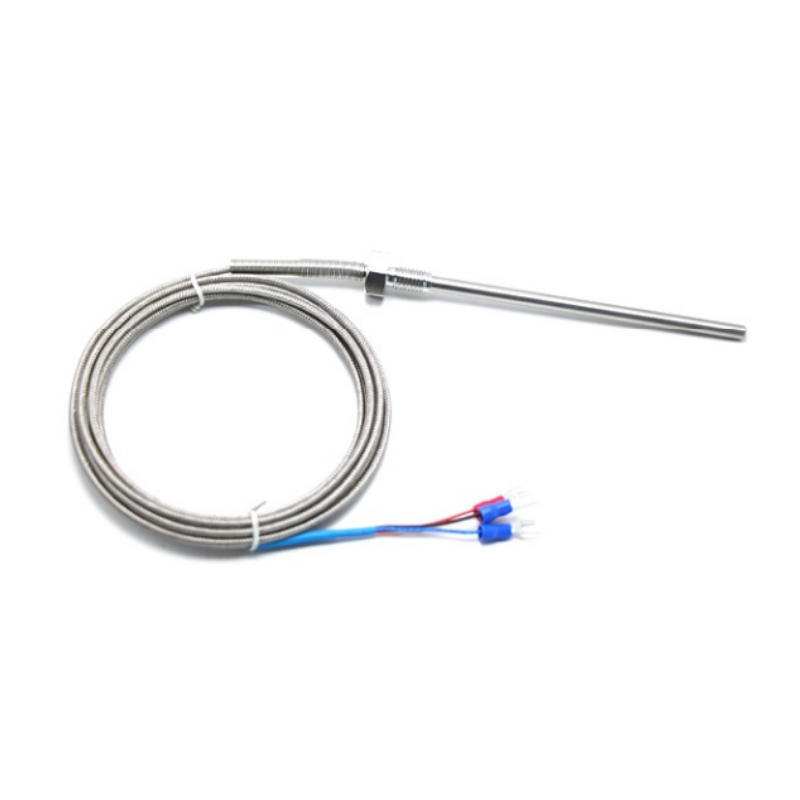

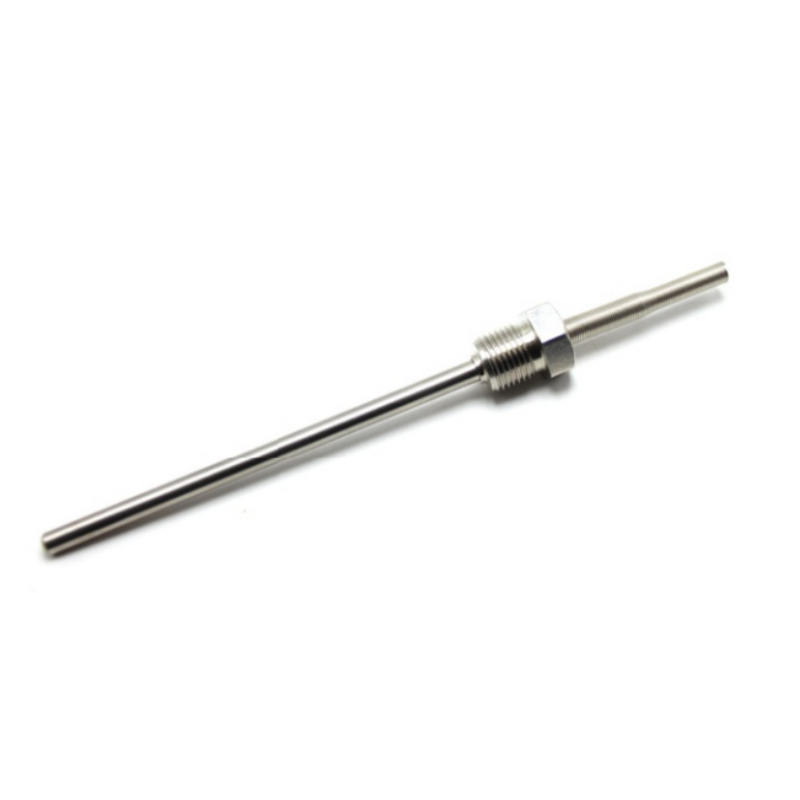

PT100 fixed thread temperature sensor

Waterproof, oil resistant, and corrosion resistant
Accurate and stable detection Fast response speed
Product Name
Product Name
Fixed thread temperature sensor
PT00/K/E/J/CU50
Probe material default
Installation thread
SUS304
Multiple specifications available
Probe diameter
Probe length
Support customization
Multiple specifications support customization
Extension line length
Measuring range
PT100 three core
PT100-200~450 ° C
K/E two core
CU50-50~150 ° C
Customizable thread length
K-type 0~600% C
Default line length of 15 meters
E-type 0~400 ° C
PT100 high-temperature three-core shielded wire PT100 thermistor default three core wire Can also be made with 2-core or 4-core wires
K/E two core high-temperature shielded wire
K/E/J/T and other thermocouples
Only 2 core wires

Note: In practical applications, sensors must be matched with temperature instruments

For example, if the output type of the temperature instrument is PT100, then the temperature sensor must also be PT100. If the output type of the temperature instrument is K, then the temperature sensor must also be K, otherwise the temperature cannot be displayed correctly.
