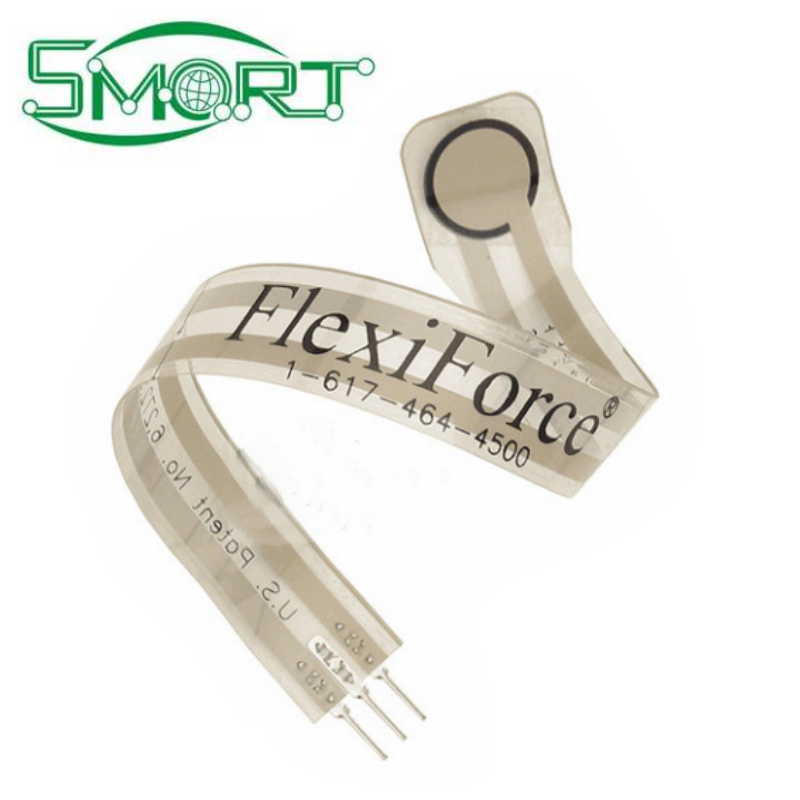

FlexiForce 100/25/1 lbs Thin Film Pressure Sensor A201

Description:
This is apiezoresistiveforce sensor. The harder you press, the lower the sensor's resistance.

Pressing lightly, the resistance changes from infin to ~300k. The sensor itself is thin and flexible, but the resistance does

not change while being flexed Resistance changes only when pressure is applied to the round area at the end of the sensor.

Used as a presence sensor (someone standing), weight sensor,pressure sensor (impact testing), etc.

The overall length is about 8.5". Sensor comes with 0.1" spaced, reinforced, breadboard friendly connector.This sensor

comes in three flavors. This sensor ranges from 0 to 1lb of pressure.

Characteristic:
Thickness: 0.008 "(0.208 mm)
Length: 8 "(203mm)
Width: 0.55 "(14mm)
The sensing range: 0.375 "diameter (9.53mm)
Connector: 3pin male square pin
Repeatability: <±2.5% of full scale
Hysteresis: < ± 4.5% of full scale
Drift: <5% log time
Reaction time: <5% msec
Operating temperature: 1500F- 14000F (-9 - 60 centigrade)
Temperature sensitivity: 0.2%/0F (0.36% centigrade)

Note:

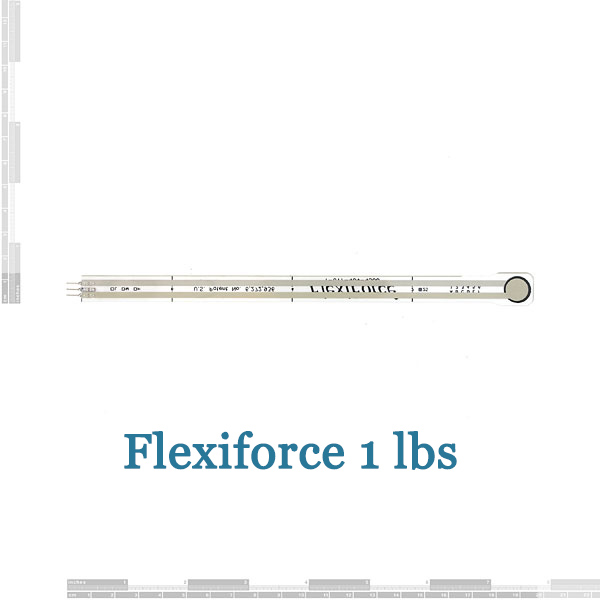

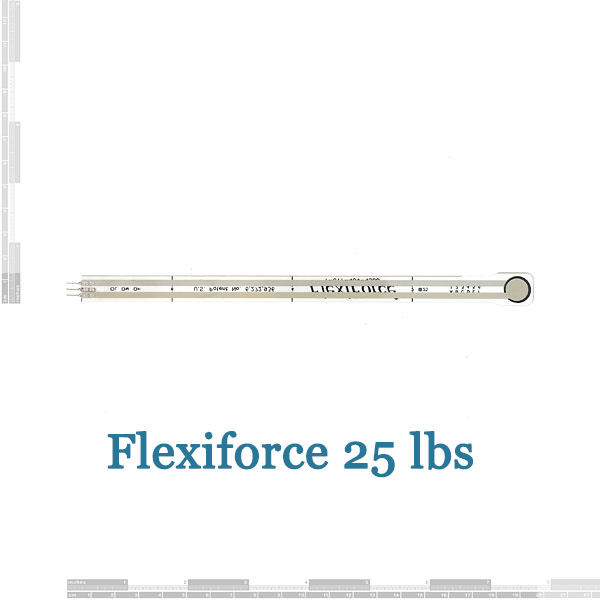

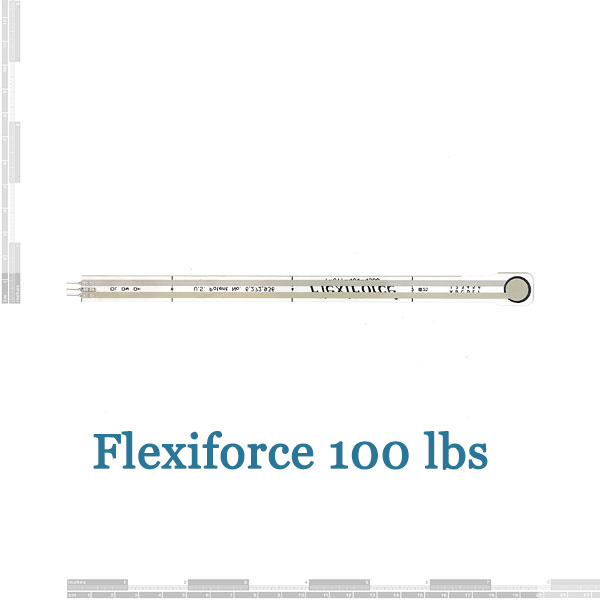

A201 measurement range is 0-1lbs (4.4N), 0-25lbs (110N) and 0-100lbs (450N)
Three measuring range, row please indicate range, in order to delivery.
