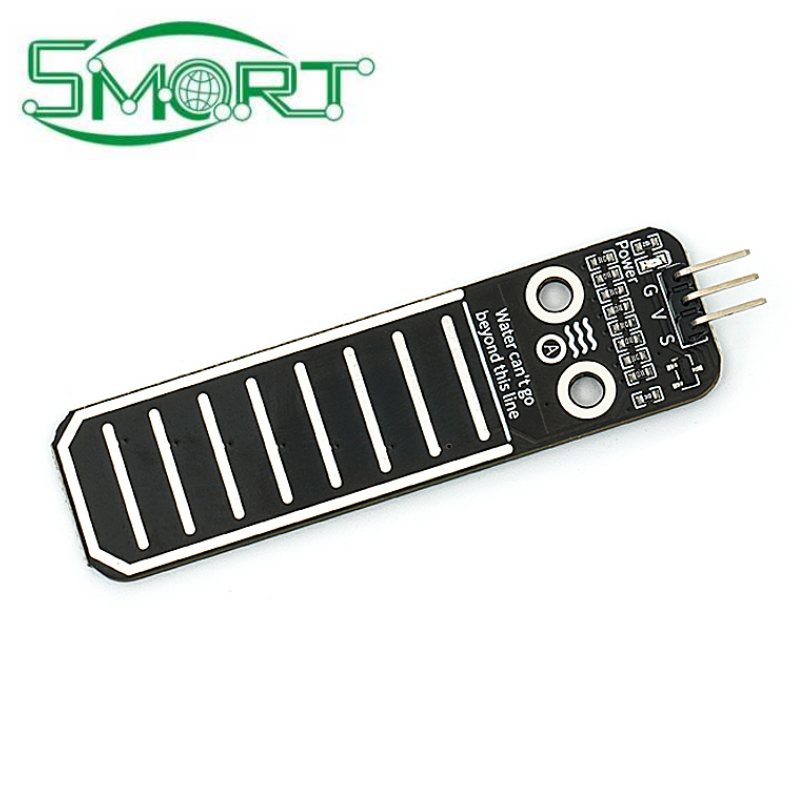

Smart Electronics Water level sensor, droplet sensor, water depth detection module

Products > Sensor Module > Smart Electronics Water level sensor, droplet sensor, water depth detection module
    • 1

Smart Electronics Water level sensor, droplet sensor, water depth detection module

shared：

Specifications:

Name: Water Level Sensor Model: HS-S37A Working voltage: 3.3-5.5V Interface type: 2.54mm 3P straight bent pin arrangement Installation hole parameters: aperture 3.2mm, hole spacing 10mm Module size: 6.5cm in length, 1.8cm in width, 0.7cm in height Interface description:
(G) Connect to the negative pole of the power supply
(V) Connect to the positive pole of the power supply
(S) Analog signal output
