Smart Electronics 3G module gsm gprs sim5320 simcom sim5320e module development board

3G module gsm gprs sim5320 simcom sim5320e module development board
shared：

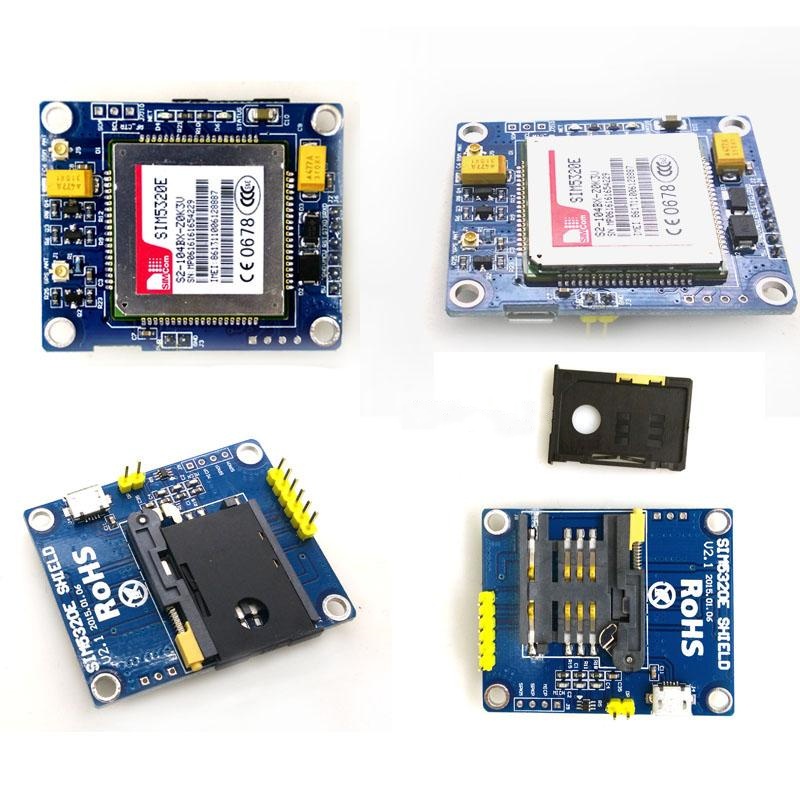

Smart Electronics 3G module SIM5320E GSM GPRS module development board GPS message data 3 g network

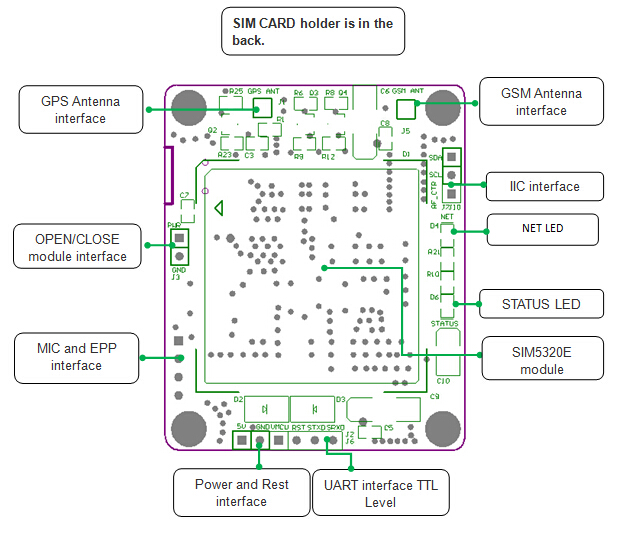

Power supply: DC 5 v 1 a or more than 1 a.

Communication interface: a group of TTL level serial port, compatible with 3.3 V to 5 V microcontroller;A group of USB interface,

can be directly connected to the computer debugging.

GPS antenna interface: a group of IPXmini antenna interface, the default active GPS antenna.
GMS antenna interface: a group of IPXmini antenna interface, provide PCB antenna by default.
SIM card interface: draw out SIM card interface.
USB interface: mini USB interface.
Voice interface: mike derivation, interface for a 2.54 * 4 p form single needle.
Other interface: a group of IIC interface, a group can be opened and closed control module interface (since the launch of the default module).
Indicator: a 0603 LED to the working state of the indicator module, a 0603 leds, used to indicate a module of the network state.
