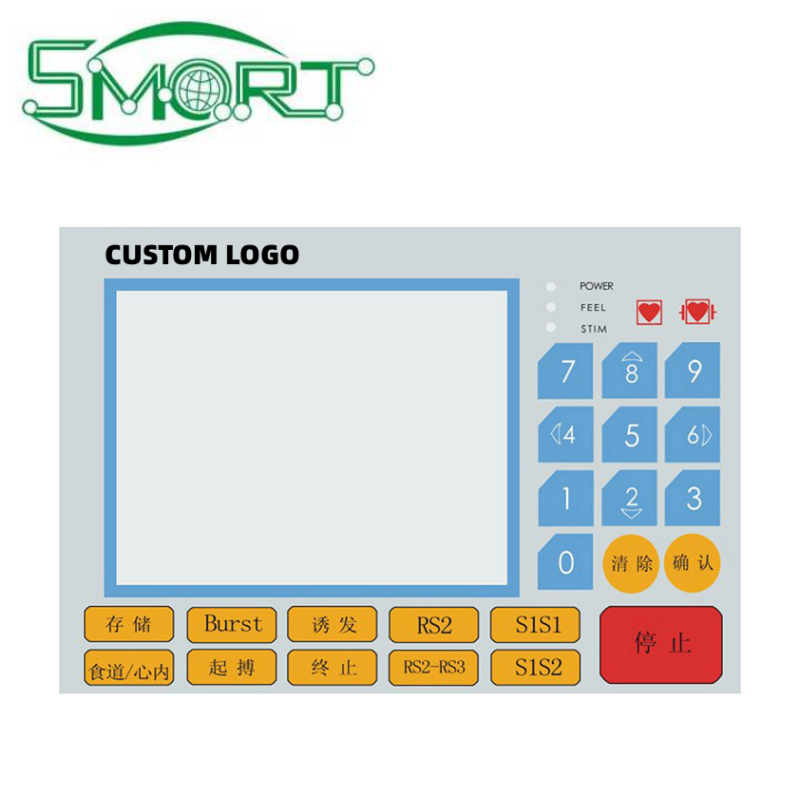

Custom Key Pad Graphic Overlay Button Panel Membrane Keypad Keyboard Membrane Switch

shared:
Products Description


Membrane keyboard manufacturers

Smart has rich experience on Membrane Keyboard industry over 8 years.

A membrane keyboard is a computer keyboard whose “keys” are not separate, moving parts, as with the majority of other keyboards,but rather are pressure pads that have only outlines and symbols printed on a flat, flexible surface. Very little, if any ,tactile feedback is felt when using such a keyboard and error-free blind typing is difficult.

Membrane keyboards work with electrical contact between the keyboard surface and the underlying circuits when key-top areas are pressed.

For the Modern PC keyboards, they re essentially a membrane keyboard mechanism covered with an array of dome switches which give positive tactile feedback.
Art
Ordinary Material

Graphic Overlay

 Finish
Specification
PC
Gloss
0.175/.25/.35/.5 mm thickness
 Matt
0.175/.25/.35/.5 mm thickness
PET
Fine Texture
0.15/.20 mm thickness
Valet Texture
0.15/.20 mm thickness
Gloss with Hard Coat
0.18 mm thickness
Top Adhesive
 PET Double-sided Tape

0.10/.125mm
Paper Double-sided Tape

0.10mm
 Transfer Tape

0.06/.12mm
 Retainer
PET
 Gloss
 0.125mm
 Spacer
 PET Double-sided Tape

 0.225/.275mm
 Circuit Layer
PET
 Gloss
0.125mm
Rear Adhesive
Paper Double-sided Tape

 0.10mm
Transfer Tape

0.06/.12mm
Connector
 Pin

Metal,Male/Female 2.54mm
 House

Female,2.54mm
Conductive Layer
 Silver Paste

 Acheson ELECTRODA 820B
 Carbon Paste

 Acheson ELECTRODA 423SS
 Insulation Ink

 Acheson ELECTRODA 452SS
Electrical Performances
Wire Resistance
0.5mm width,<1Ω/cm
Rated Current
25-100mA,0-30V DC
Insulation Resistance
>100MΩ 250V DC
Working Voltage
<50V DC
Non-tactile Switch
0.1-0.4mm
Tactile Switch
0.4-1.0mm
Working Life
>1 million times
Working Temperature
-40℃-70℃
Working Humidity
40℃,98%RH No Influence
Substrate Voltage
1500V DC
Feed backTime
10ms
Tail Folding
R>1,180
What
We
Do




Wide range of applications


Capacitive control switch are wildly used In Consumer electronics, Kitchen Appliances, Bathroom appliances, Air conditioners and other household appliances, Car alarm system, LED application, Lighting fixture application, Solar photovoltaic applications, Audio equipment, Mobile terminal tablet, Smart Electricity grid. And most of the products have been listed on the homes of ordinary family.

Capacitive control switch are wildly used In Kitchen appliances including refrigerators, sterilizers, kitchen ventilator, range
hoods, gas stoves, ovens, water heater, intelligent door monitor, intelligent entrance guard, and microwave ovens. Capacitive touch switch also wildly used In Industrial Control, Military Products etc.
Product Display
Why Choose Us

Advantage:

*We have ISO 9001: 2015 authentication. *Small trial orders can be accepted, free sample is available. *Our price is reasonable and keep top quality for every clients
Certifications
ISO9001: 2015 quality mangement system certified
Professional manufacturer
Certificate No: Q86160661493
Exhibition
Customer Photos
FAQ
We are a manufacturer and we have a professional overseas sales department to
serve our clients all over the world. Q: How long have you engaged in membrane switch manufacturing? A: We have engaged in this field for over 8 years. Q: What software/format can you use for drawing? A: CAD ,CDR,AI ,Corel Draw
Q: What's your MOQ for order? A: 5pcs Q: What's your payment terms? A: T/T, Paypal, Western Union, Alibaba trade assurance order etc. Q: What's your delivery terms? A: EXW, FOB, CIF etc.

Q: How to make an order? A:Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
Q: Sample available? A:Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
Q: How to guarantee the after sales service? A:We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.Any other questions, please contact us for more details. Thanks for your attention
