Professional Oem Fpc Manufacturer Lcd Display Fpc Cable Connector Camera Board Fpc

Materials : PI, copper and Ni/Au
Type : FPC
layers : 1-4 layers
Finished board dimensions : 10 x 15, 250 x 380mm
Board thickness : 0.057 to 0.6mm
Finished board thickness tolerance : ±2 mils
Drill hole diameter : 0.15 to 6.7mm
Finished via diameter : 0.1mm (minimum)
Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm

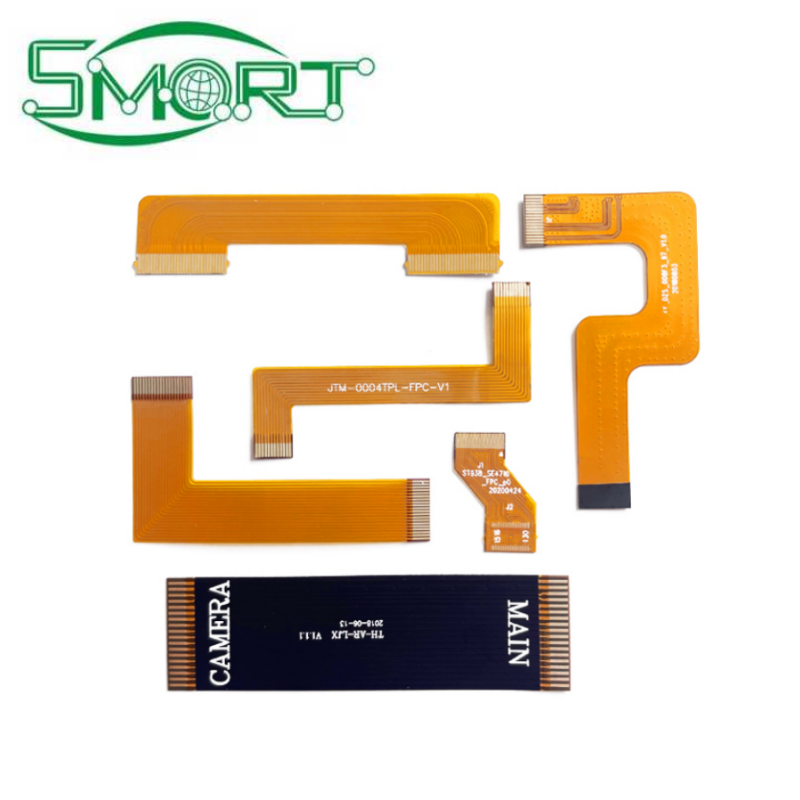

FFC FPC Cable Manufacturer Customized 0.5mm 1.0mm 1.5mm Pitch FPC Flexible Cable Flex PCB FPC Cable Assembly

custom cheap flex pcb impedance control flex pcb 2-12 layer rigid-flex pcb

Oem Manufacturer Custom Fpc Flexible Circuit Board Soft Pcba Circuit Board Flexible Board Processing Proofing

Membrane switch keypad fpc soft wiring pcba circuit board double sided immersion gold ultra-thin flexible circuit board soft boards


Outer copper thickness:1/2oz,1oz
FR4 reinforcement, PET reinforcement
Surface Treatment: Immersion Gold, Lead Free Tin Spray, OSP
Substrate: Polyimide (PI)
Character color:black,white
Number of layers:14
Minimum line width/spacing: 0.125mm, 0.1mm
Minimum Hole Diameter:0.1mm
Plate thickness:0.12mm

semi flex pcb prototype flex pcb soldering flex pcb manufacturing

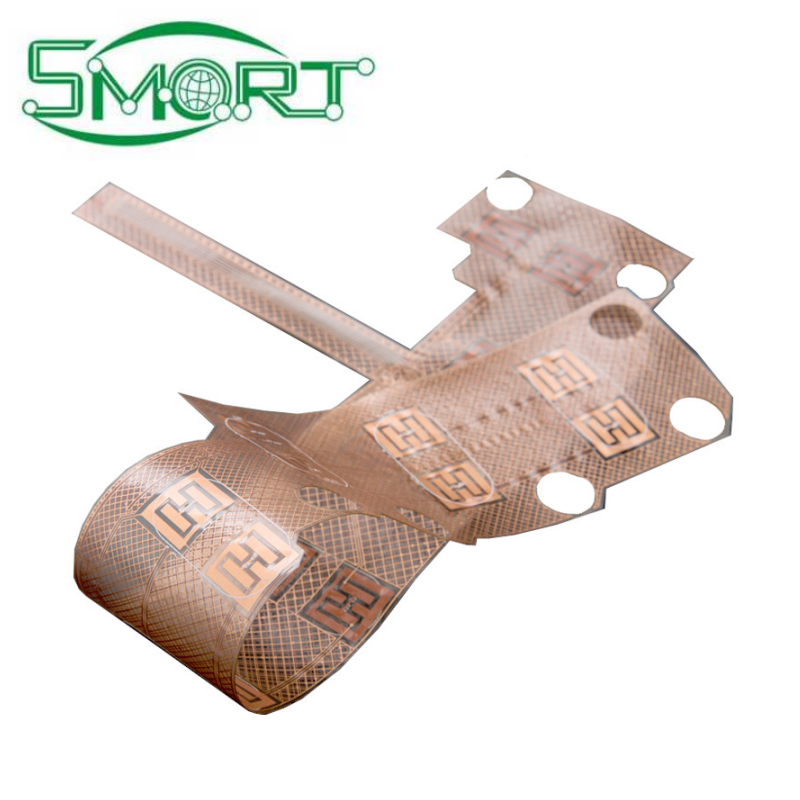

Shenzhen Original FPC Manufacturer Custom Transparent Flex PCB

The product is widely used in flexible LED display screens,touch buttons, transparent antennas, and other products
Customized processing: Yes

Brand: Smart
Model: Transparent FPC
Layers: double-sided
Substrate: Polyester film
Insulation material: Polyphenylene oxide resin (PPO)
Flame retardant properties: VO
Processing technology: sinking silver
Enhancement material: PI
Insulation resin: PI
Product nature: Thin

OEM Electronic Customized Fpc For Electronic Products Pcb Manufacturer Fpc Cable

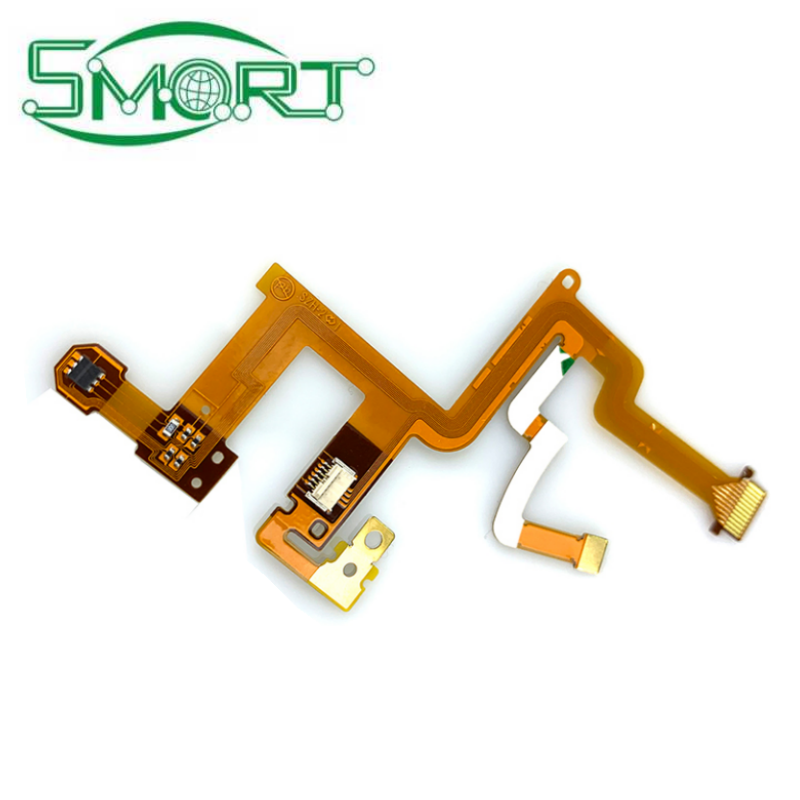

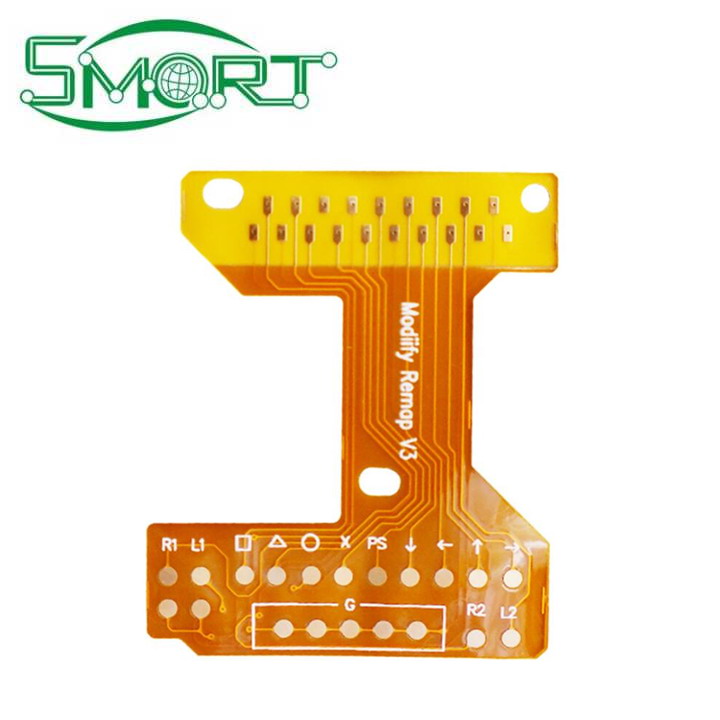

Fpc circuit board playstation4 game console handle flexible circuit board touch control board FPC proofing

Materials : PI, copper and Ni/Au
Type : FPC
layers : 1-4 layers
Finished board dimensions : 10 x 15, 250 x 380mm
Board thickness : 0.057 to 0.6mm
Finished board thickness tolerance : ±2 mils
Drill hole diameter : 0.15 to 6.7mm
Finished via diameter : 0.1mm (minimum)
Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm

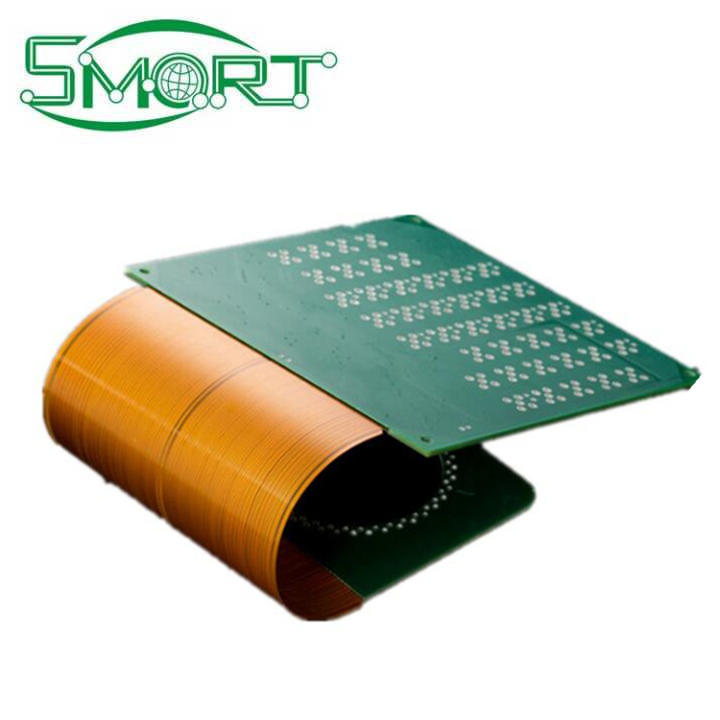

Professional custom rigid-flex board double-sided fpc multi-layer soft-hard board
Type：Rigid-Flex
Layer: Four layers
Substrate: Adhesive AR
Insulation material: organic resin
Insulation layer thickness: thin board
Flame retardant properties: V0 board
Processing Technology: Calendered Foil
Reinforcement Material: Glass Fiber Cloth Base
Insulating Resin: Polyimide Resin (PI)
Product Thickness: Soft 0.15mm; Hard 0.5mm; (Tolerance ±0.03mm)
Single piece size: customized according to customer's drawing
Thickness of copper foil: 18μm(0.5OZ)

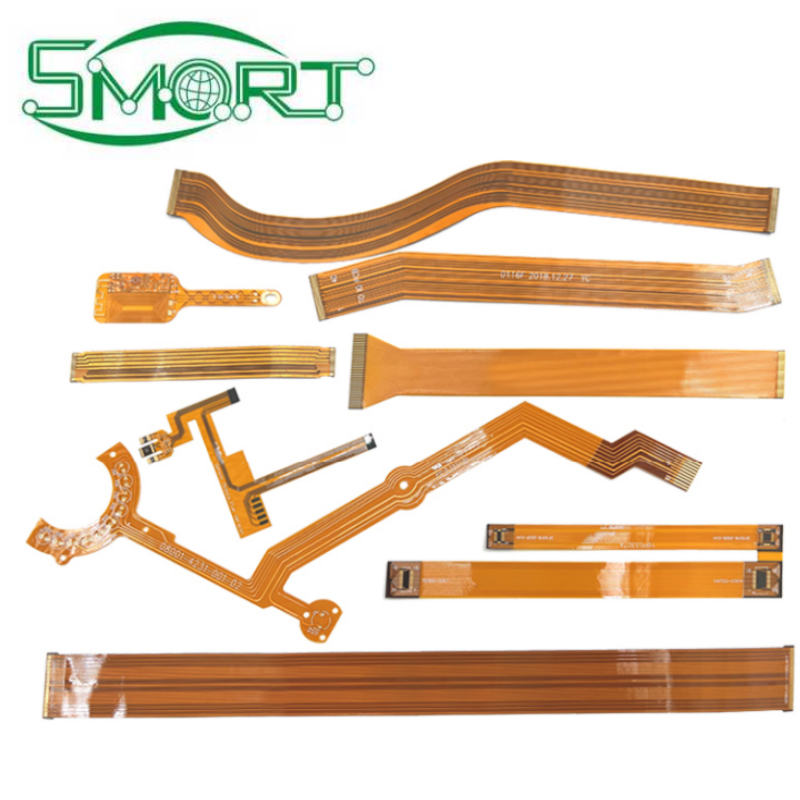

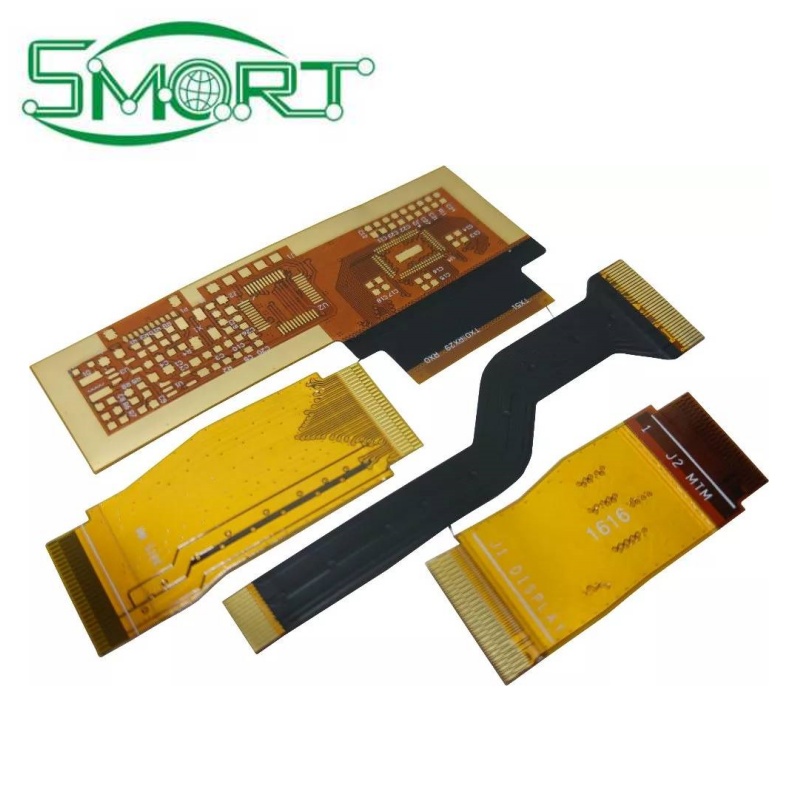

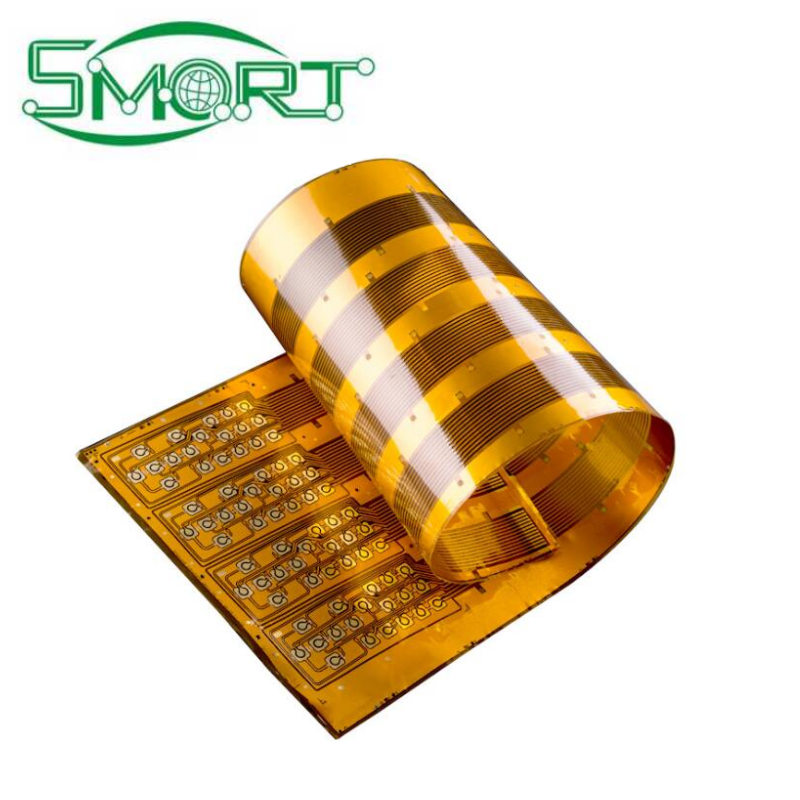

FPCB Flexible Printed Circuit Board, Flex PCB, FPC

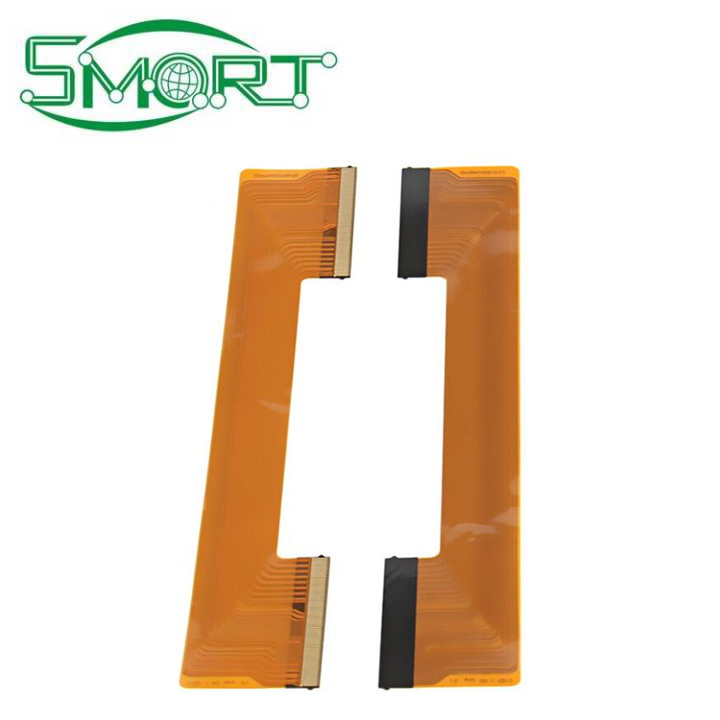

Fpc factory custom rolled copper 68PU type cable bending resistant cable display adapter fpc

Outer copper thickness:1/2oz,1oz
Reinforcement: steel reinforcement, aluminum reinforcement, PI reinforcement,
​FR4 reinforcement, PET reinforcement
Pad Finish: Immersion Gold, Lead Free Tin Spray, OSP
Plate Option: Flame retardant
Backing: High temperature resistant
Copper Foil Type: Non-adhesive Calendered Copper, Non-adhesive Electrolytic Copper
Electromagnetic film: single-sided, double-sided
Forming method: film molding, laser molding, mold molding
Thickness of gold/nickel plating:2U,1U
Substrate: Polyimide (PI)
Gold finger insertion/removal: Yes
Insulation Thickness: Conventional
