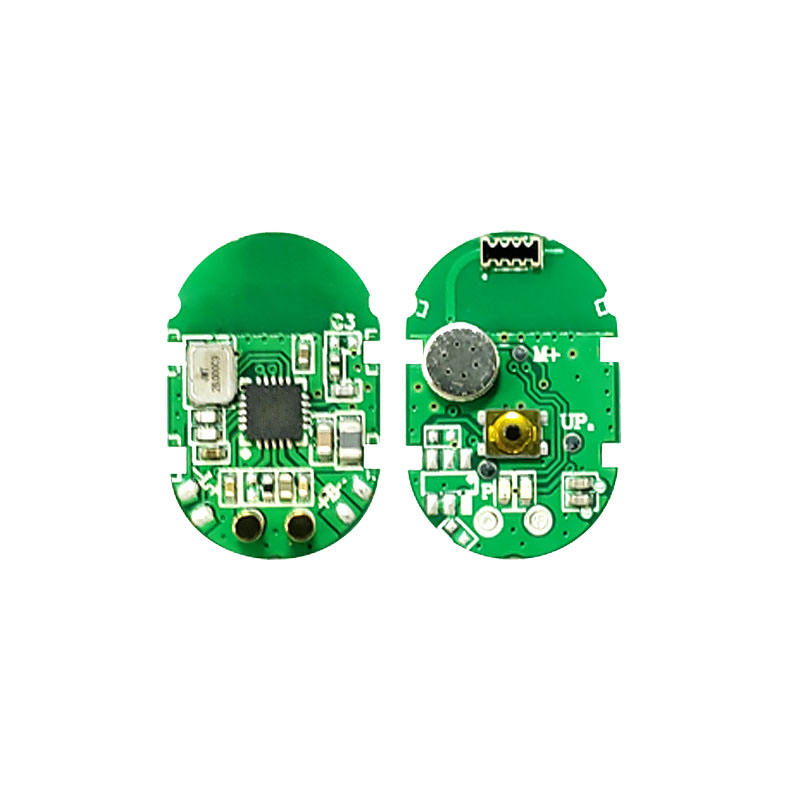

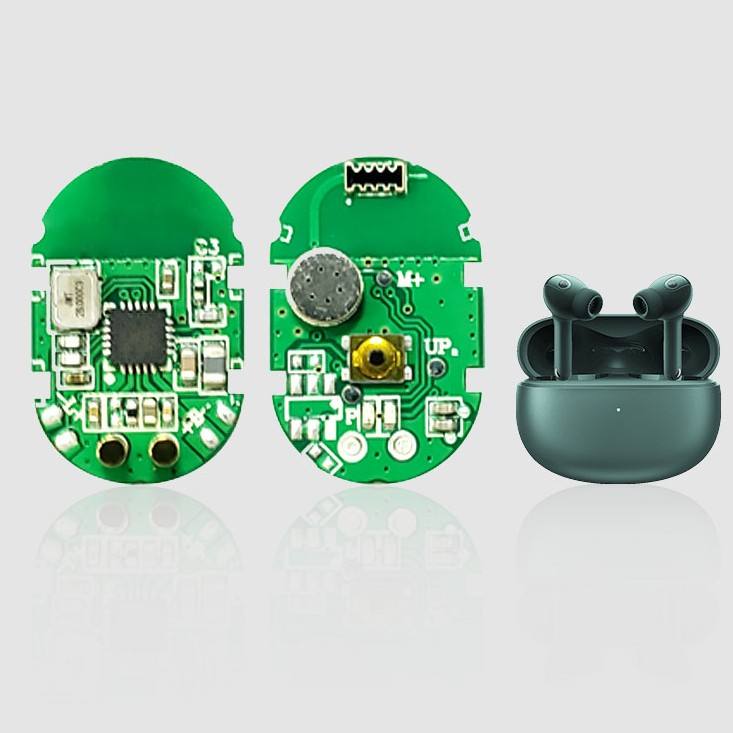

Customized earphones headphones PCBA solution development and design circuit board

Products > PCBA > Customized earphones headphones PCBA solution development and design circuit board

shared：

Custom FPC PCB PCBA Assembly Manufacturer /Gerber BOM List Purchasing / Original Components Supplier /Printed Circuit Board One-Stop Service
Product Name	PCBA Assembly
Brand Name	Smart
Place of Origin	Shenzhen , China
Supplier Type	Custom
MOQ	5pcs

PCBA	PCB+components sourcing+assembly+package
Assembly details	SMT and Thru-hole, ISO SMT and DIP lines
Lead Time	Prototype : 15 work days. Mass order : 20~25 work days
Testing on products	Testing jig/mold , X-ray Inspection, AOI Test, Functional test
Quantity	Min quantity : 1pcs. Prototype, small order, mass order, all OK
Files needed	PCB : Gerber files(CAM, PCB, PCBDOC) Components : Bill of Materials(BOM list) Assembly : Pick-N-Place file
PCB Panel Size	Min size : 0.250.25 inches(66mm) Max size : 1200*600mm
Components details	Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement
Component package	Cut Tape, Tube, Reels, Loose Parts
PCB+ assembly process	Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
