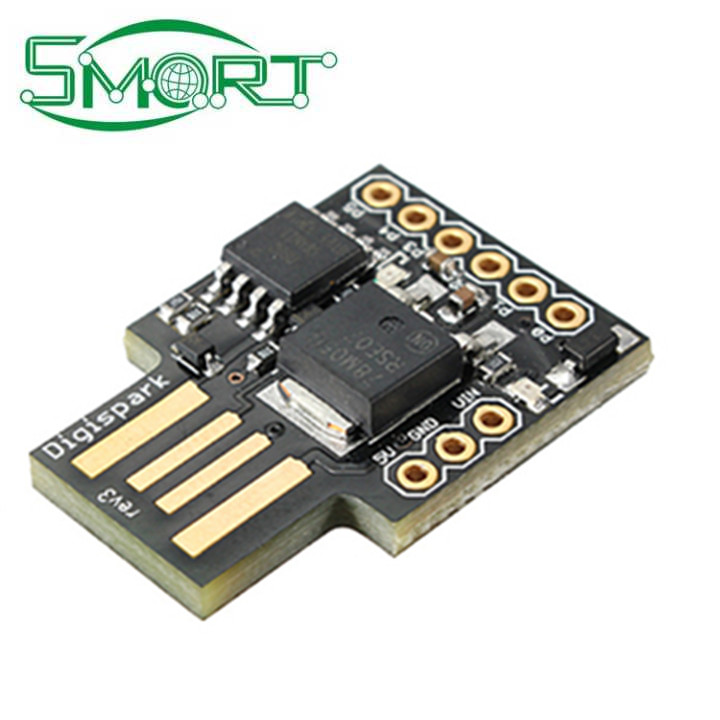

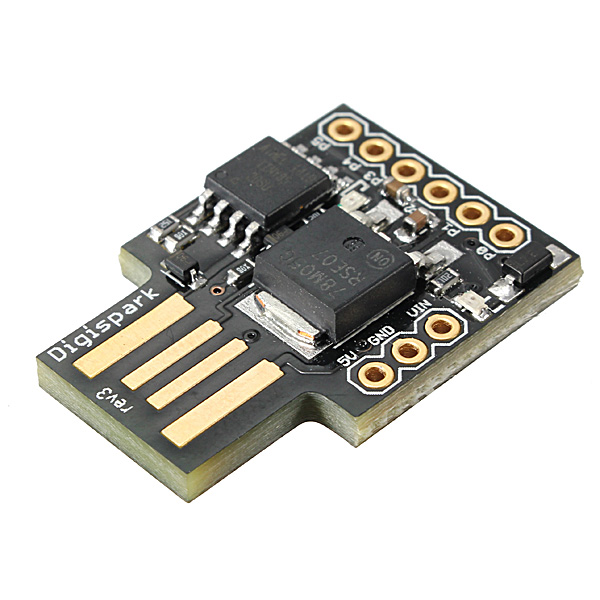

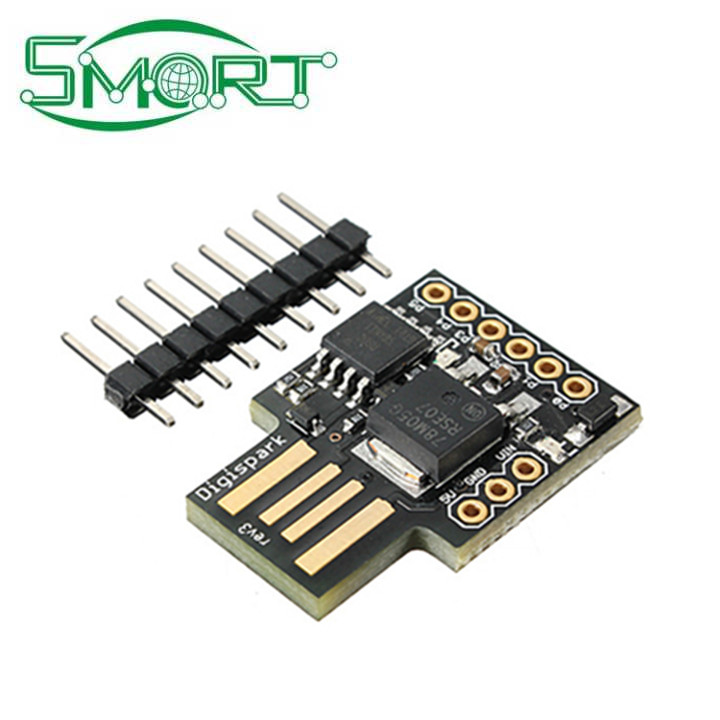

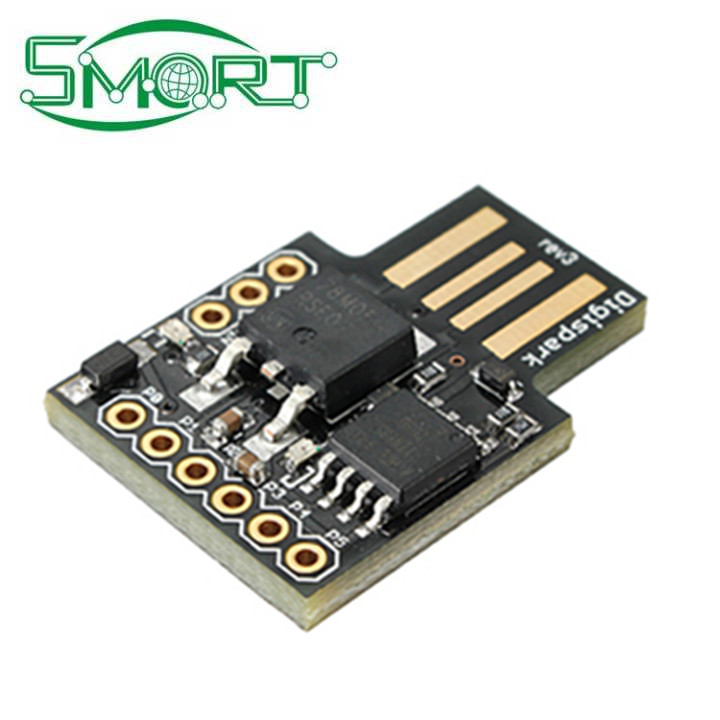

For ATTINY85 Ardu, Digispark Kickstarter Micro USB Development Board

Features:
Support for the Ardu IDE 1.0+ (OSX / Win / Linux)
Power via USB or External Source - 5V or 7 -35V (automatic selection)
On-board 500ma 5V Regulator
Built-in USB(and serial debugging)
6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you can use all 6 even if you are programming via USB)
shared：



Features:
Support for the Ardu IDE 1.0+ (OSX / Win / Linux)
Power via USB or External Source - 5V or 7 -35V (automatic selection)
On-board 500ma 5V Regulator
Built-in USB(and serial debugging)
6 I/O Pins (2 are used for USB only if your program actively communicates over USB otherwise you
can use all 6 even if you are programming via USB)
8k Flash Memory (about 6K after bootloader)
I2C and SPI(vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test/ Status LED (on Pin0)
Weight: 4g



Name
Phone
Email
Corporate name
Address
Leaving Message*

Verification code
Submit

Orange pi zero Computer development board 512MB Programmed microcontroller singlechip SCM Orange Pi

Orange pi zero Computer development board

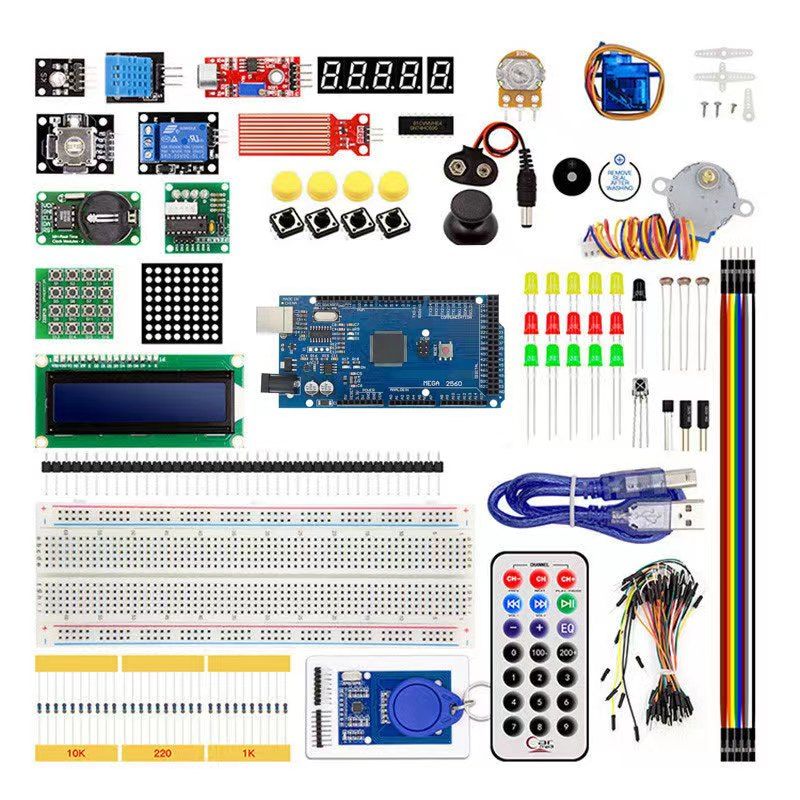

UNO R3 Learning Kit Ardu Upgraded Beginner Kit RFID Stepper Motor mage2560 Kit
