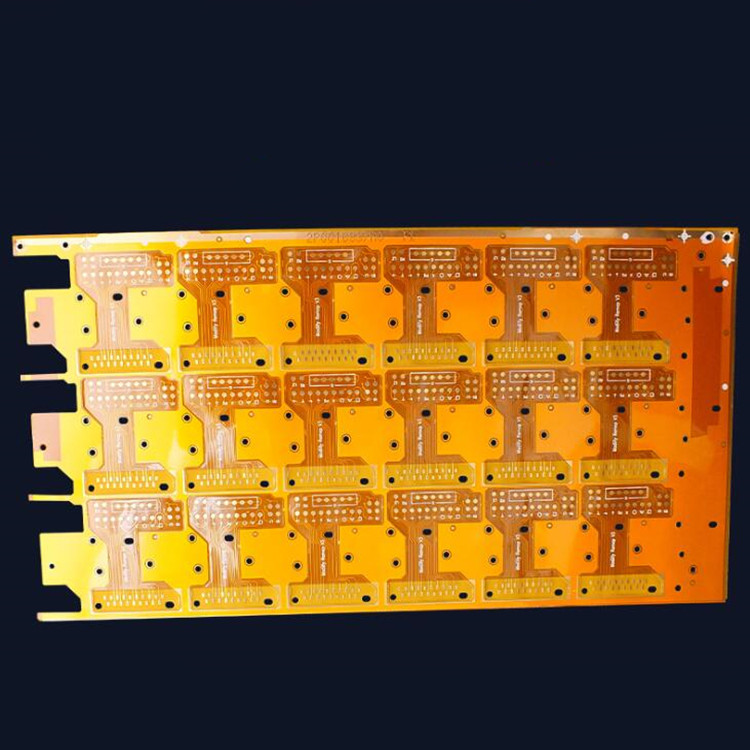

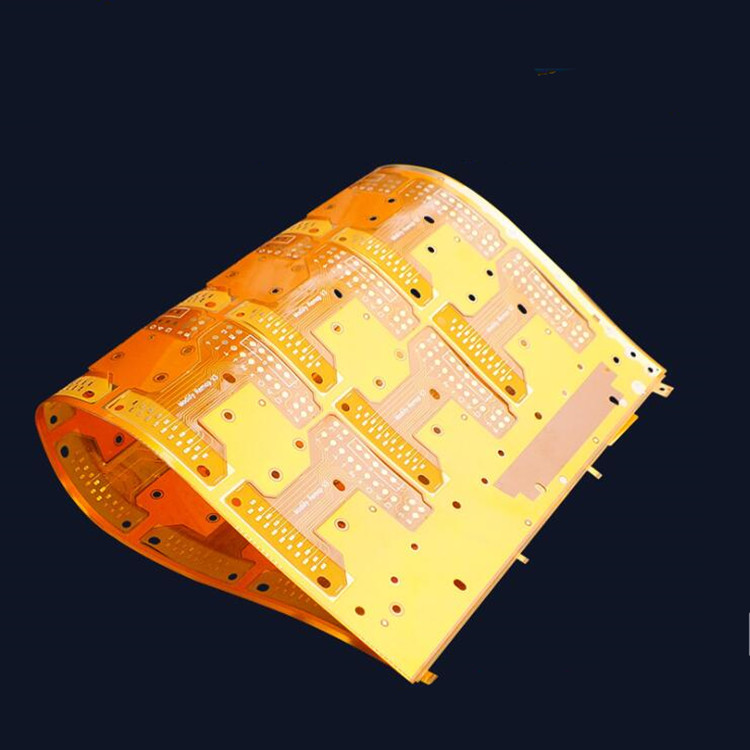

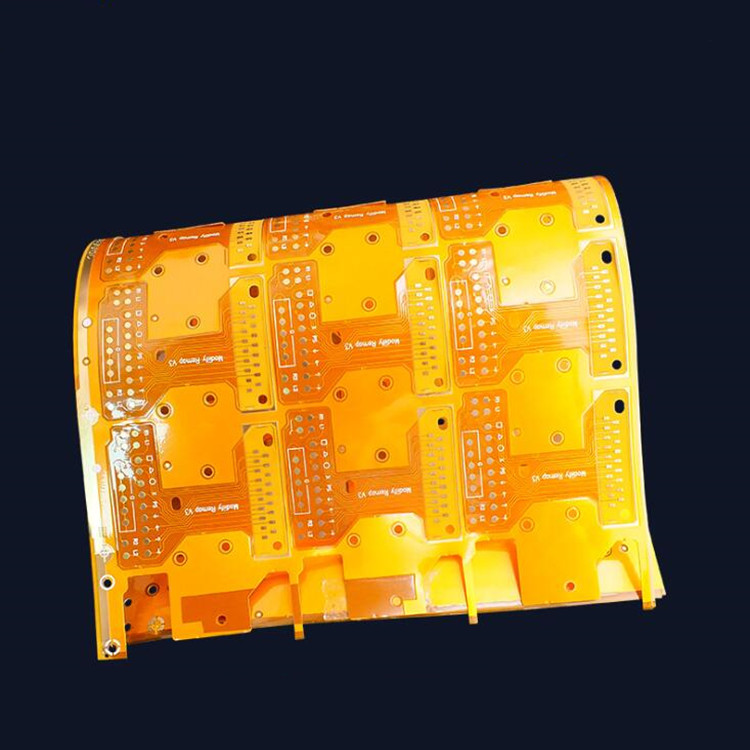

Fpc circuit board playstation4 game console handle flexible circuit board touch control board

Fpc circuit board playstation4 game console handle flexible circuit board touch control board FPC proofing
shared:

Materials : PI, copper and Ni/Au

Type : FPC

layers : 1-4 layers

Finished board dimensions : 10 x 15, 250 x 380mm

Board thickness : 0.057 to 0.6mm

Finished board thickness tolerance : ±2 mils

Drill hole diameter : 0.15 to 6.7mm

Finished via diameter : 0.1mm (minimum)

Inner layer dielectric thickness (1/2 mils PI with 15um adhesive) : 0.0275 to 0.1mm
