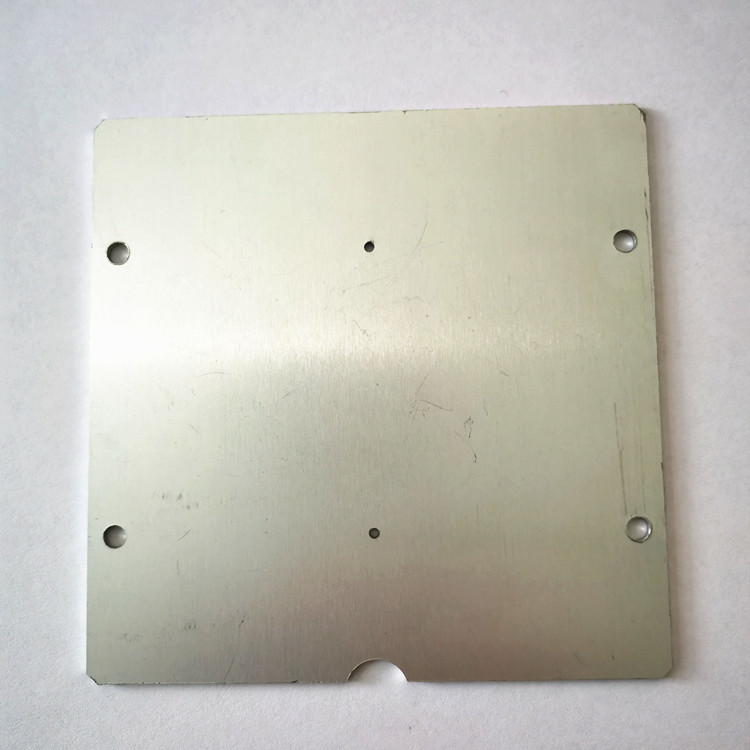

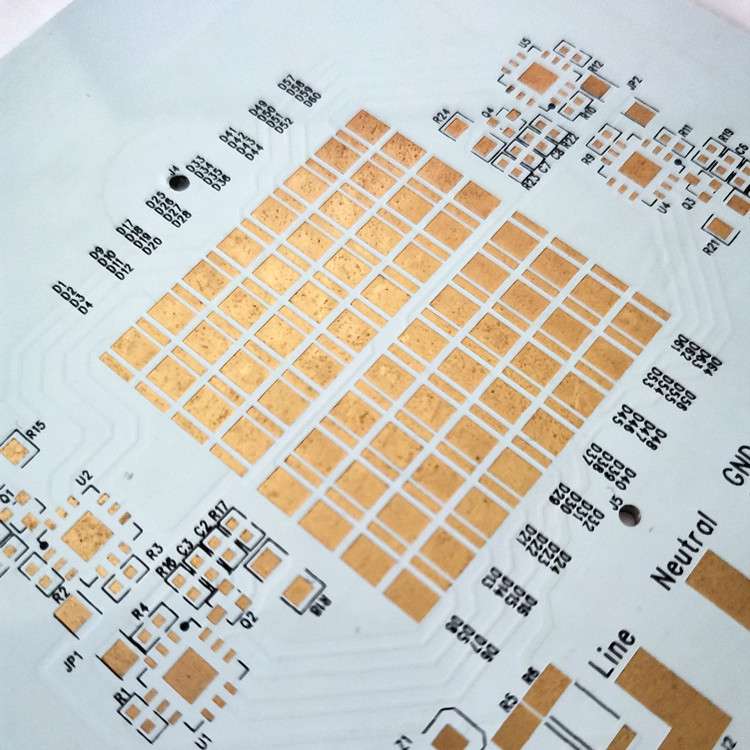

Square single-sided aluminum substrate, Custom aluminum PCB

Share

Products Description

Please kindly send us your gerber file and bom list
for quotation ,and please also inform the order quantity
PCB Capacities and Technical Specification
Order Quantity
1-500,000
Layer
1, 2, 4, 6, up to 24 layer
Material
FR-4, High Tg, Isola, Aluminum, Rogers, etc
PCB type
Rigid, flexible, rigid-flexible
Shape
Rectangular, round, slots, cutouts, complex, irregular
Max PCB dimensions
1200mm*600mm
Thickness
0.2~4.0mm, Flex 0.01~0.25''
Thickness tolerance
± 10%
Copper thickness
0.5-6 oz
Copper thickness tolerance
± 0.25oz
Surface finish
HASL, LF HASL, Imm Gold, Imm Silver, OSP etc
Solder mask
Green, red, white, yellow, blue, black, orange, purple
Silk screen
White, black
Silk screen min line width
0.006'' or 0.15mm
Min drill hole diameter
0.01'', 0.1mm or 10 mil
Min trace/gap
0.075mm or 3mil
PCB cutting
Shear, V-score, tab-routed
PCBA Capabilities
Turnkey PCBA
PCB+components sourcing+assembly+package
Assembly details
SMT and Thru-hole, ISO SMT and DIP lines
Lead Time
Prototype : 15 work days. Mass order : 20~25 work days
Testing on products
Testing jig/mold , X-ray Inspection, AOI Test, Functional test
Quantity
Min quantity : 1pcs. Prototype, small order, mass order, all OK
Files needed
PCB : Gerber files(CAM, PCB, PCBDOC)
Components : Bill of Materials(BOM list)
Assembly : Pick-N-Place file
PCB Panel Size
Min size : 0.25*0.25 inches(6*6mm)
Max size : 1200*600mm
Components details
Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package
Cut Tape, Tube, Reels, Loose Parts
PCB+ assembly process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave
Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing
