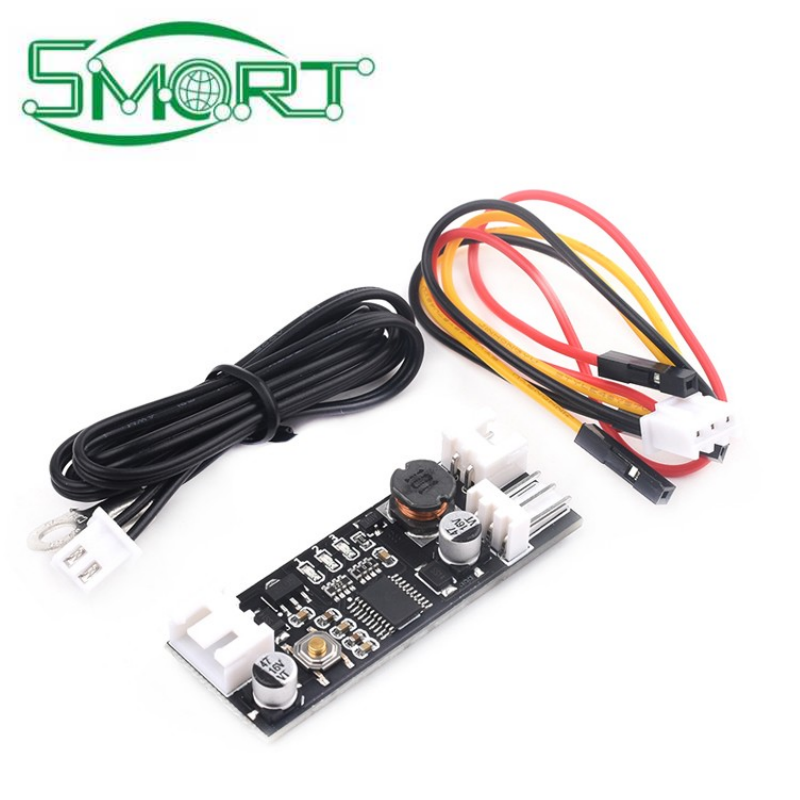

Smart Electronics DC PWM Single channel DC12V PWM 2-3 cable chassis computer fan temperature control noise reduction module

DC PWM Single channel DC12V PWM 2-3 cable chassis computer fan temperature control noise reduction module
shared：
Product Name
Single channel DC12V PWM 2-3 cable chassis computer fan temperature control noise reduction module
Working voltage
Suggestion: DC12V (working within the range of 9-14V)
Input reverse protection
Yes
Output overload protection
None (do not short-circuit or overload!!!)

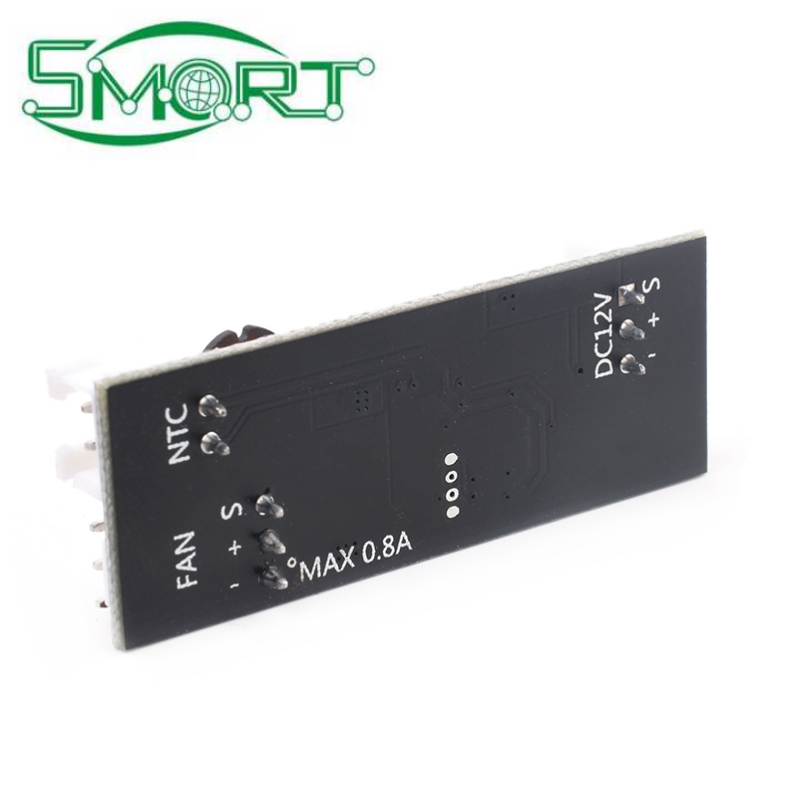

Power connector
XH-3P wiring base (pin spacing 2.54mm)
Fan current
within 0.8A (no overload allowed)
Fan connector
KF2510-3P wiring base (pin spacing 2.54mm)

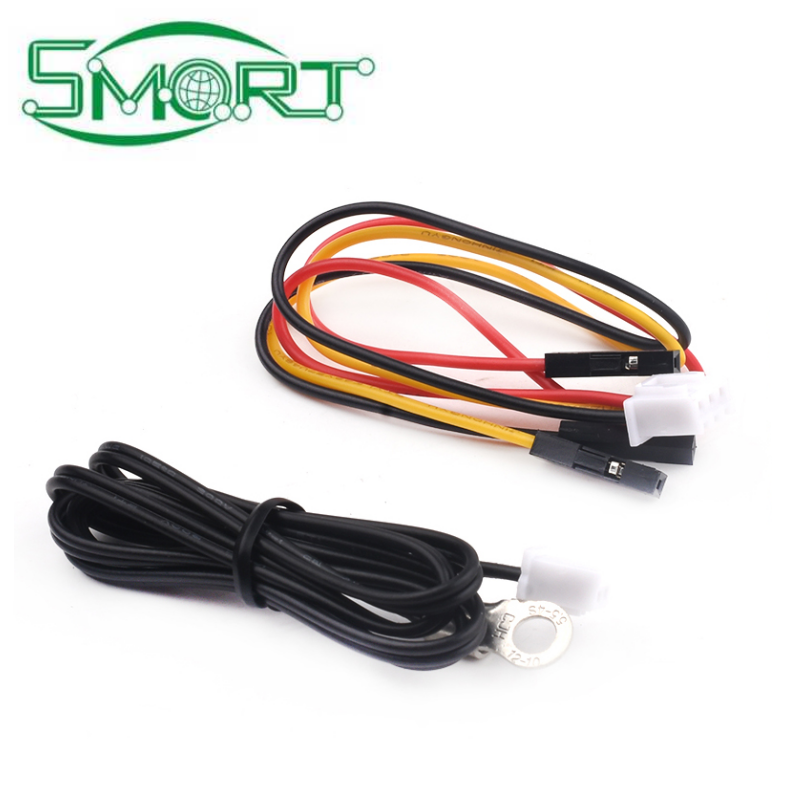

Temperature probe parameters
NTC50KB=3950, length 50CM
Temperature probe connector
XH-2P wiring base (pin spacing 2.54mm)
Temperature probe temperature resistance
Ring probe 110 ℃
PWM output range
5% -100%
Working temperature
* -20 ℃ to 60 ℃
Board size
43mm * 18mm * 9mm
