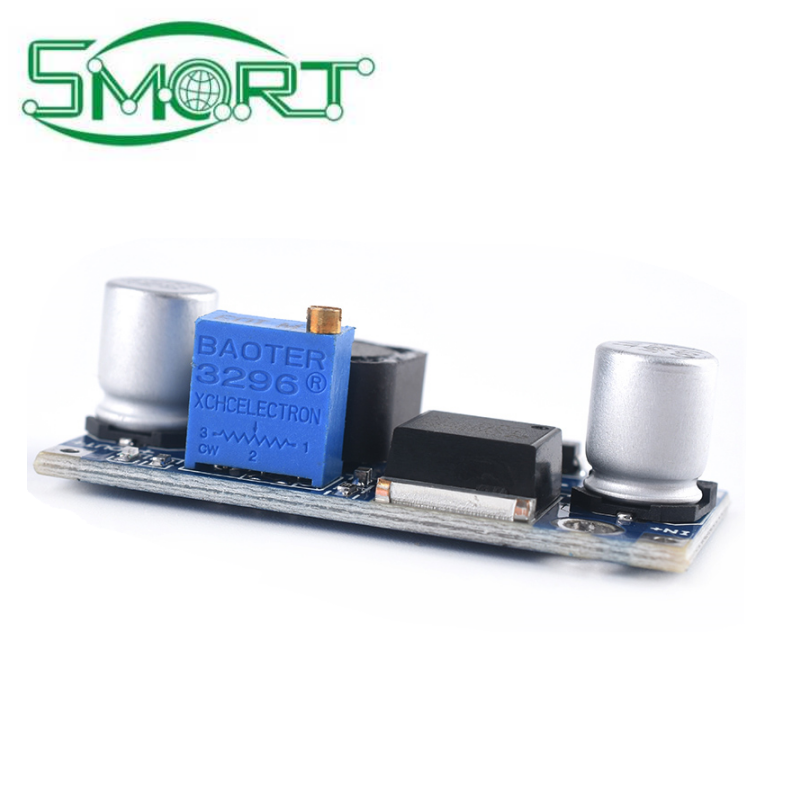

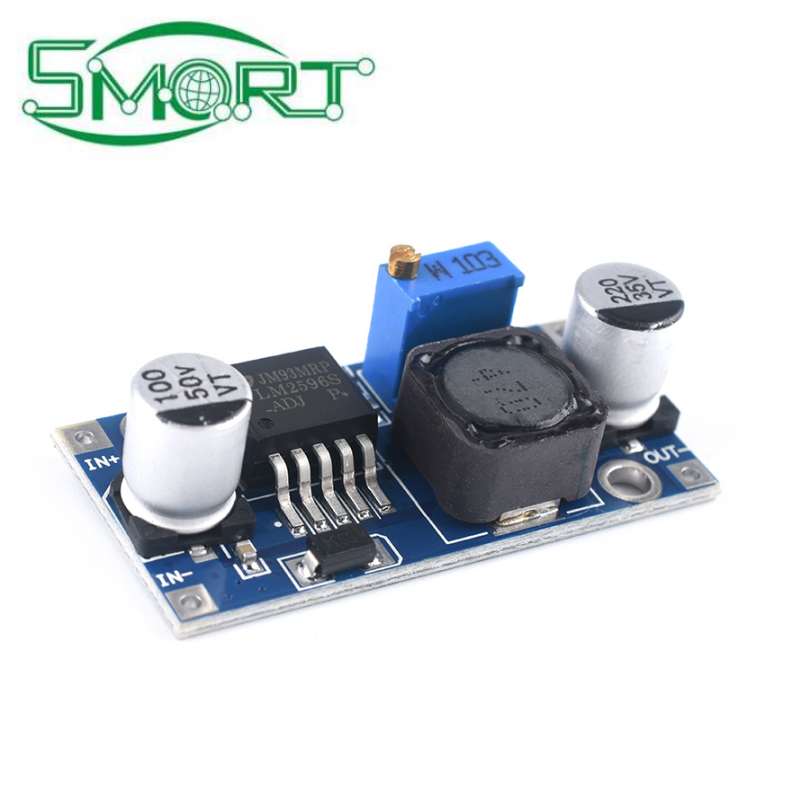

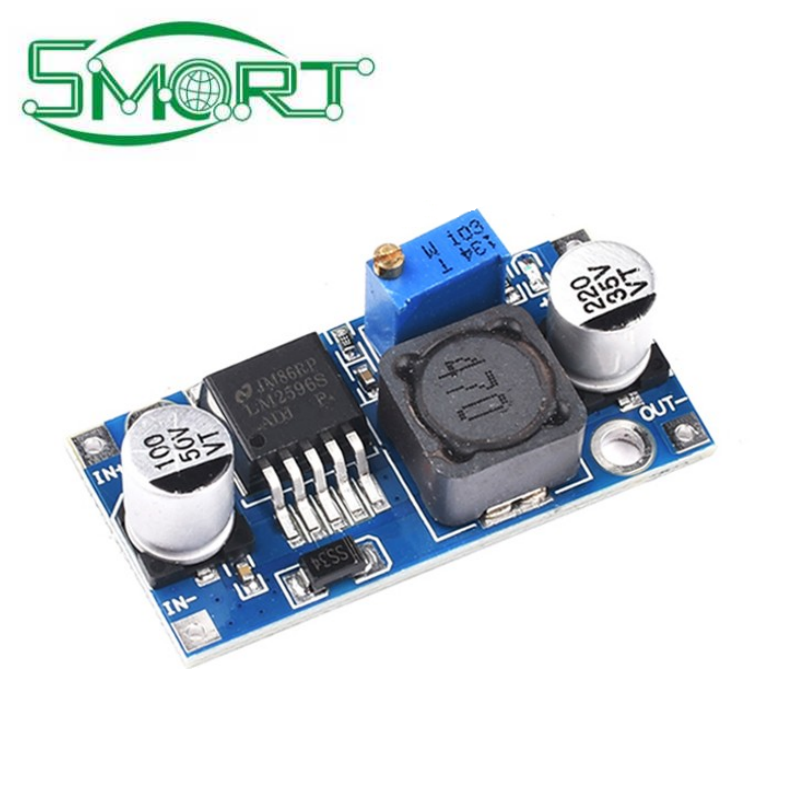

Smart Electronics Stabilized voltage power board 3A LM2576 12V24V to 5V3.3V LM2596S adjustable dc dc step-down module

Stabilized voltage power board 3A LM2576 12V24V to 5V3.3V LM2596S adjustable dc dc step-down module
shared：
Model Number
LM2596
Input voltage range
3V-40V
Output current
3A
Dimension
45*22*13mm

Product Parameters

【Input】: The input voltage from DC 3V to 40V must be 1. V or more higher than the output voltage and cannot be boosted 【 Output 】: The DC voltage is continuously adjustable from 1.5V to 35V, with a high efficiency limit and a maximum output current of 3A 【 Features 】: Using solid-state capacitors, 36U thickened circuit board, high Q value high-power inductance, with output LED indicator light 【 Size 】: 45 * 22 * 13MM, including potentiometer
Vehicle mounted voltage
stabilizing power supply
Just connect the input terminal
The output voltage can be adjusted between 1.25-30V of this module to
the car power supply,You can adjust
the potentiometer. to power many devices such as your phone, MP3,
MP4, PSP charging, etc.
Supply power to
electronic devices
When the device requires a 3-35V power supply and the corresponding voltage power supply is in hand, With this module, it is easy to adjust the voltage to the desired voltage Solve the problem.
System operating
voltage test
When working on a project, this
module can be used to debug
various voltage testing systems
and their working voltage ranges,making it very easy and convenient
