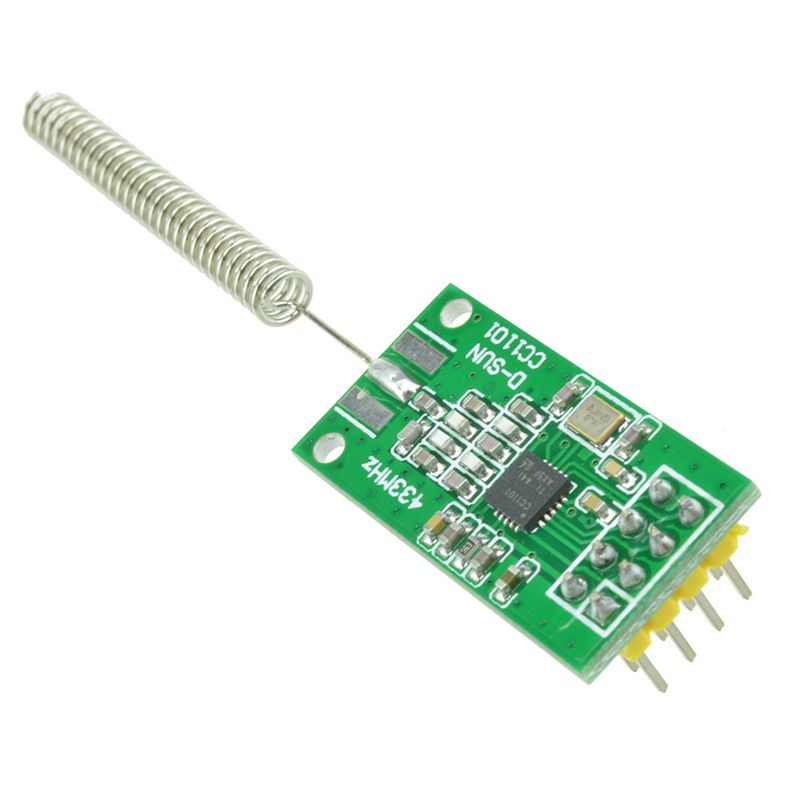

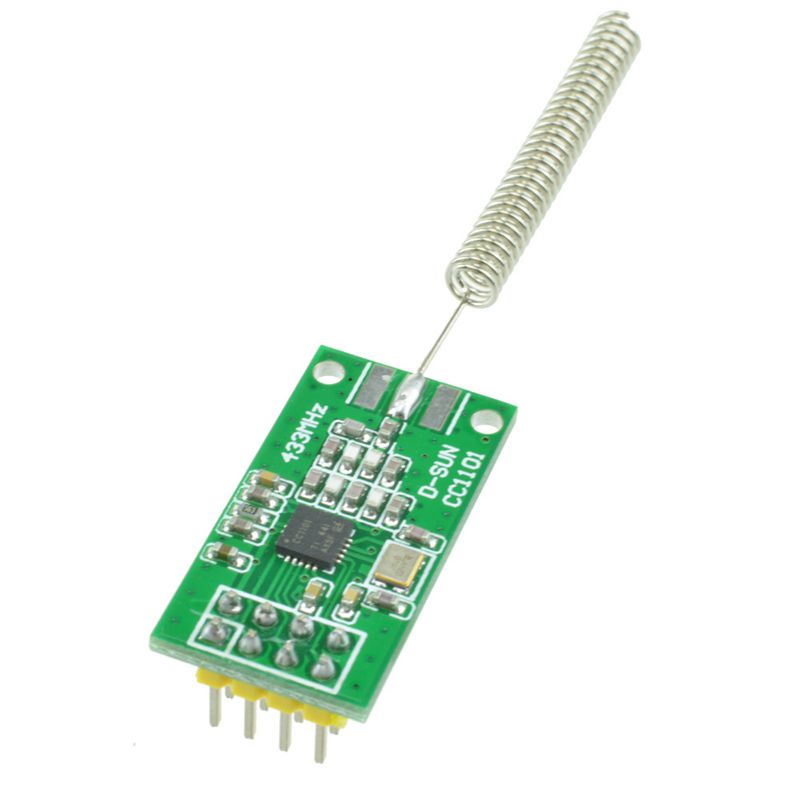

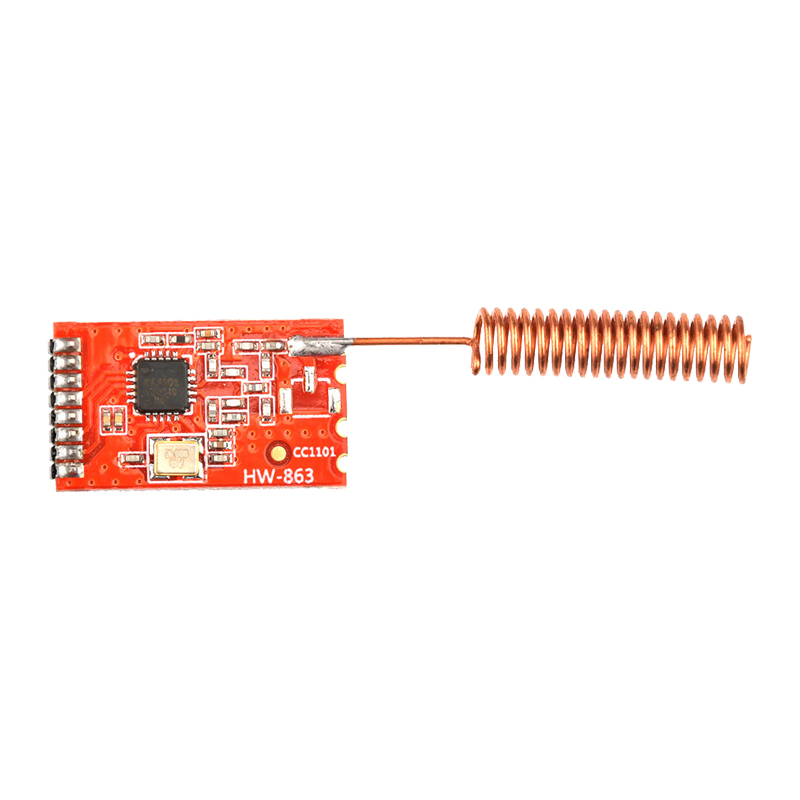

Smart Electronics Data transmission/transceiver/SI4432 industrial grade Wireless RF receiver cc1101 module

Data transmission transceiver SI4432 industrial grade Wireless RF receiver cc1101 module
shared：
Data transmission/transceiver/SI4432 industrial grade Wireless RF receiver cc1101 module
Product model
AS07-M11015
Chip solution
CC1101
Maximum power
10mW
Air speed
1.2K~500K
Packaging form
SMD/plug-in 1 * 8x1.27 SIP
Emission current
29mA
Communication interface
SPI
Central frequency band
433M
Power supply voltage
1.8-3.6V
Antenna form
spring/IPEX/external
Size
12 * 20.8mm
Reference distance
1000 meters
Module features: small size, excellent performance

SPI wireless module is a pure hardware wireless module, and its interface adopts SPI communication mode,

which requires an external MCU to program and configure the register parameters of the module chip to

complete data communication
