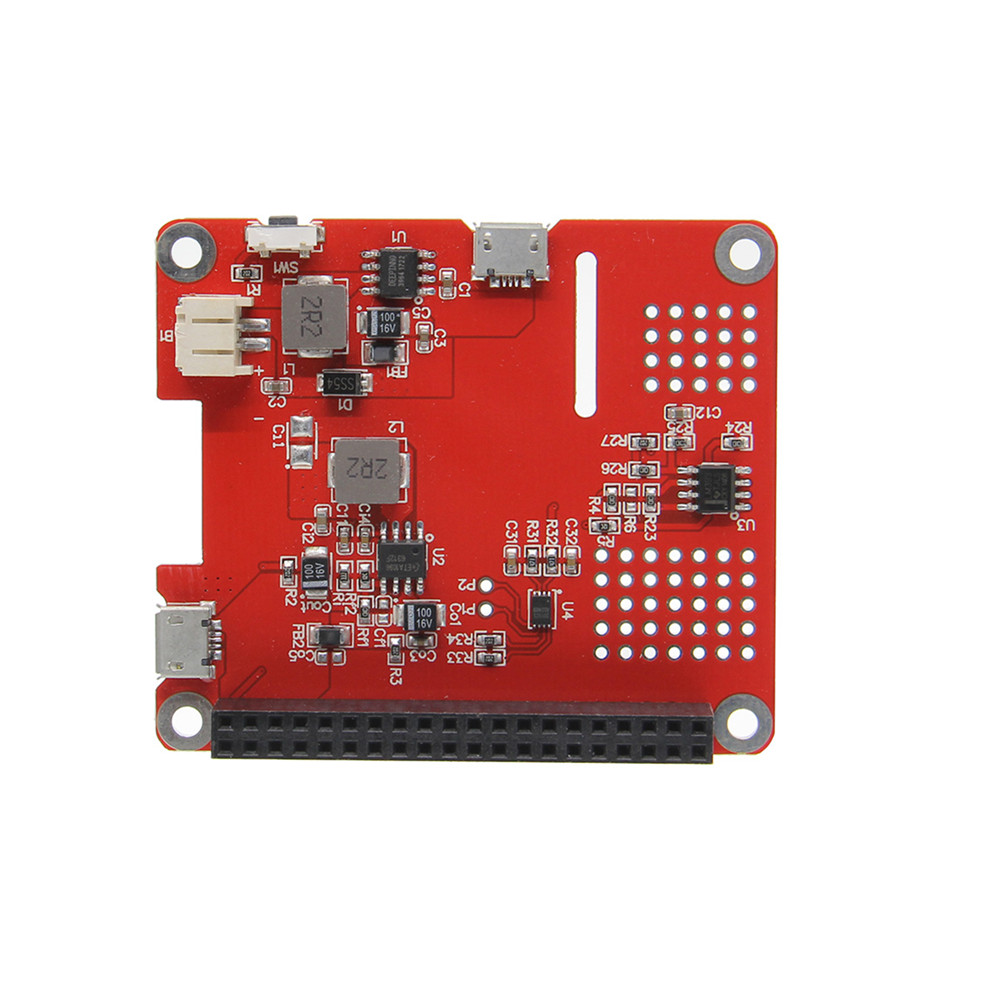

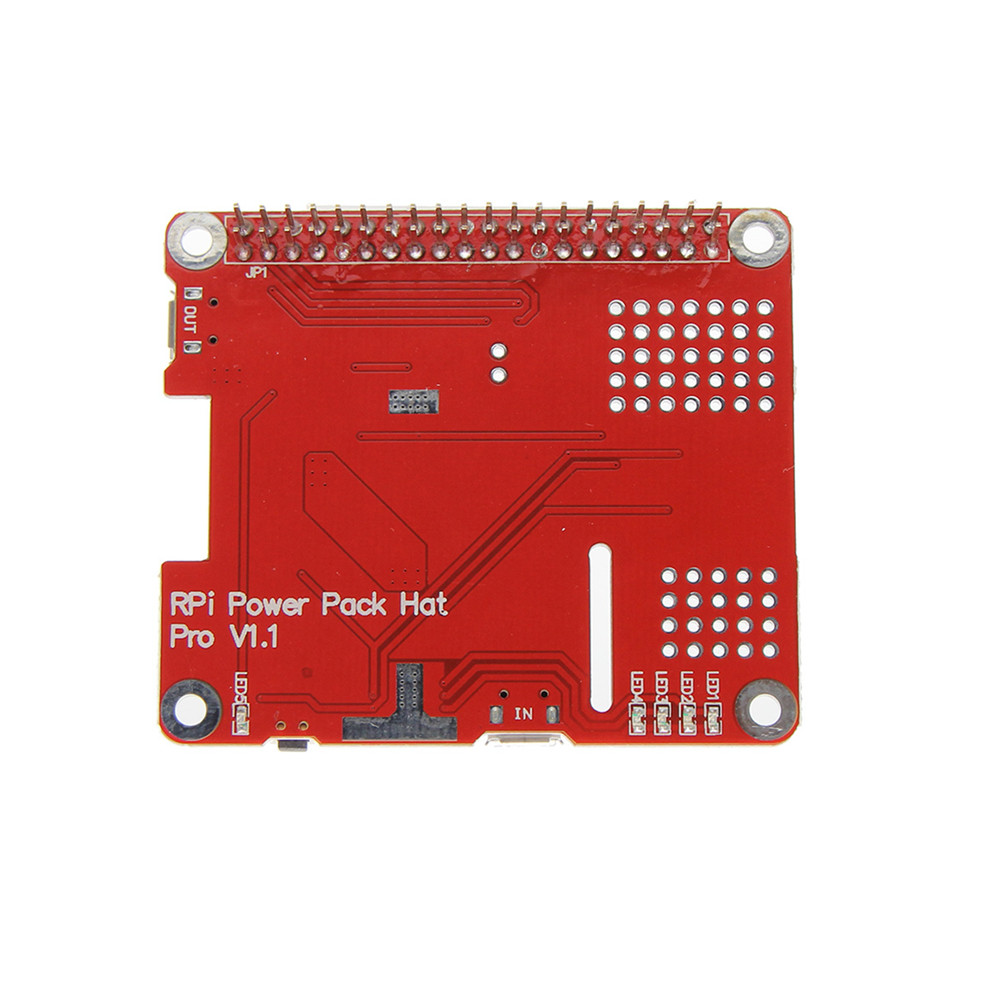

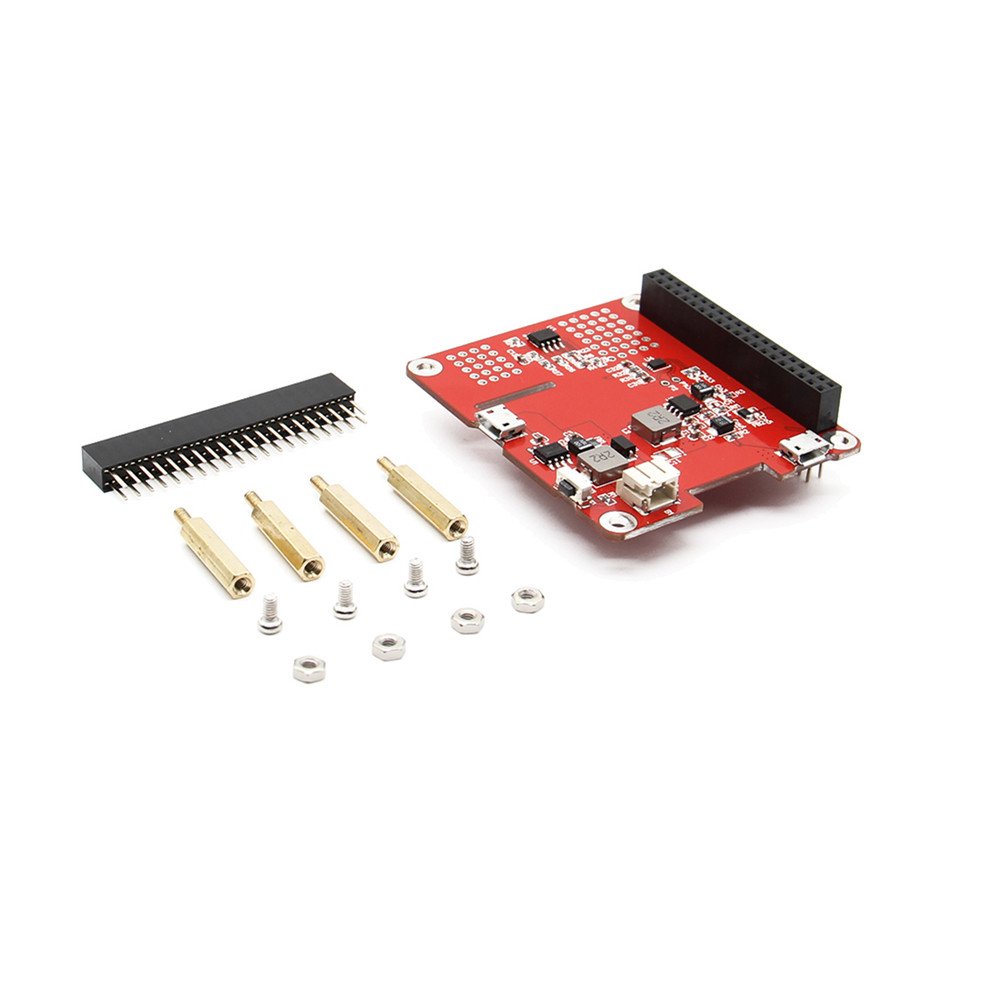

Power Supply for Raspberry Pi 3, Raspberry Pi Pro V1.1 UPS HAT I2C Lithium Battery Expansion Board

This is a power expansion Board especially designed for Raspberry Pi, which enables to
use the Raspberry Pi with a moveable power source. It's more convenient to use external
3.7V Lithium battery or 3.7V 18650 Lithium battery;

shared：


Description:

This is a power expansion Board especially designed for Raspberry Pi, which enables to
use the Raspberry Pi with a moveable power source. It's more convenient to use external
3.7V Lithium battery or 3.7V 18650 Lithium battery;


Specification:

  • Supports I2C Output with Capacity & Voltage Reading Function;

  • Two power supply modes: GPIO power output and USB power out;

  • Support Raspberry pi or Android & Apple Phone or Pad or other electronic device charging;

  • Supports charging while discharging,(it's stable output, the maximum output current can up

    to 1.8A while charging, but the chip heat will become larger.

    Maybe you can place a external heatsilk on clip.)

  • With 4 LED power indicator;

  • Standard dimension of Raspberry Pi HAT;

  • Removable battery, The external lithium battery requirements: 3.7V lithium battery;

  • Built-in power path management, perfect support charging While discharging.

  • Intelligent 3-stage charging (trickle, constant current, constant voltage), it can effectively extend the battery life.

  • Maximum discharge current: 2A, Maximum charge current: 1.8A;

  • Output protection: overcurrent, short circuit, undervoltage protection;

  • Input protection: overvoltage, overcharge, undervoltage protection



Name
Phone
Email
Corporate name
Address
Leaving Message*

Verification code
Submit

Rotating potentiometer knob cap Digital control module Rotary encoder module

Digital control module Rotary encoder module rotating potentiometer knob cap Working voltage: 5 v A circle of pulse count: 20 Rotary encoder through rotation direction and reverse direction can count is in the process of the number of output pulse, rotating counter unlike potentiometer, the rotation count there is no limit.Cooperate with the buttons on the rotary encoder, can be reset to the initial state, that is, from zero start counting.

Smart Electronics TP4056 18650 lithium battery module 3.7V 3.6V 4.2V lithium battery charging board 1A overvoltage protection

TP4056 18650 lithium battery module 3.7V 3.6V 4.2V lithium battery charging board 1A overvoltage protection

Wedding special igniter 12V DC universal high voltage generator pulse high voltage module output 60KV arc

500W Mono Channel Digital Amplifier Class D HIFI Power Amp Board 20Hz-20KHz Digital Amplifier Module

Use precautions: 1. Rated supply voltage is ±65V, ±58---±70V range, do not over 70V! positive and ​negative do not pick wrong 2. Recommended power supply ±65V 3. Recommended 4-8Ω / 10-18inch speaker 4. Carefully check before electricity, ensure the wiring is correct.

Raspberry pi zero camera module OV5647 500W RPI zero v1.3 camera

5 million pixels Light-sensitive chips OV5647 Camera parameters: The CCD size: 1/4 inch Viewing Angle (Diagonal) : 72.4 degrees The best pixel sensor: 1080 p Static image resolution is 2592 x 1944 Support 1080 p30, 1080 p60 and 720 x480p60/90 video footage Overall size: 60 mm x 11.5 mm x 5 mm

Smart Electronics 5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter module XL4015

5A DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter module XL4015 Three in one: (1) Use as an ordinary step-down module with over-current protection capability; (2) Used as a charger for various voltage values of lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery pack), used in solar panels, wind turbines and other occasions; (3) Use as a high-power LED constant current drive module

QC2.0 QC3.0 Quick Charging USB Mobile Phone Charging Board DC Step-down Module

Smart Electronics AMG8833 Module GY- AMG8833 IR 8x8 Infrared Camera Array Temperature Sensor Module

AMG8833 Module GY- AMG8833 IR 8x8 Infrared Camera Array Temperature Sensor Module

High power three channel amplifier module TDA2050+TDA2030 2.1 subwoofer amplifier circuit board

BH1750FVI digital Light Intensity BH1750 Light Module Light Ball DC5V

Keyes BH1750FVI Digital Light Sensor Module is a kind of integrated circuit of digital light intensity sensor for two-wire serial bus interface. Using the light intensity data collected by the module, the brightness of the LCD and keyboard background lamps can be adjusted. Module resolution can detect wide range of light intensity changes.

DC 30W adjustable booster module LM2587 outperforms the lm2577 in power 5A

Smart Electronics JDY-34 SPP dual-mode Ble module SPP-C host printer Ble module

JDY-34 SPP dual-mode Ble module SPP-C host printer Ble module Model: JDY-34 Antenna type: PCB board mounted antenna Working frequency band: 2.4G Transmission power: 4dB (peak) Communication interface: UART Working voltage: 2.1V-3.6V Working temperature: -40 ° C-80 ° C Receiving sensitivity: -91dbm Transmission distance: 40 meters Module size: 27 * 12.88 * 1.8mm Bluetooth version: BLE4.2+SSP dual-mode (backward compatible with 4.2, 4.0, 3.0, 2.1, 2.0) Transmission rate: BLE14 K Bytes/s SPP 40K byte/s (Android or computer Bluetooth tested 40K byte/s speed) Command parameter saving: parameter configuration and power-off data are saved SIM welding temperature:<260 ℃ Working current: 15mA

Other Customization: Customized packaging(Min. Order: 20 Pieces) Trade Assuranceprotects your Alibaba.com orders Payments: Online Transfer Aliba

Main control chip: PIC16F877A (DIP40) Lead IO: All IO 2.54mm pin headers are taken out for convenient secondary development! Download interface: standard ICSP interface Crystal oscillator circuit: 4Mhz system crystal oscillator Voltage input: USB-5V input DV-5V input CR20123V backup battery Button LED: 1 power switch, 1 reset button, 4 independent buttons 4*4 matrix keyboard, 8 green LEDs, 1 buzzer

Smart Electronics HC-08 BLE4.0 master-slave integrated Bluetooth module CC2540 wireless serial communication data transmission module

HC-08 BLE4.0 master-slave integrated Bluetooth module CC2540 wireless serial communication data transmission module Product model: HC-08 Working frequency band: 2.4G Communication interface: UART3.3VTL level Working voltage: 3.0-3.6V RSSI support: not supported Communication level: 3.3V Transmission power: 4dBm Reference distance: 80 meters Air speed: 2Mbps Antenna interface: built-in PCB antenna Communication current: 0.4uA Receiving sensitivity: 85dbm@2Mbps Working humidity: 10%~90% Storage temperature: 40 ℃ -+80 ℃ Working temperature: -25 ℃ -75 ℃

MH-Z19B CO2 detection sensor module Infrared carbon dioxide sensor

MH-Z19B 0-5000PPM Mh-z19c 400-5000ppm C is an upgrade of B Carbon dioxide gold shell (non mh-z19) 400-5000ppm Carbon dioxide white shell (non mh-z19) 400-5000ppm

Smart Electronics IPS 0.96-inch TFT display IPS LCD screen 0.96 "st7735 IPS display screen 0.96 inch LCD Module

IPS 0.96-inch TFT display IPS LCD screen 0.96 "st7735 IPS display screen 0.96 inch LCD Module

MAX485 Module RS-485 TTL to RS485 MAX485CSA Converter Module

1 on-board MAX485 chip , is a tool for RS-485 communications , low-power , Slew-Rate Transceiver 2 onboard then 5.08 (mm) pitch 2P terminal for easy wiring RS-485 communication 3 the chip has drawn all of the pins can be controlled by the microcontroller operation 4 Working voltage : 5V 5 board size : 44 (mm) x14 (mm)

Smart Electronics 8.29 Megapixel USB Camera Module 4K30 fps Industrial Camera IMX678 Modules

8.29 Megapixel USB Camera Module 4K30 fps Industrial Camera IMX678 Modules

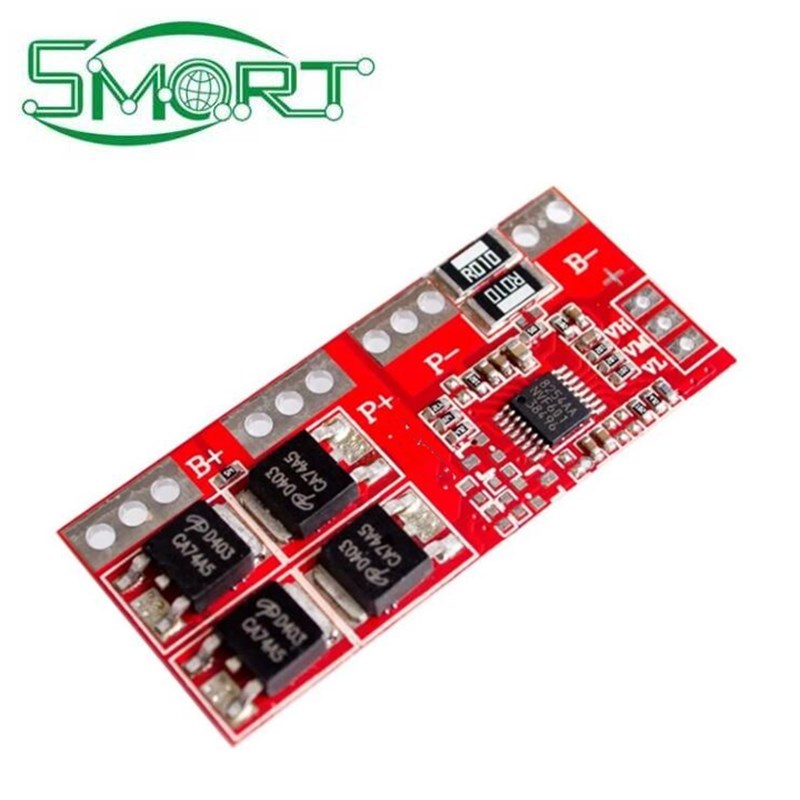

Smart Electronics 4S 30A High Current Li-ion Lithium Battery 18650 Charger Protection Board 14.4V 14.8V 16.8V BMS
