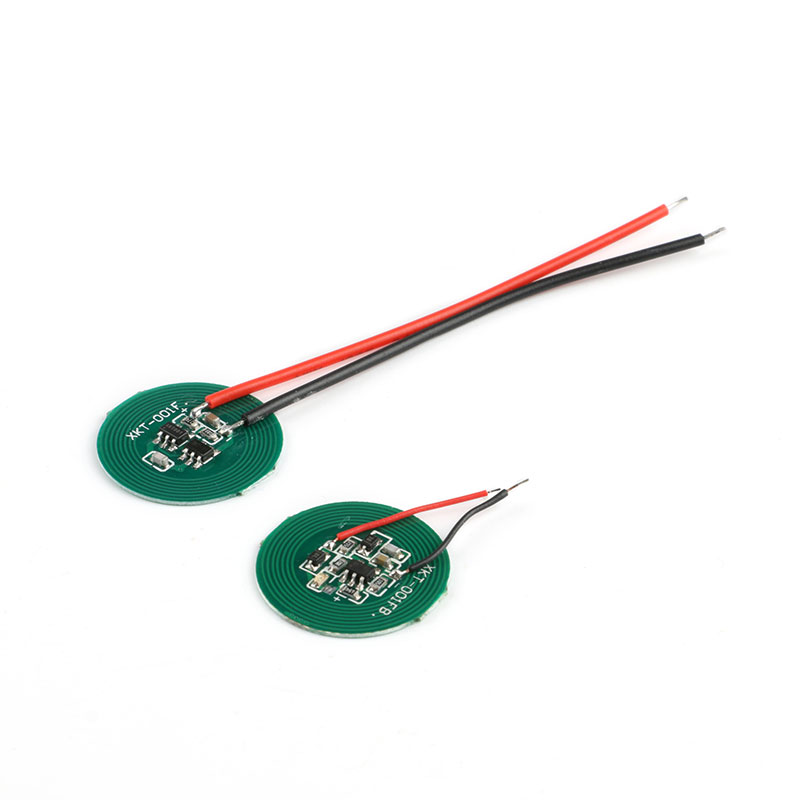

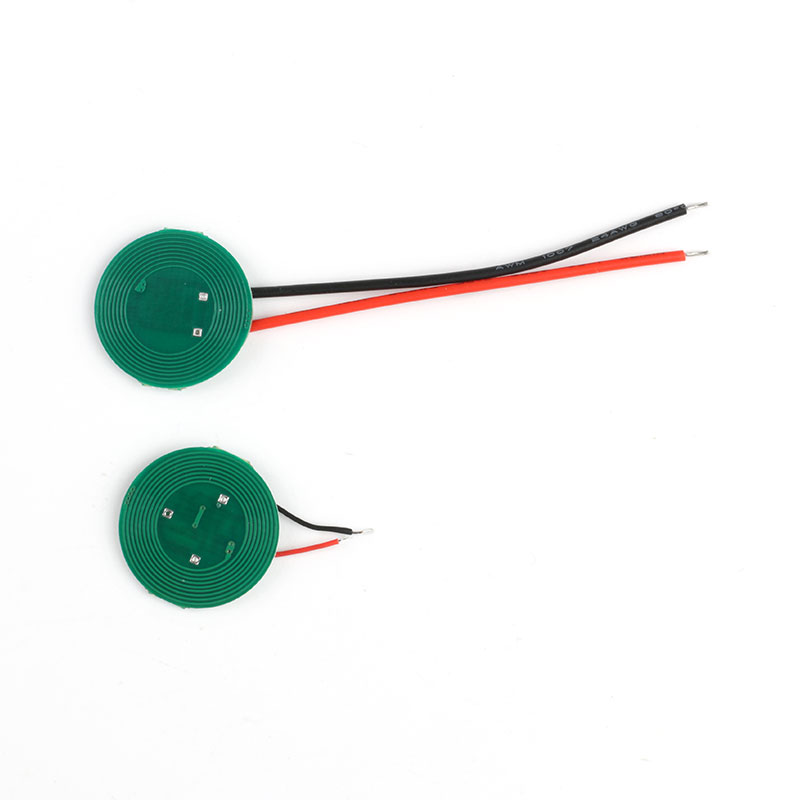

XKT001-04 small PCB 20mm wireless charging module wireless power supply module

Input voltage of transmission module: 5 V
Emission PCB outer diameter: 20mm
Receiving PCB outer diameter: 20mm
Output current 4.2 V40mA
Equipped with anti backflow devices, it can directly charge small lithium batteries
Suitable for various subtle product applications

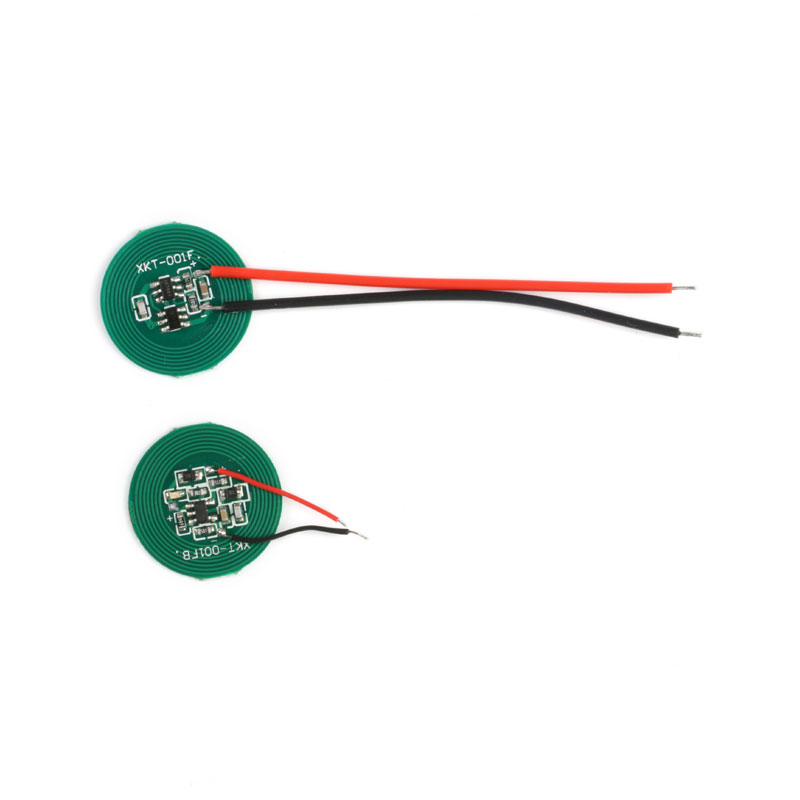

The two chips on the small board are the transmitting module, and the one chip on the small board is the receiving module, which cannot be reversed
shared：

20mm small PCB wireless charging module wireless power supply module XKT001-04
Input voltage of transmission module: 5 V Emission PCB outer diameter: 20mm Receiving PCB outer diameter: 20mm Output current 4.2 V40mA Equipped with anti backflow devices, it can directly charge small lithium batteries Suitable for various subtle product applications The two chips on the small board are the transmitting module, and the one chip on the small board is the receiving module, which cannot be reversed
