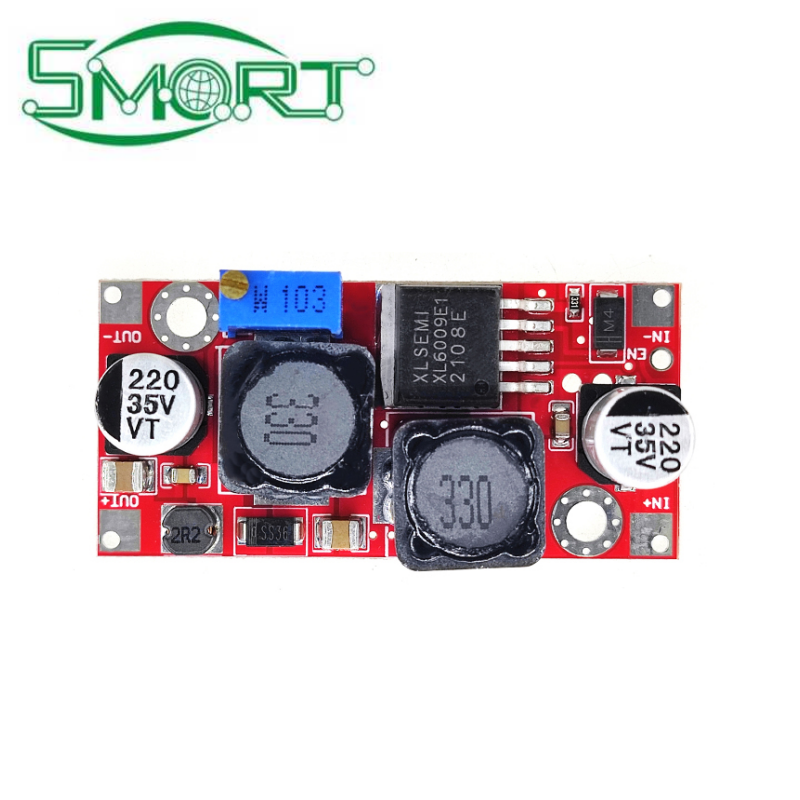

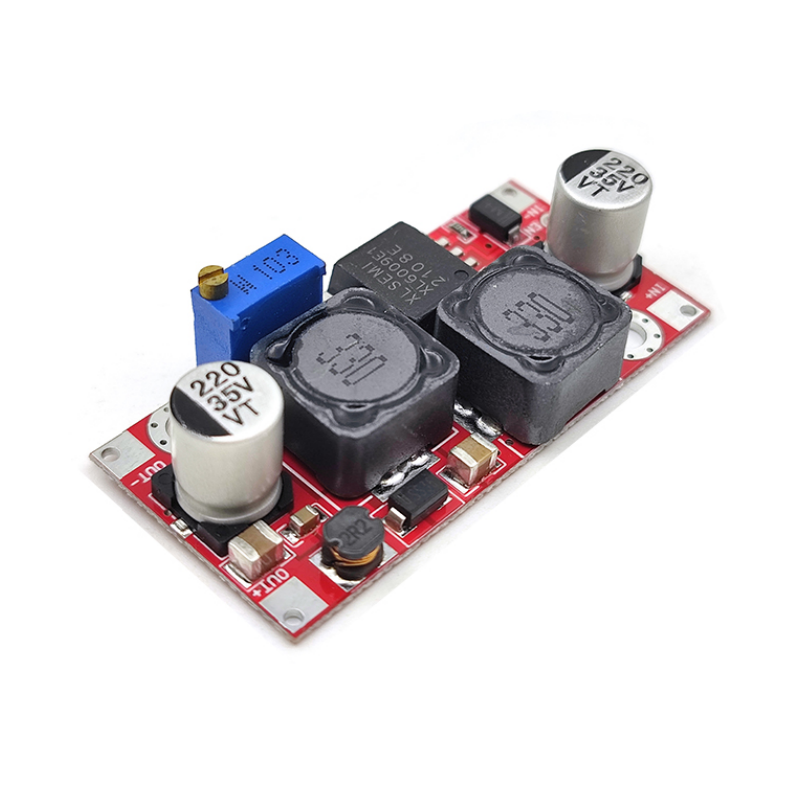

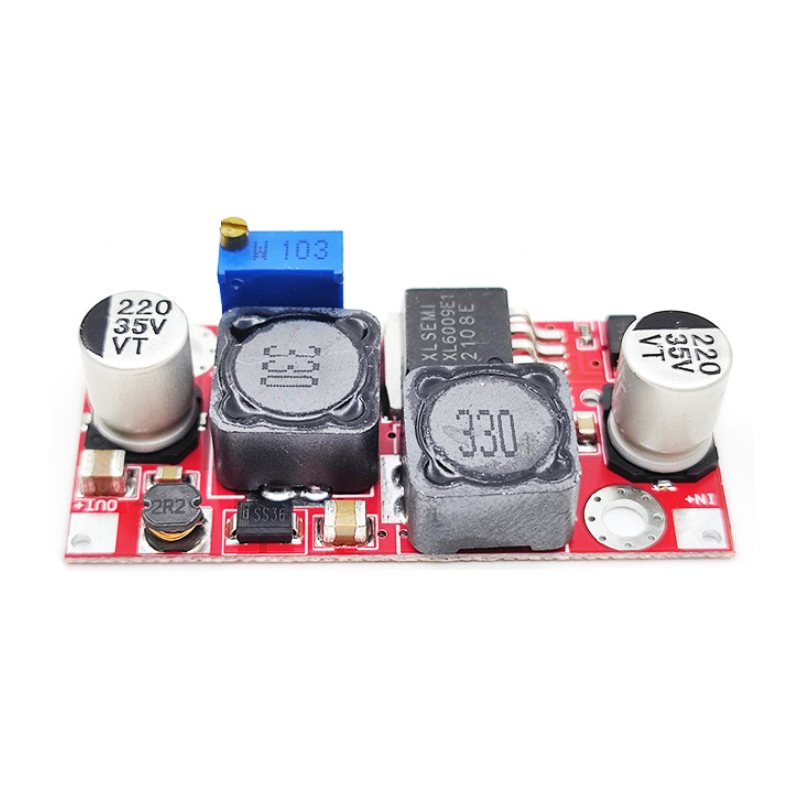

XL6009 DC-DC boost adjustable power supply module board output 4A current wide voltage 5V

Product Introduction
1. With a working frequency of up to 220Khz and LC filtering circuit, the output ripple is very low.
2. Imported TDK inductor to minimize heating and interference.
3. Input and output three MLCC multilayer ceramic capacitors, anti-interference and improving stability.
4. The PCB adopts kb A-grade board material
5. Built in MOSFET, it can achieve 94% efficiency
6. An enabling port has been added to control whether the boost circuit is working.
Size: 49 (length) * 23.4 (width) * 11.4 (height) mm (excluding potentiometer)
(With potentiometer height: 13.5M)

shared：

Model Number	XL6009 Red output adjustable version
Type	Automatic boost and drop module
Brand Name	Smart

Product Introduction

1. With a working frequency of up to 220Khz and LC filtering circuit, the output ripple is very low. 2. Imported TDK inductor to minimize heating and interference. 3. Input and output three MLCC multilayer ceramic capacitors, anti-interference and improving stability. 4. The PCB adopts kb A-grade board material 5. Built in MOSFET, it can achieve 94% efficiency 6. An enabling port has been added to control whether the boost circuit is working. Size: 49 (length) * 23.4 (width) * 11.4 (height) mm (excluding potentiometer) (With potentiometer height: 13.5M)

Module parameters

Module nature: Non isolated voltage boosting module Input voltage: 5-32v Output voltage: continuously adjustable (12-35v) Fixed output (optional between 1.2-35V), please inform us when purchasing. Output current: 15A (MAX) Input current: 4A (MAX) Output power: natural cooling 20W, with heat sink 25W (MAX) actual power Maximum output power=input voltage * 4A * conversion efficiency

Conversion efficiency: The working efficiency of commonly used voltage and current measured (the following is for reference only) Output ripple: input 12V output 24V 0.5A ripple 30MV20M bandwidth (for reference only)

Working temperature: Industrial grade (-40 ° C to+85 ° C) (If the ambient temperature exceeds 40 ° C, please reduce the power or enhance heat dissipation) Full load temperature rise: 45 ° C Working frequency: 220Khz No-load current: typical 15mA (5V to 12V) Load adjustment rate: ± 0.5% Voltage adjustment rate: ± 05% Dynamic response speed: 5% 200us Enable control port: Yes, high level 1.4V - VI IN (ON), low level 0-0.8V (OFF), default high level Short circuit protection: None (please add a fuse or protective circuit to the input) Input reverse protection: None, please cooperate with our reverse protection board or connect diodes in series at the input Installation method: can be fixed with screws (fixing holes of 3mm), with 2 fixing holes Wiring method: Welding, with pins added, can be directly soldered onto the PCB

Kind Reminder

The use of electronic products requires a certain knowledge foundation,

please purchase with caution.
