Smart Electronics 10 layer gold-plated 32U impedance HDI circuit boards

10 layer gold-plated 32U impedance HDI circuit boards
shared：

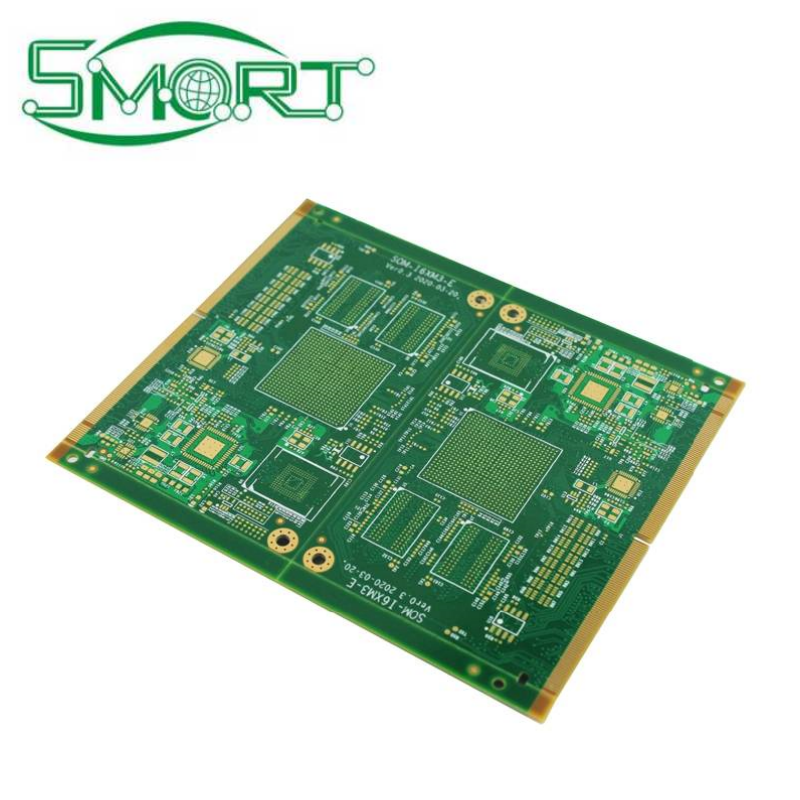

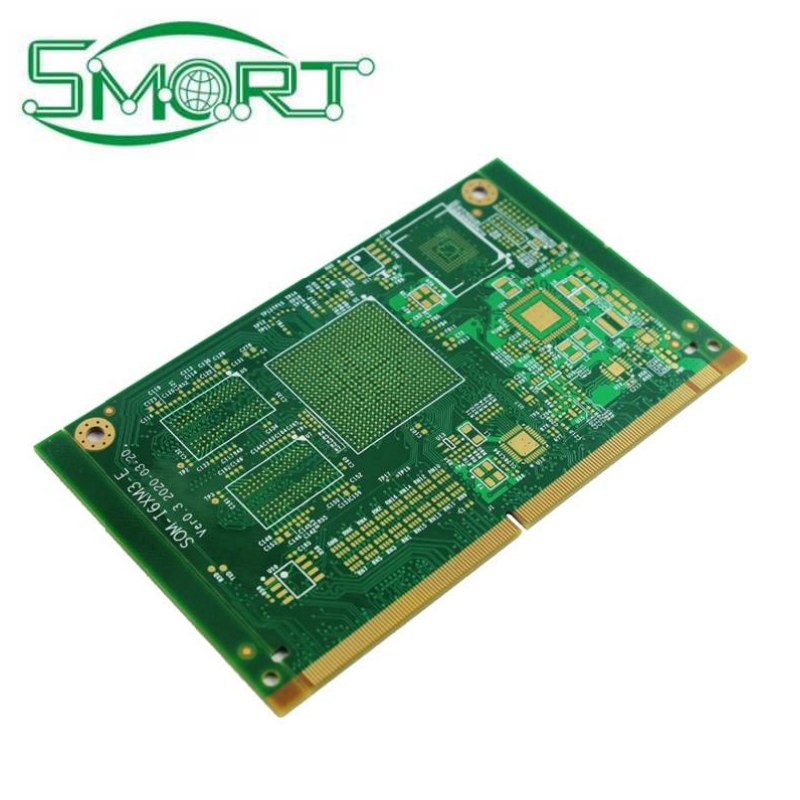

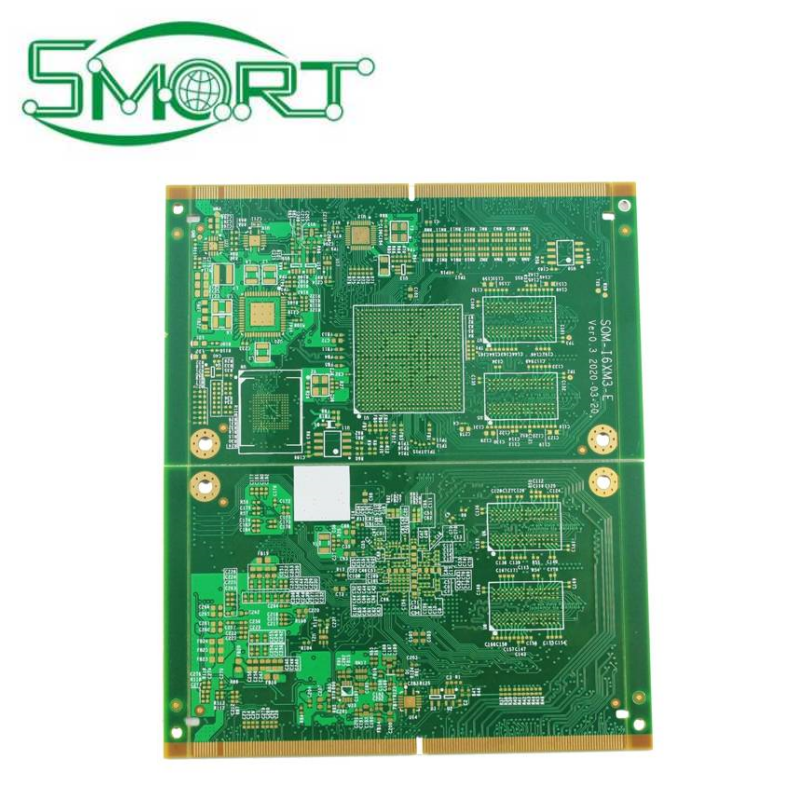

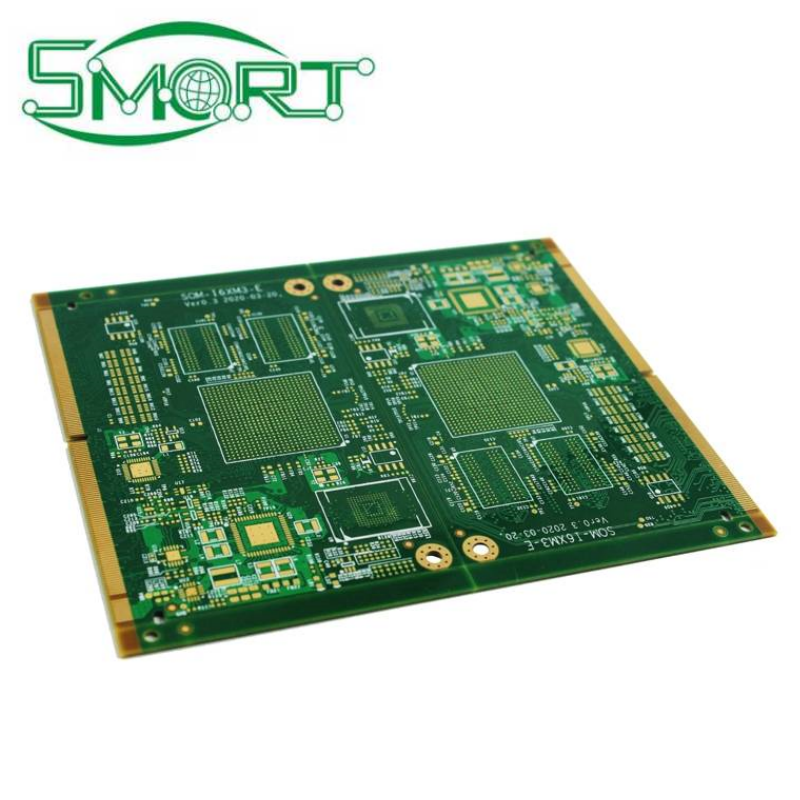

The 10-layer gold-plated 32U impedance HDI (High Density Interconnect) circuit boards are highly advanced and sophisticated electronic components.


These circuit boards feature ten layers of conductive materials and insulating substrates, which provide increased routing capacity and enable complex circuit designs. The gold plating offers several significant advantages. Firstly, it provides excellent electrical conductivity, ensuring reliable signal transmission and low contact resistance. This is crucial for high-frequency and high-speed applications where signal integrity is of utmost importance.


The 32U impedance control is a critical feature that helps to ensure consistent and optimized electrical performance. By precisely controlling the impedance of the circuit traces, signal reflections and distortions can be minimized, resulting in improved signal quality and reduced electromagnetic interference.


HDI technology allows for higher component density and smaller form factors. The fine-pitch interconnects and microvias enable the integration of more components and functionality into a smaller space. This is particularly beneficial for applications where space is limited, such as in mobile devices, wearables, and aerospace electronics.


The manufacturing process of these 10-layer gold-plated 32U impedance HDI circuit boards is highly complex and requires advanced equipment and expertise. Precise layer alignment, high-resolution imaging, and controlled plating processes are essential to ensure the quality and performance of the boards.


In conclusion, the 10-layer gold-plated 32U impedance HDI circuit boards offer superior electrical performance, high component density, and reliable operation. They are ideal for a wide range of applications that demand advanced electronics, including telecommunications, computing, medical devices, and automotive electronics.
