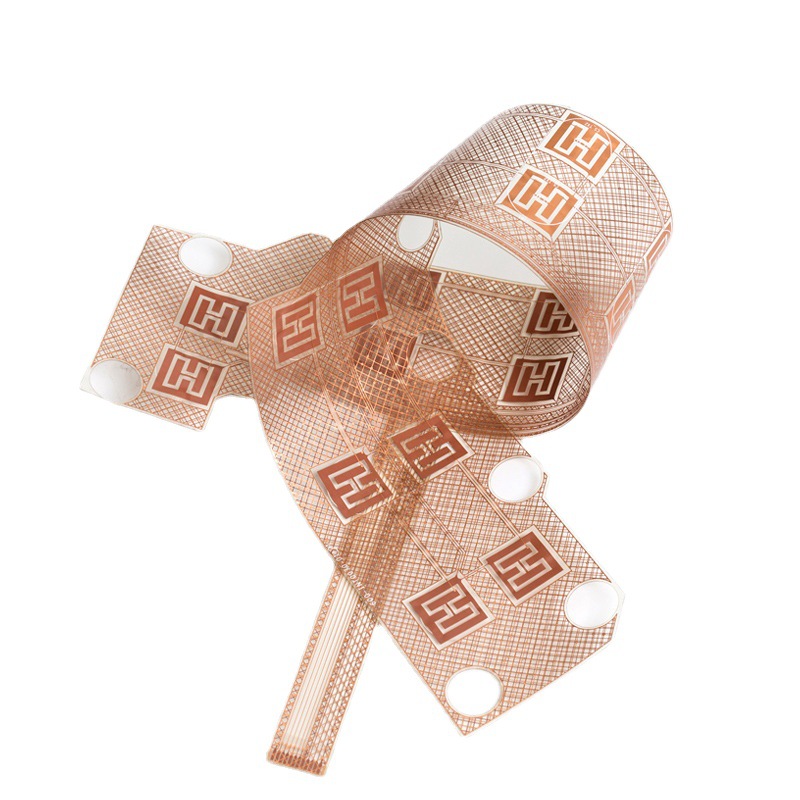

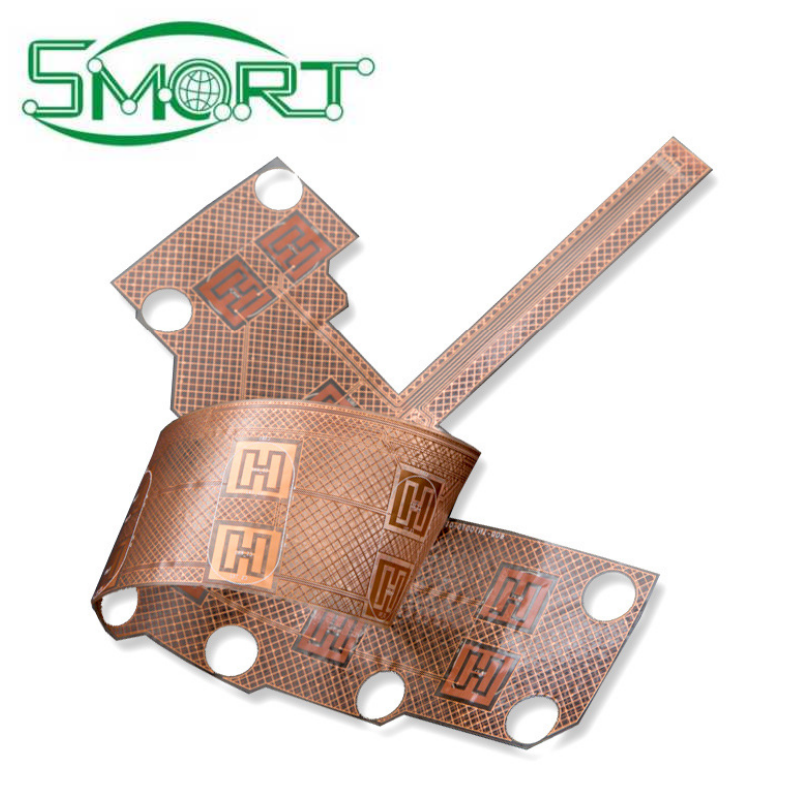

Smart Electronics Shenzhen Original FPC Manufacturer Custom Transparent Flex PCB

Shenzhen Original FPC Manufacturer Custom Transparent Flex PCB

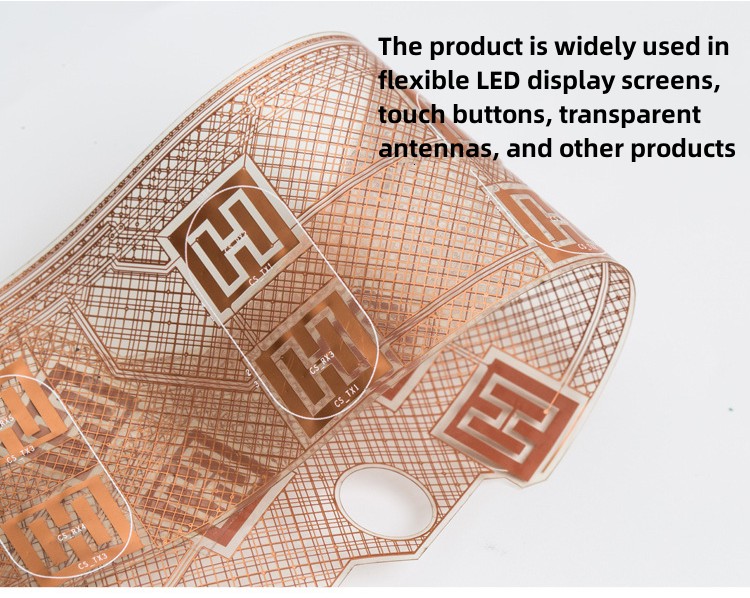

The product is widely used in flexible LED display screens,touch buttons, transparent antennas, and other products
Customized processing: Yes

Brand: Smart
Model: Transparent FPC
Layers: double-sided
Substrate: Polyester film
Insulation material: Polyphenylene oxide resin (PPO)
Flame retardant properties: VO
Processing technology: sinking silver
Enhancement material: PI
Insulation resin: PI
Product nature: Thin
shared：

Customized processing: Yes
Brand: Smart
Model: Transparent FPC
Layers: double-sided
Substrate: Polyester film
Insulation material: Polyphenylene oxide resin (PPO)
Flame retardant properties: VO
Processing technology: sinking silver
Enhancement material: PI
Insulation resin: PI
Product nature: Thin
