L298N motor driver board module intelligent vehicle robot accessory H-bridge drive stepper motor driver

shared：

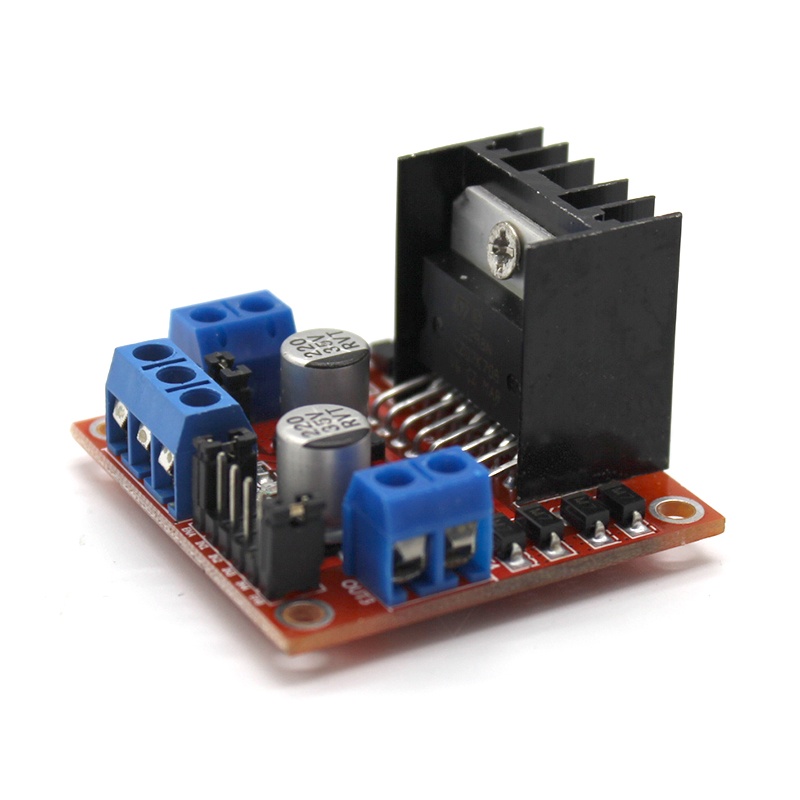

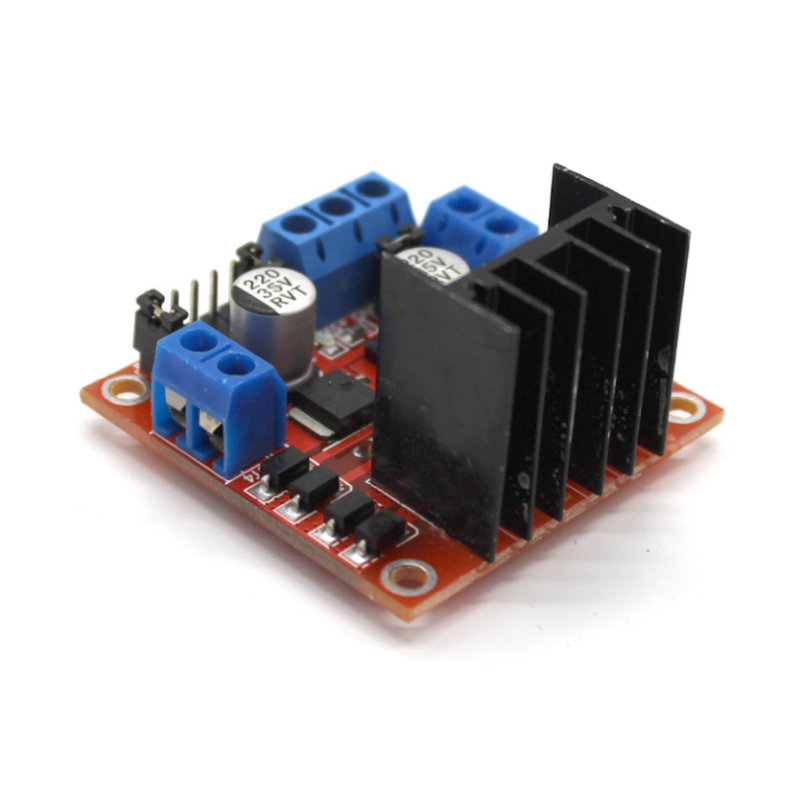

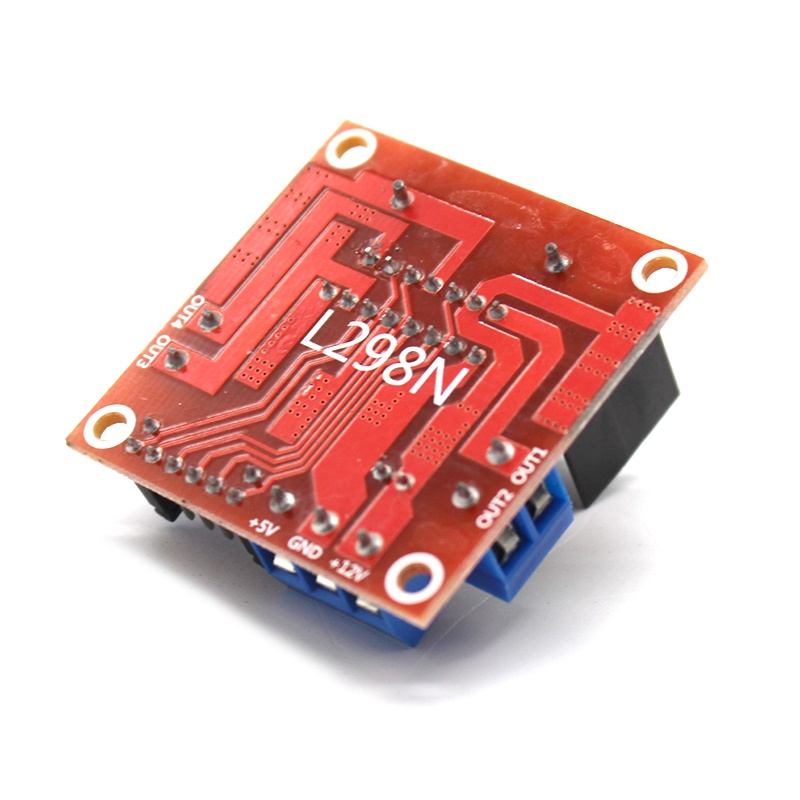

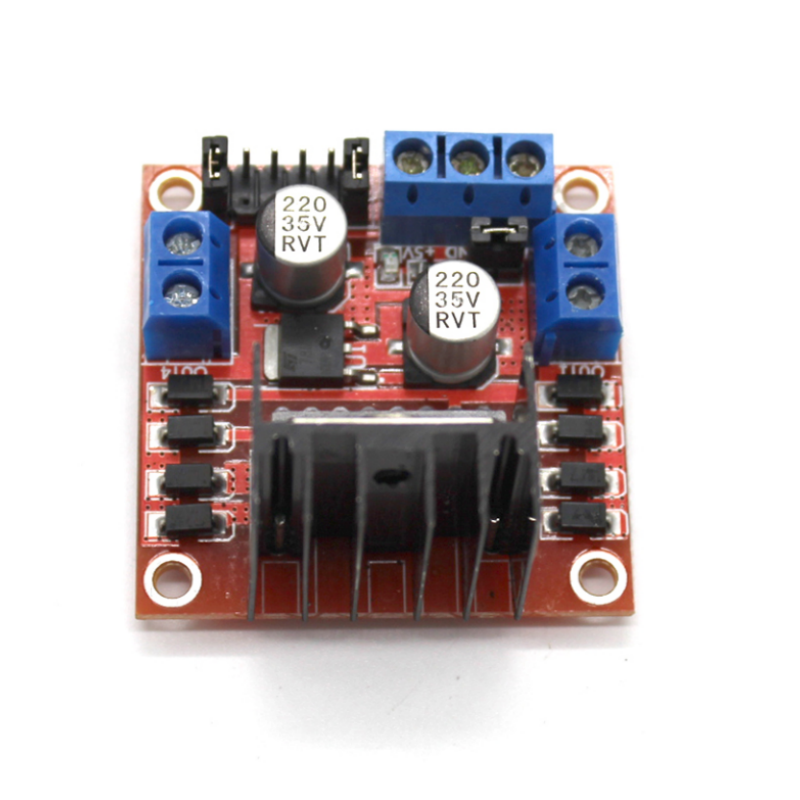

L298N motor driver board module intelligent vehicle robot accessory H-bridge drive stepper motor driver

Dual H-bridge motor drive (dual circuit), L298N motor drive board module, low heat generation,

strong anti-interference ability.

(1) Size 43 * 43 * 27mm (2) Weight 30g (3) Logic voltage 5V (4) Drive voltage 5V-35V (5) Logic current 0mA-36mA (6) Drive current 2A (MAX single bridge) (7) Storage temperature -20 ℃<->+135 ℃ (8) Power limit 25W
