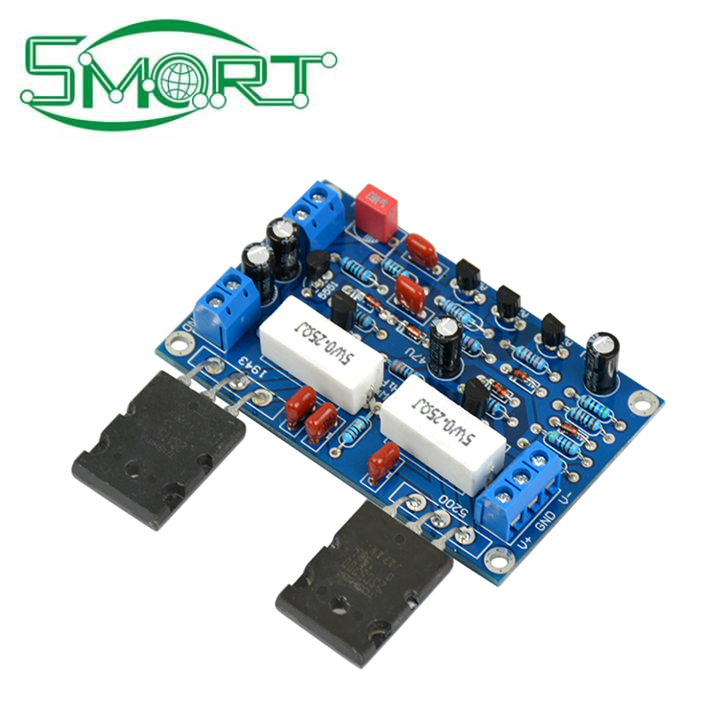

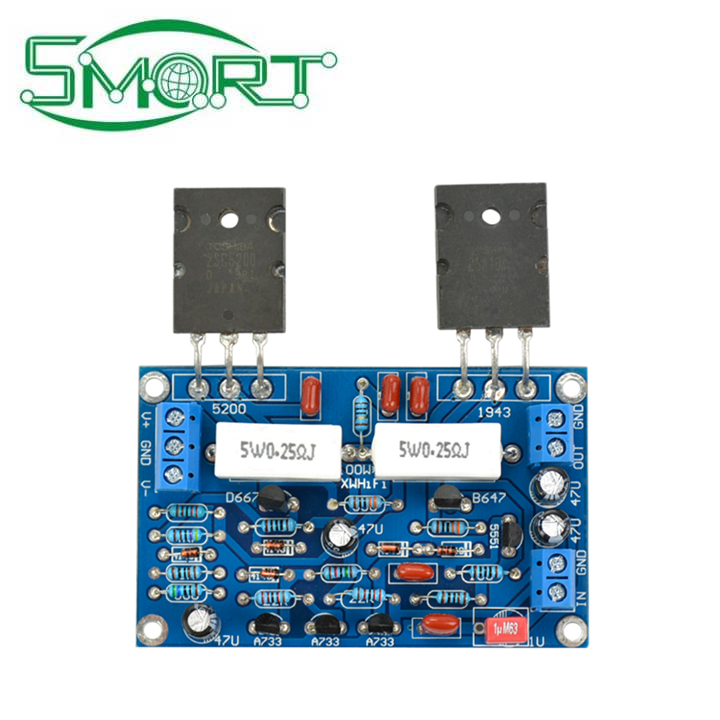

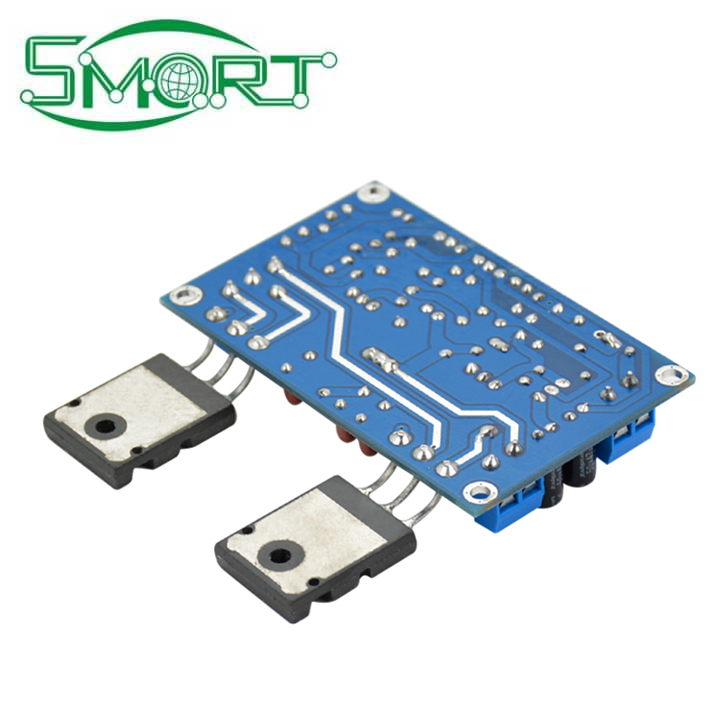

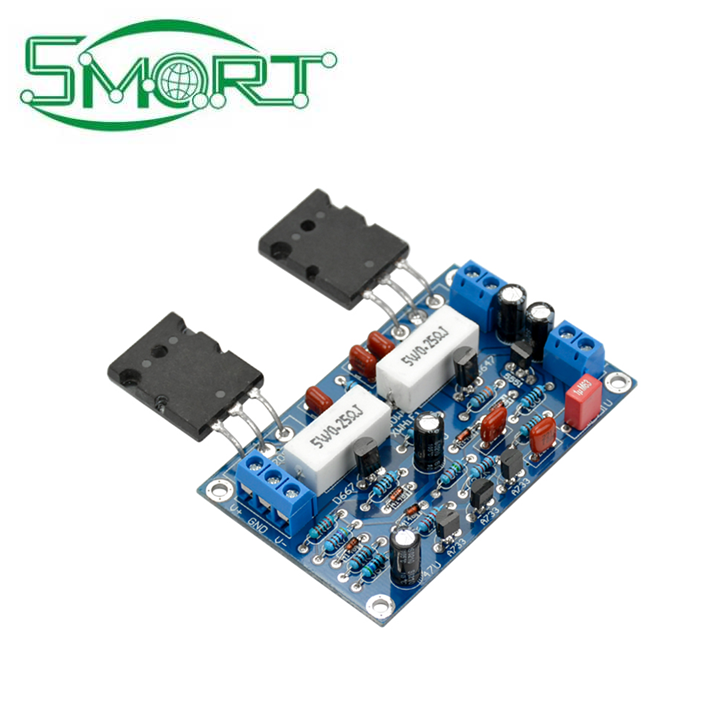

Smart Electronics 100W 2SC5200+2SA1943 Audio Amplifier Board Mono Channel HIFI Power Amplifier Board Dual DC35V

100W 2SC5200+2SA1943 Audio Amplifier Board Mono Channel HIFI Power Amplifier Board Dual DC35V

Operating voltage: Dual DC 10 - 45V recommended Dual DC 35V
Rated output power :100W(4 Ohm ± 35V)
Maximum output power : 150W (4 Ohm ± 45V) enormous heat, is not recommended

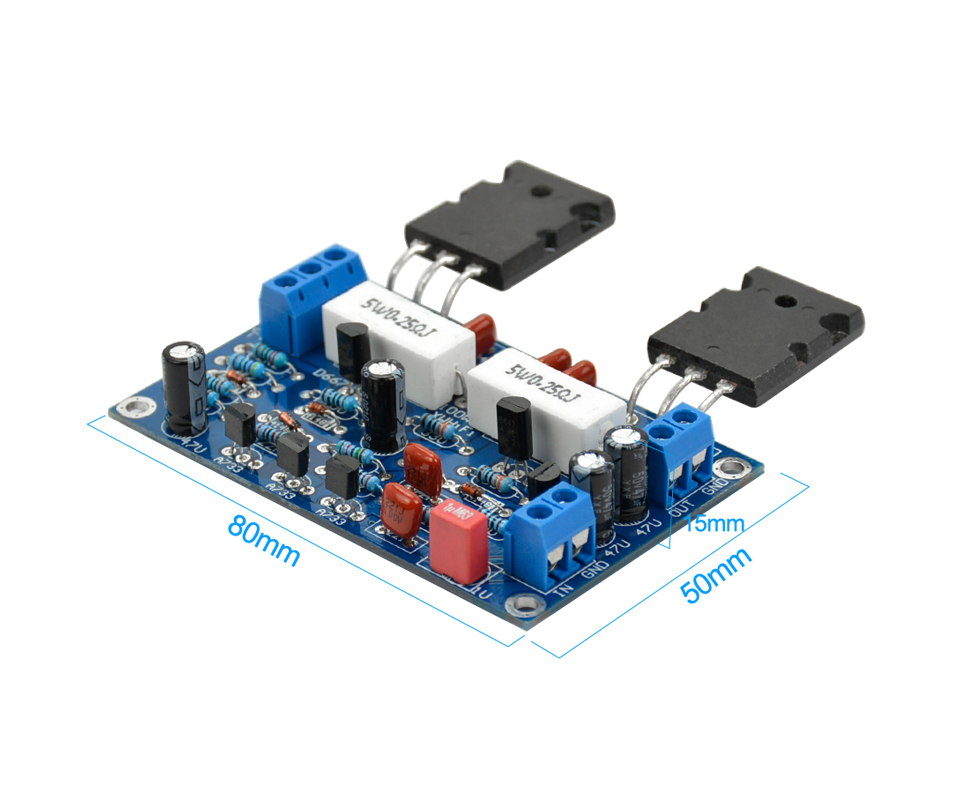

PCB size :30 x 50 x 35mm
Pitch : 5.08mm
Hole distance between two power tube : 47mm
shared：

Operating voltageDual DC 10 - 45V recommended Dual DC 35V
Rated output power100W(4 Ohm  ± 35V)
Maximum output power150W (4 Ohm    ±  45V) enormous heat, is not recommended
PCB size30 x 50 x 35mm
Pitch5.08mm
Hole distance between two power tube47mm
