Smart Electronics HC-SR505 Mini sensor di movimento a infrarossi PIR sensor preciso a infrarossi SR505

HC-SR505 Mini sensor di movimento a infrarossi PIR sensor preciso a infrarossi SR505
shared：
Smart Electronics HC-SR505 Mini sensor di movimento a infrarossi PIR sensor preciso a infrarossi SR505
HC-SR505 Mini sensore di movimento PIR a infrarossi Sensore Precise Infrared Detector SR505 Switch Module

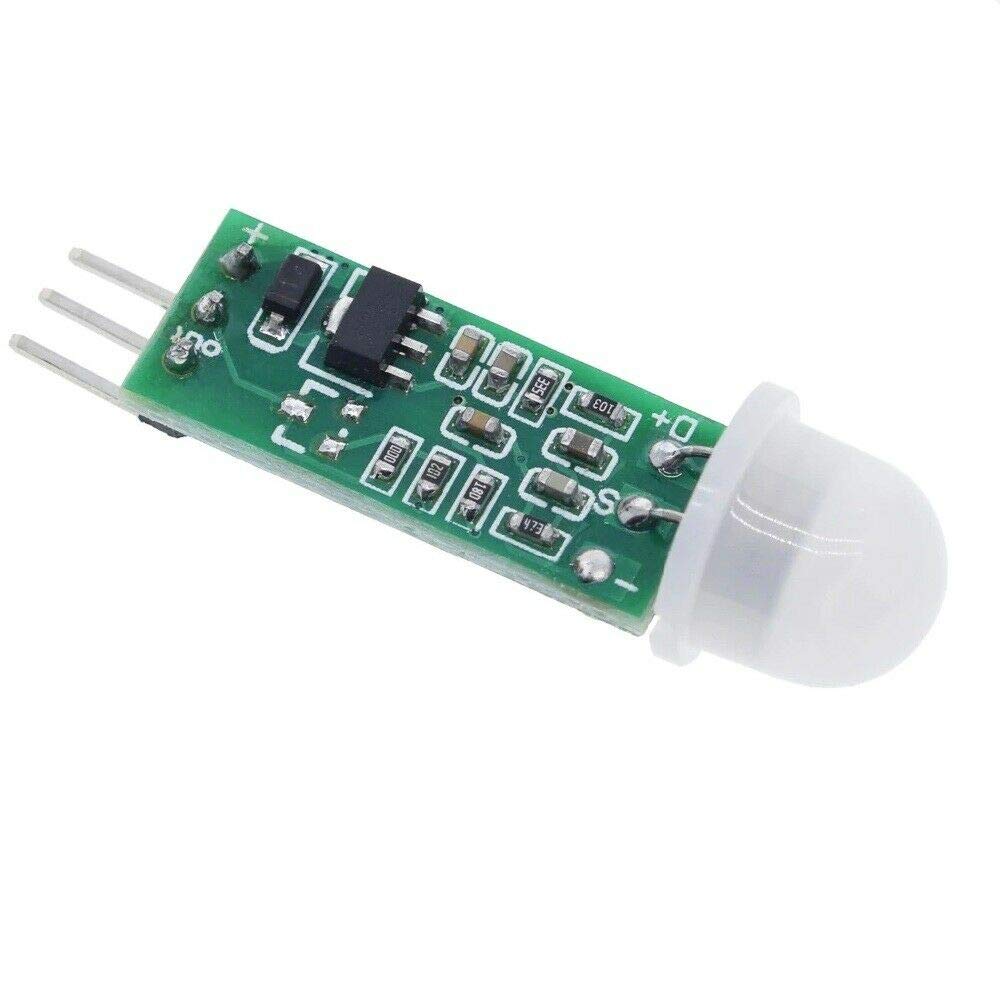

HC-SR505 small body sensing module is based on infrared technology, automatic control products, high sensitivity,

high reliability, ultra-small, ultra-low voltage mode operation. Widely utilizzato in vari auto-sensing di apparecchiature elettriche,

especially battery-powered automatic control products.

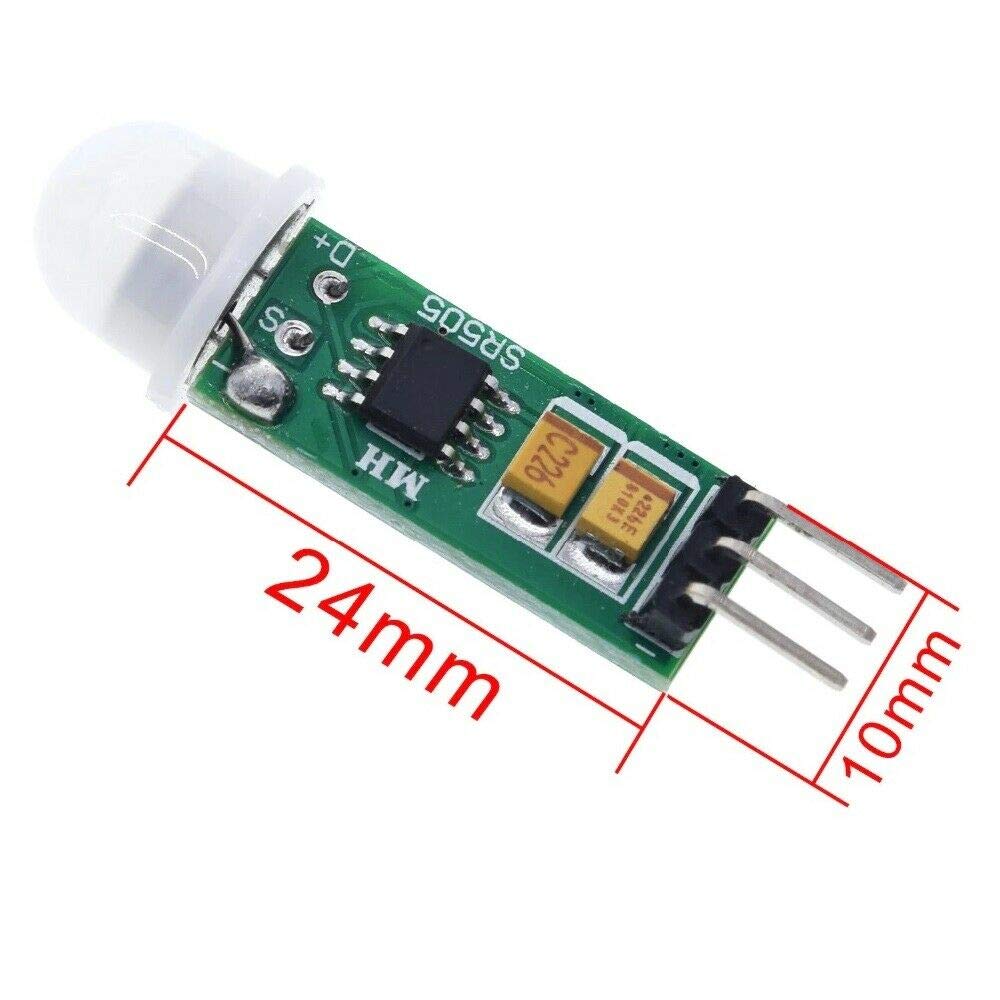

Specifiche: 1. Intervallo di tensione: DC4,5-20 V. 2. Static current: <60uA 3. Uscita livello: High 3,3 V/Low 0 V. 4. Trigger: trigger repeatable (default) 5. Tempo di consegna: Default 8S + -30% (can be customized range of a few tenths - tens of minutes) 6. PCB. Dimensioni: 10 x 23 mm. 7. Angolo di induzione: <100 gradi cono angolo 8. Distanza di induzione: 3 metri 9. Temperatura di lavoro: -20 - +80 gradi 10. Sensor Lens Dimensioni: diametro: 10 mm (predefinito). Caratteristiche:

1. Automatic indution: to enter the sensing range of the output is high, people leave the sensor range automatically delay off high,

output low. Dimensioni ultra piccole.

2. Repeatable trigger: the sensor output high, the delay period, if there is human activity in its sensing range, the output

will remain high until people leave after the high variabile delay (automatically extended sensor module detects the

human body after every activity a delay period, and the last time an event is the start ng point of the dell ay time).

3. Ampia tensione operativa: il default operating voltage DC4,5 V-20 V. 4. Micropower: quiescent corrente <50 microamps, especially for battery-powered automatic control products. 5. Uscita ad alto segnale: facile docking e tutti i tipi di circuiti.
