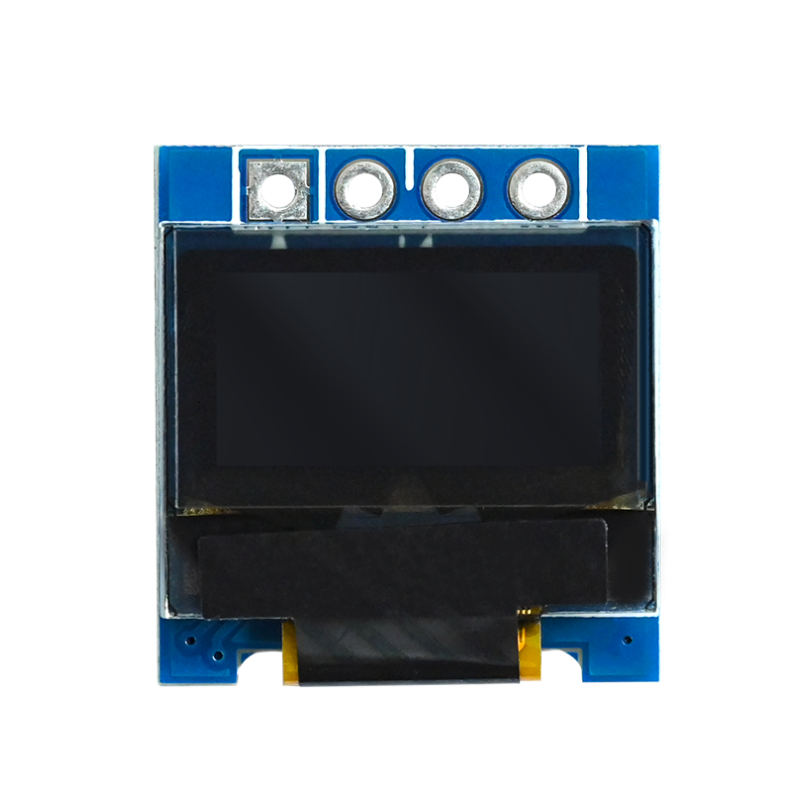

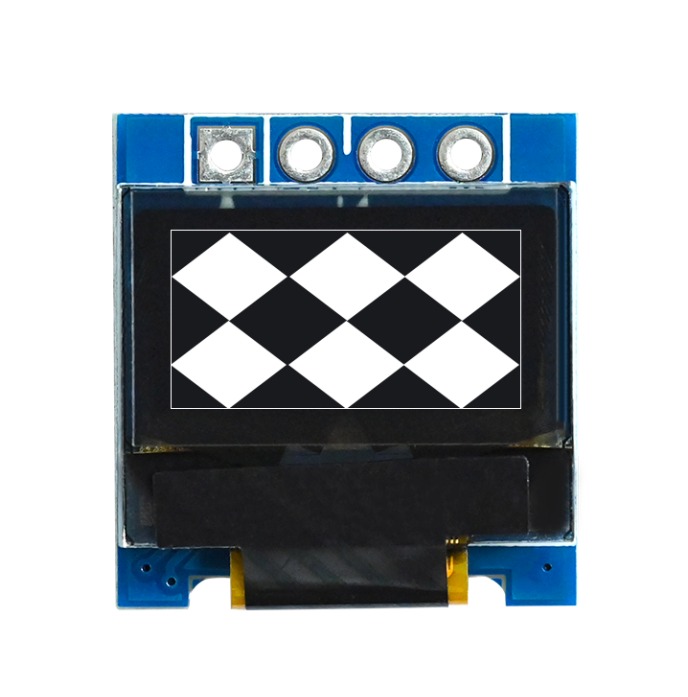

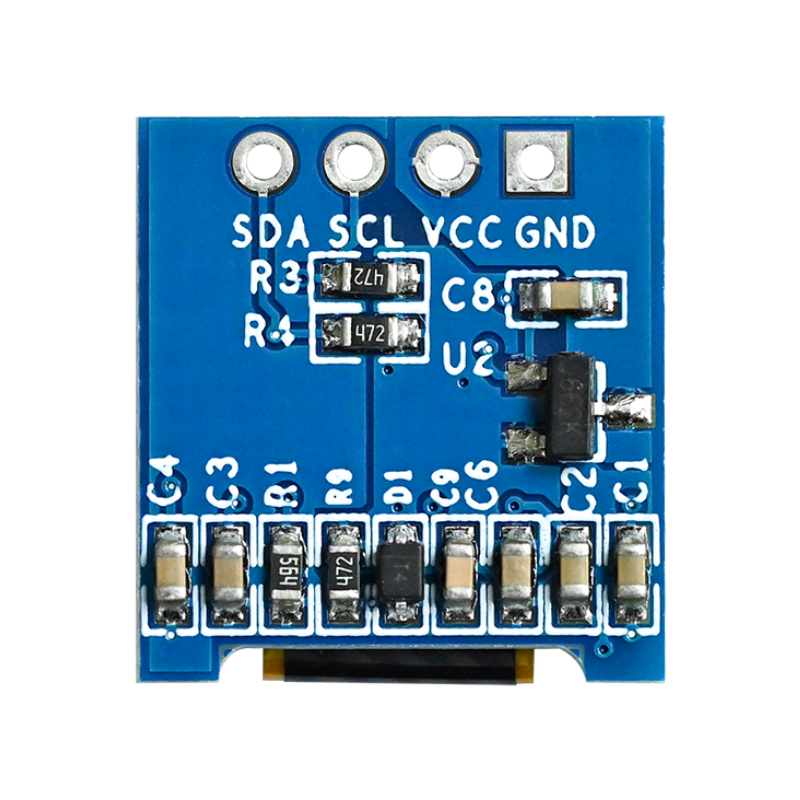

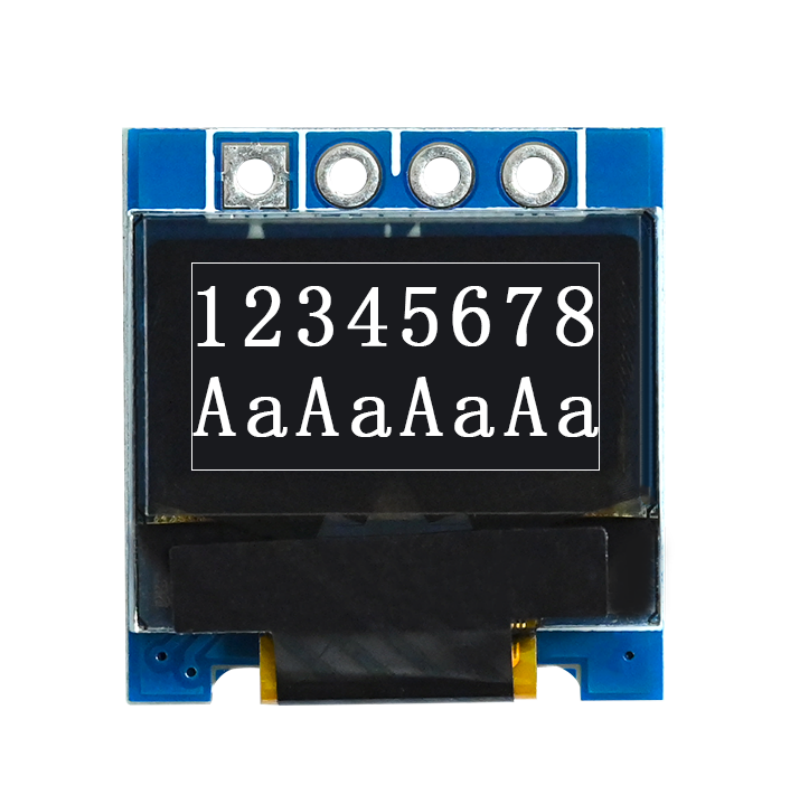

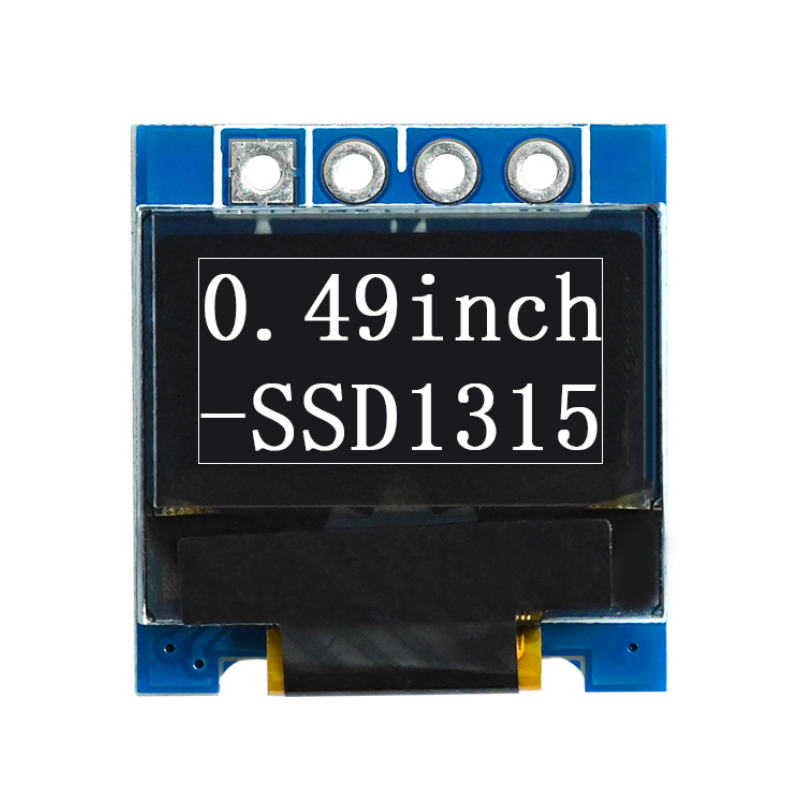

Smart Electronics 0.49 inch 0.5 inch OLED 64x32 ssd1315 0.49 OLED display screen highlighted OLED

0.49 inch 0.5 inch OLED 64x32 ssd1315 0.49 OLED display screen highlighted OLED
shared：
0.49 inch OLED display 6432 OLED LCD screen ssd1315 display 0.5 inch OLEDscreen
Type
oled
Display Size
0.49 inch
Product Name
049 inch OLED monochrome display screen
Resolution
64 * 32
Working voltage
3.3V
Control chip
SSD1315
Display area
11.18 * 5.58 (mm)
Panel size
26.70*19.26*14 (mm)
Pixel spacing
0.175 * 0.175 (mm)
Pixel size
0.155 * 0.155 (mm)
Number of pins
4 (2.54mm spacing single row needle)
Working temperature
-40~70 °C
Perspective direction
full view
Interface type
 IIC interface
