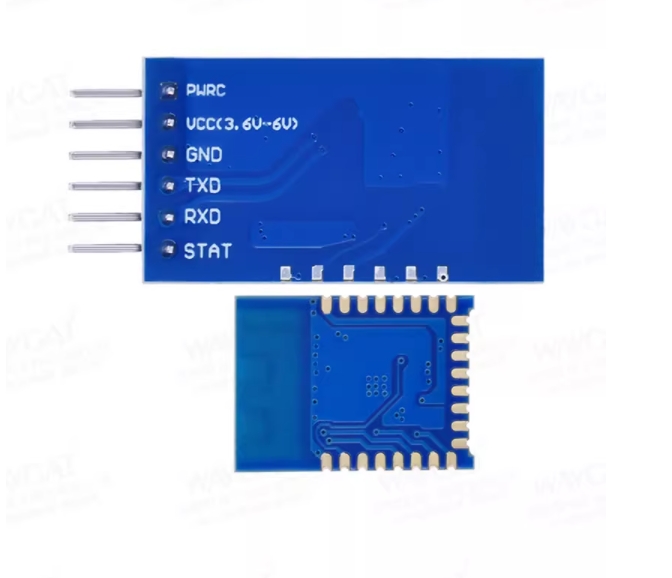

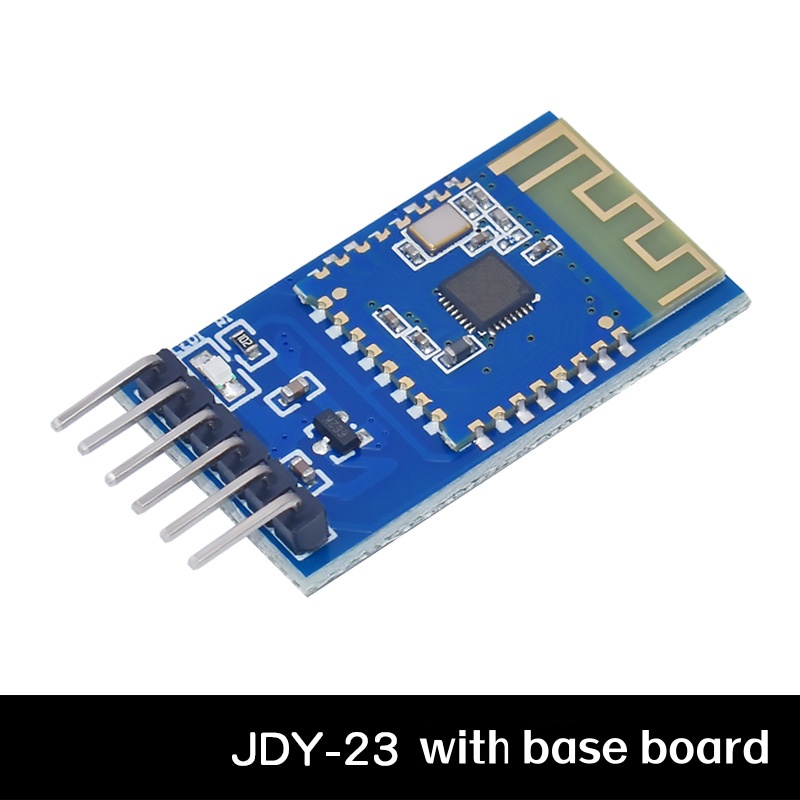

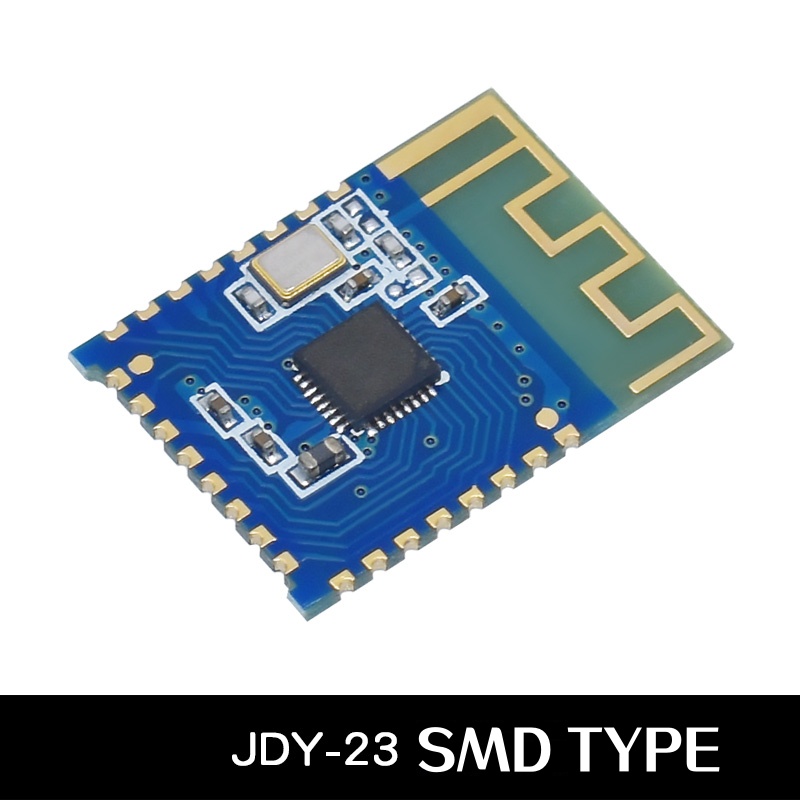

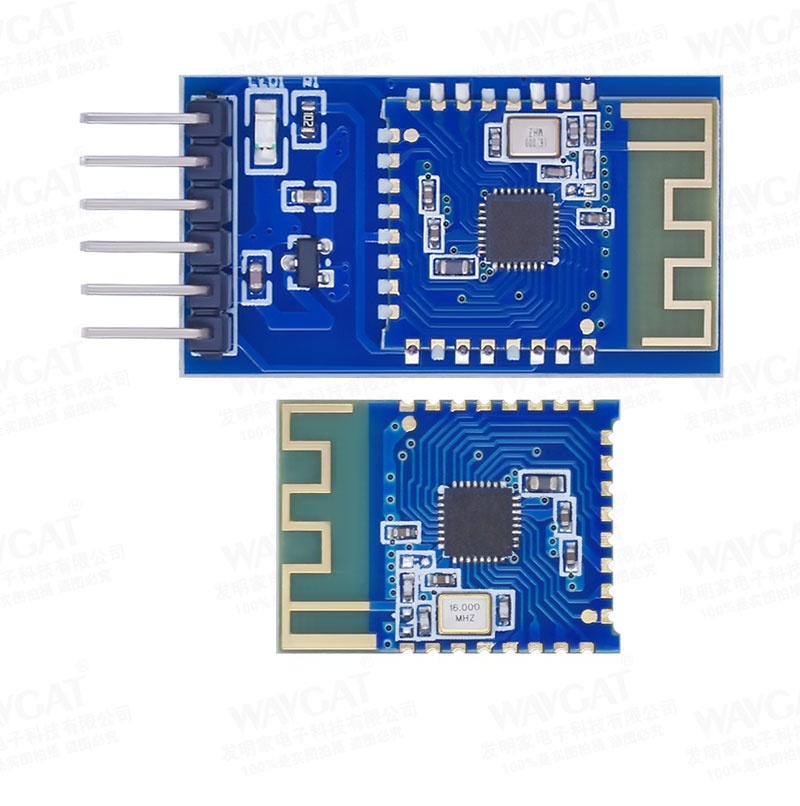

Smart Electronics JDY-23 BLE5.0 ble transparent data transmission CC2541 slave bluetooth module

JDY-23 BLE5.0 ble transparent data transmission CC2541 slave bluetooth module

Model: JDY-23
Working frequency band: 2.4G
Transmission power: 4dB (maximum)
Communication interface: UART
Working voltage: 1.8-3.6V
Working temperature: -40 ℃ -80 ℃
Antenna: Built in PCB antenna
Receiving sensitivity: -97dbm
Transmission distance: 60 meters
Master Slave Support: Slave
Module size: 19.6 * 14.94 * 18mm (length, width, height)
Bluetooth version: BLE5.0 (also includes BLE4.0 and BLE4.2)
Wake up current: 800uA (with broadcast)
Shallow sleep current:<50uA (with broadcast)
Command parameters: Save parameter configuration, power-off data saved
SMT welding temperature:<260 ℃
RF TX/RX peak current: 5mA
shared：

JDY-23 BLE5.0 Ble transparent data transmission CC2541 slave Ble module

Feature
Model: JDY-23 Working frequency band: 2.4G Transmission power: 4dB (maximum) Communication interface: UART Working voltage: 1.8-3.6V Working temperature: -40 ℃ -80 ℃ Antenna: Built in PCB antenna Receiving sensitivity: -97dbm Transmission distance: 60 meters Master Slave Support: Slave Module size: 19.6 * 14.94 * 18mm (length, width, height) Bluetooth version: BLE5.0 (also includes BLE4.0 and BLE4.2) Wake up current: 800uA (with broadcast) Shallow sleep current:<50uA (with broadcast)
Command parameters: Save parameter configuration, power-off data saved SMT welding temperature:<260 ℃ RF TX/RX peak current: 5mA
