Smart Electronics JDY-34 SPP dual-mode Ble module SPP-C host printer Ble module

JDY-34 SPP dual-mode Ble module SPP-C host printer Ble module

Model: JDY-34
Antenna type: PCB board mounted antenna
Working frequency band: 2.4G
Transmission power: 4dB (peak)
Communication interface: UART
Working voltage: 2.1V-3.6V
Working temperature: -40 ° C-80 ° C
Receiving sensitivity: -91dbm
Transmission distance: 40 meters

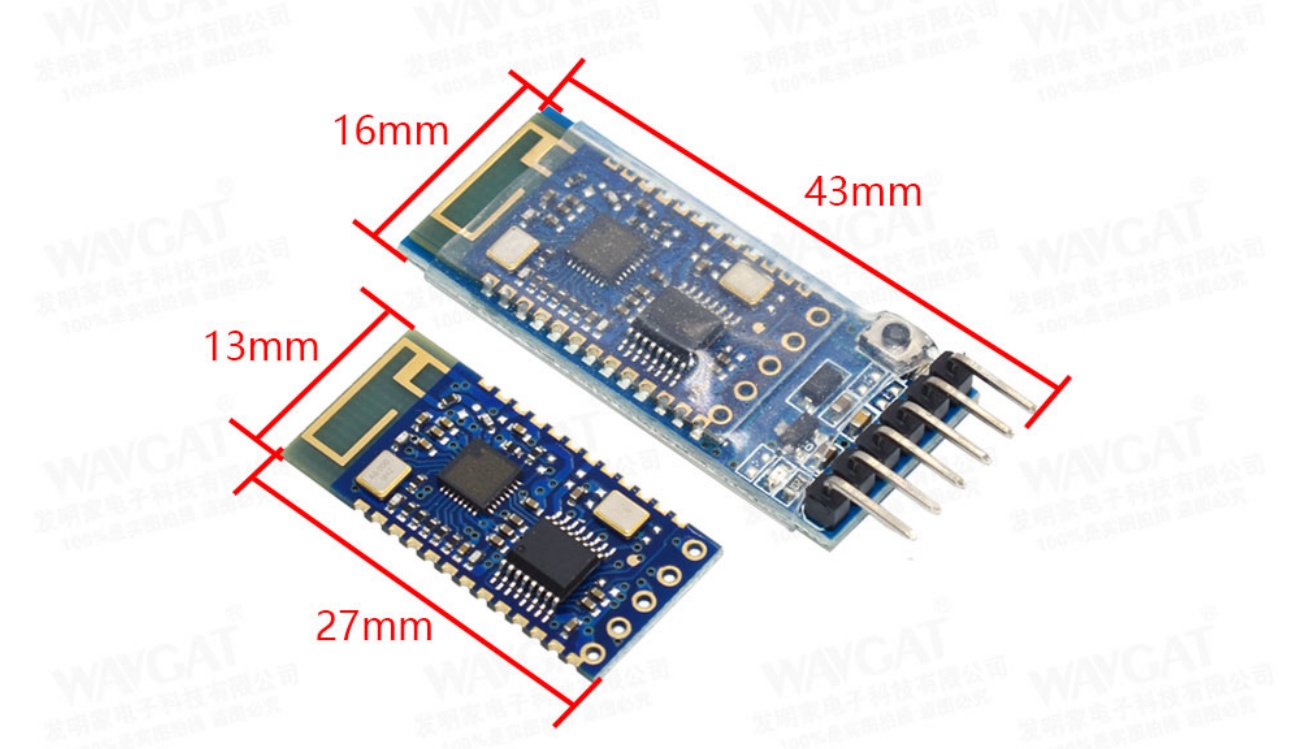

Module size: 27 * 12.88 * 1.8mm
Bluetooth version: BLE4.2+SSP dual-mode (backward compatible with 4.2, 4.0, 3.0, 2.1, 2.0)
Transmission rate: BLE14 K Bytes/s
SPP 40K byte/s (Android or computer Bluetooth tested 40K byte/s speed)
Command parameter saving: parameter configuration and power-off data are saved
SIM welding temperature:<260 ℃
Working current: 15mA
shared：


JDY-34 SPP dual-mode Ble module SPP-C host printer Ble module

Feature
Model: JDY-34 Antenna type: PCB board mounted antenna Working frequency band: 2.4G Transmission power: 4dB (peak) Communication interface: UART Working voltage: 2.1V-3.6V Working temperature: -40 ° C-80 ° C Receiving sensitivity: -91dbm Transmission distance: 40 meters Module size: 27 * 12.88 * 1.8mm Bluetooth version: BLE4.2+SSP dual-mode (backward compatible with 4.2, 4.0, 3.0, 2.1, 2.0) Transmission rate: BLE14 K Bytes/s SPP 40K byte/s (Android or computer Bluetooth tested 40K byte/s speed) Command parameter saving: parameter configuration and power-off data are saved SIM welding temperature:<260 ℃ Working current: 15mA
