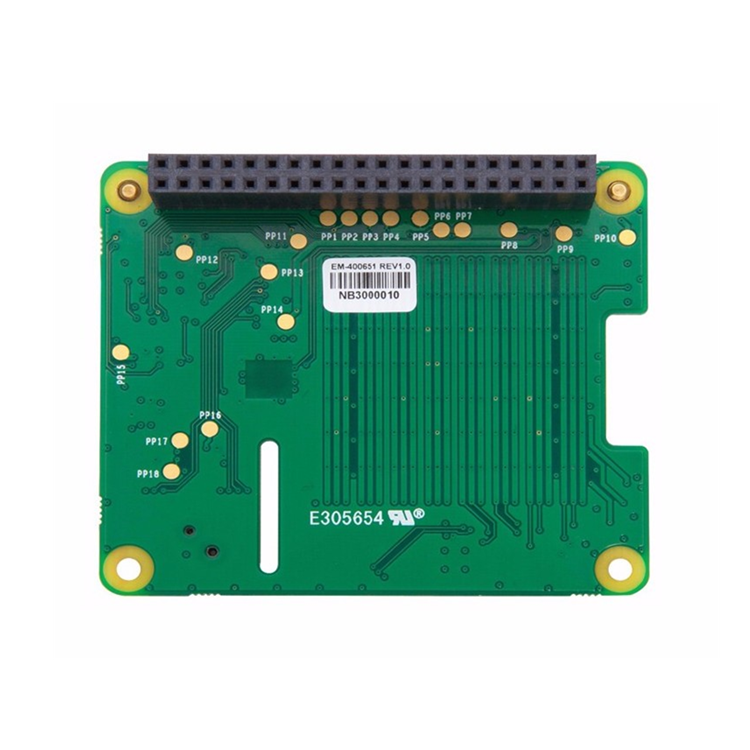

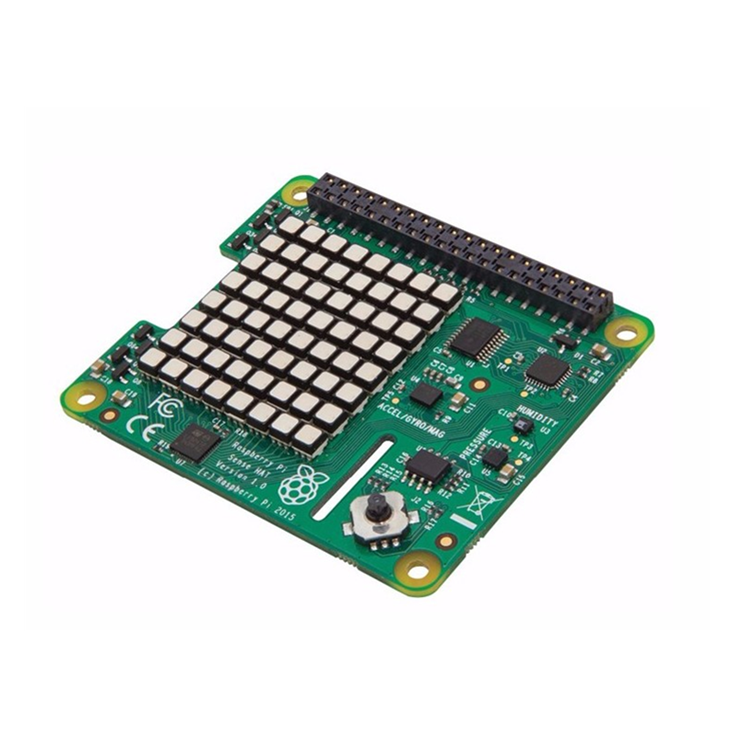

Compatible with Raspberry Pi 4 generation Official Sensor Expansion Board RASPBERRY PI SENSE HAT sense

Raspberry Pi Sense HAT provides power and data connectivity via the Raspberry Pi motherboard 40Pin GPIO interface. To create the "Astro Pi", the Sense HAT sensor module integrates common sensors, making it usable in a variety of different types of experiments, applications, and even It is a game.
shared：

Raspberry Pi Sense HAT provides power and data connectivity via the
Raspberry Pi motherboard 40Pin GPIO interface. To create the "Astro Pi",
the Sense HAT sensor module integrates common sensors, making it usable
in a variety of different types of experiments, applications, and even It is a game.



Function

  • Gyroscope – angular rate sensor: ±245/500/2000dps

  • Accelerometer - acceleration sensor: ±2/4/8/16 g

  • Magnetometer - Magnetic Sensor: ±4/8/12/16 gauss

  • Barometer: 260 – 1260 hPa absolute range (accuracy depends on the temperature and pressure,

  • ±0.1 hPa under normal conditions)

  • Temperature sensor (Temperature accurate to ± 2 °C in the 0-65 °C range)

  • Relative Humidity sensor (accurate to ±4.5% in the 20-80%rH range, accurate to ± 0.5 °C in 15-40 °C range)

  • 8x8 LED matrix display

  • Small 5 button joystick
