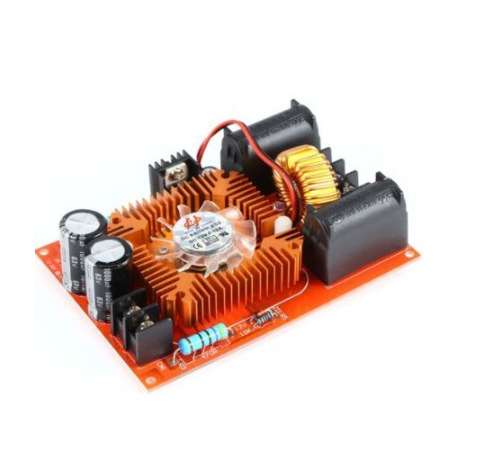

Smart Electronics High Voltage 15A-20A ZVS Tesla Coil Drive Board Module DC 12-30V

High Voltage 15A-20A ZVS Tesla Coil Drive Board Module DC 12-30V
shared：

Product category: coil flyback
Material: PCB board+components+plastic
Input current: 10A or above (recommended 15A-20A)
Input voltage: DC 12-30V
Color: As shown in the picture
Packaging: Electrostatic bag
Note: Light shooting and different display methods may cause the color of the items in

the picture to differ slightly from the actual object. The allowable measurement error is+/-1-3cm.

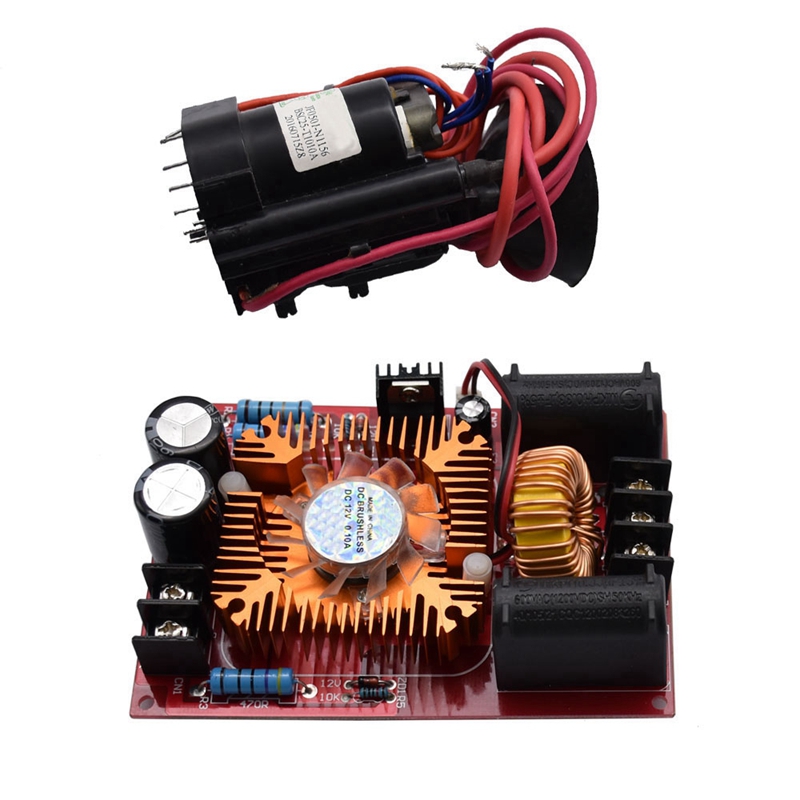

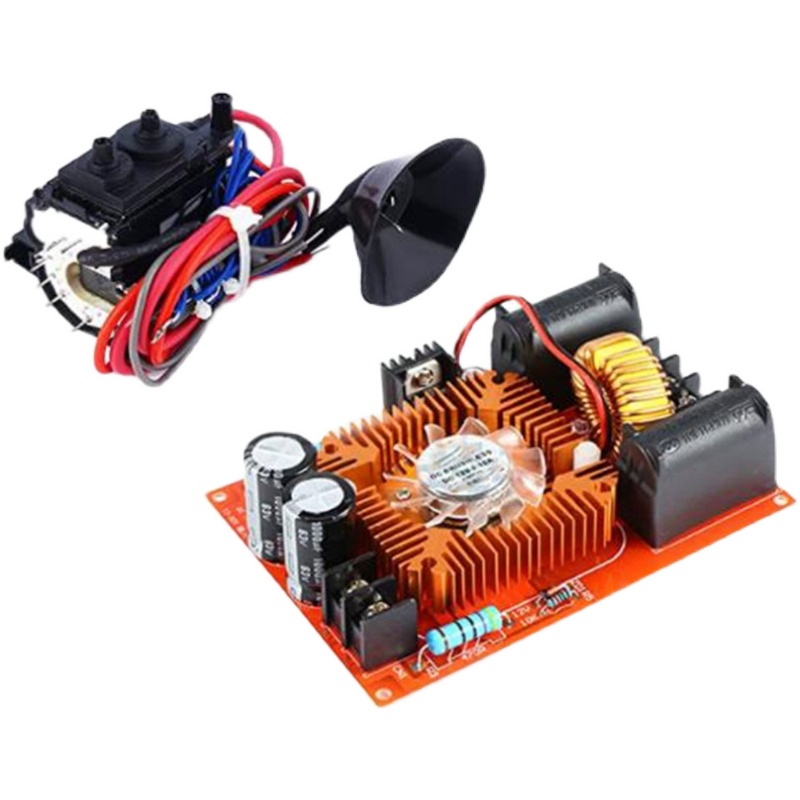

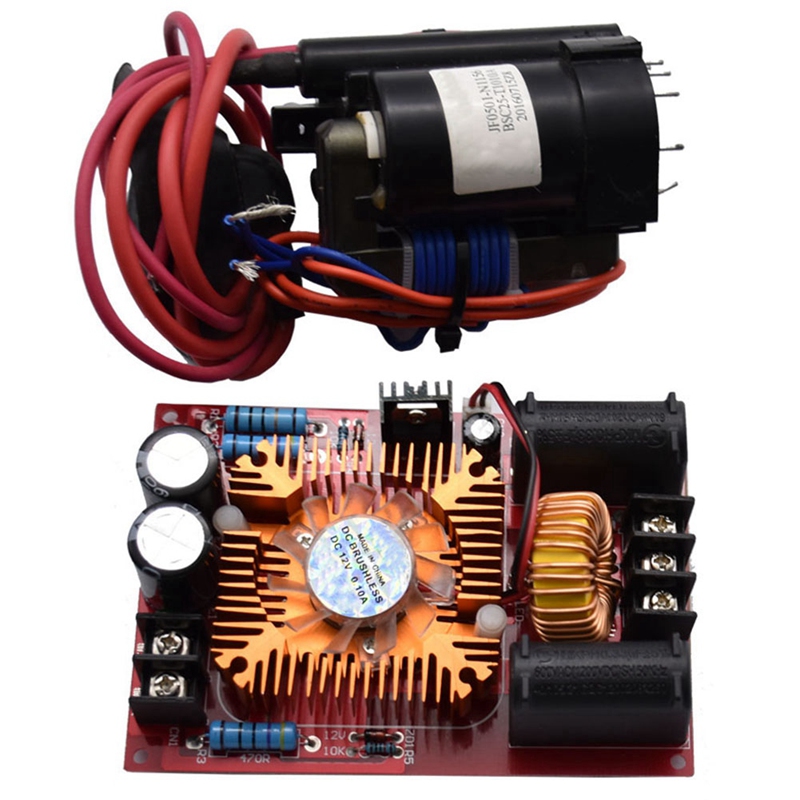

The package includes:
1 x ZVS Tesla coil flyback driver
1 x ignition coil
Recommended power supply: 24V20A
