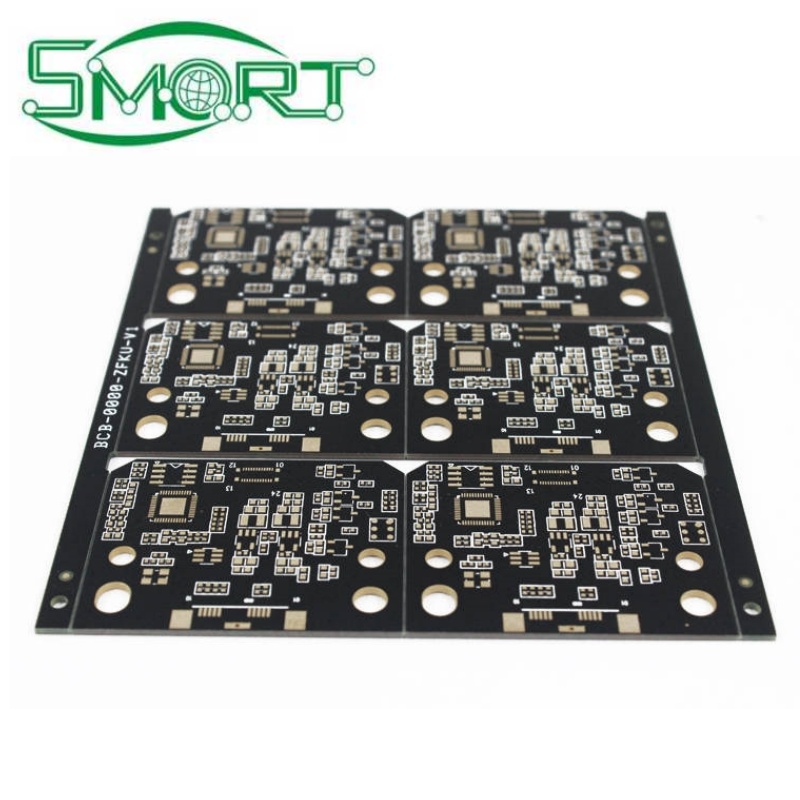

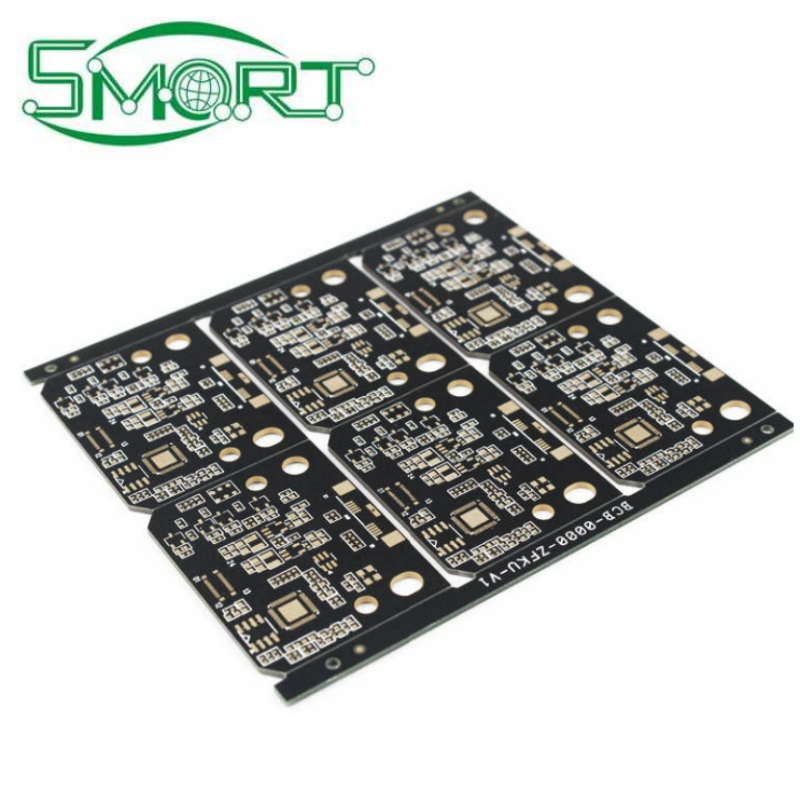

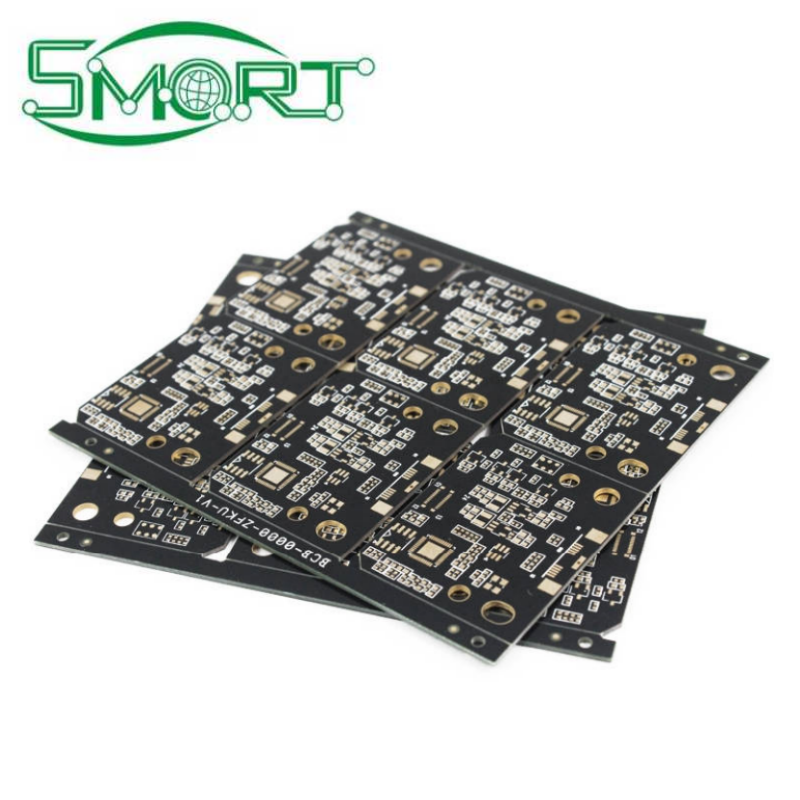

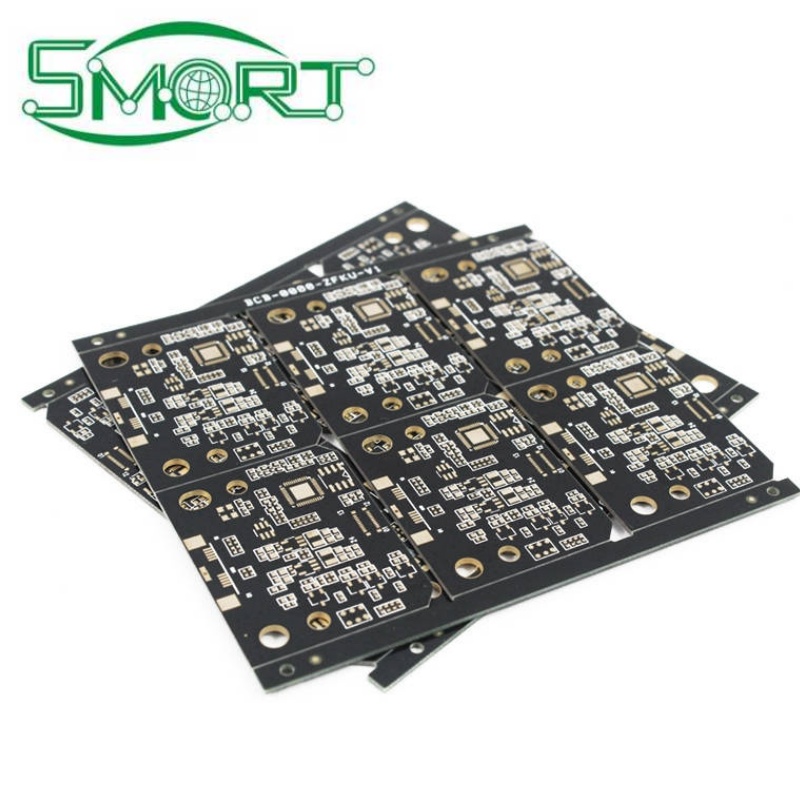

Smart Electronics 6 layer gold-plated matte black oil impedance PCB board

6 layer gold-plated matte black oil impedance PCB board
shared：

The 6-layer gold-plated matte black oil impedance PCB board is a highly advanced and specialized printed circuit board.
This PCB board features six layers of conductive materials and insulating substrates, which provide enhanced routing capacity and allow for more complex circuit designs. The gold plating offers excellent electrical conductivity and durability, while the matte black oil finish gives the board a sleek and professional appearance.
The impedance control feature is crucial for ensuring proper signal transmission and minimizing signal interference. By precisely controlling the impedance of the circuit traces, this PCB board can optimize the performance of high-speed digital and analog circuits.
The manufacturing process of this 6-layer gold-plated matte black oil impedance PCB board involves advanced techniques and strict quality control measures. Precise layer alignment, high-resolution imaging, and controlled plating and etching processes are essential to ensure the quality and performance of the board.
This type of PCB board is commonly used in a wide range of applications, including telecommunications, computing, industrial control, and aerospace. Its advanced features and reliable performance make it an ideal choice for demanding electronic systems that require high-quality printed circuit boards.
In conclusion, the 6-layer gold-plated matte black oil impedance PCB board is a state-of-the-art printed circuit board that offers excellent electrical conductivity, durability, and impedance control. Its unique combination of features makes it a valuable component in many high-performance electronic systems.
