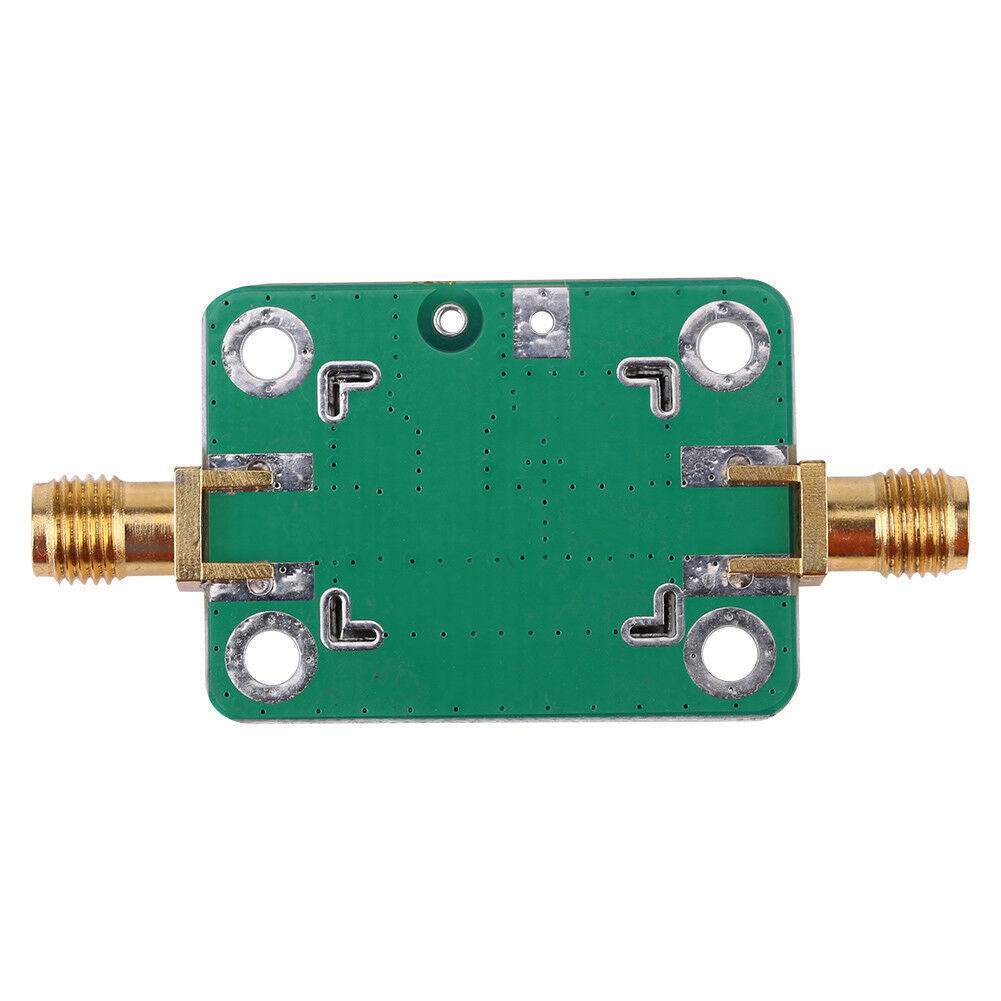

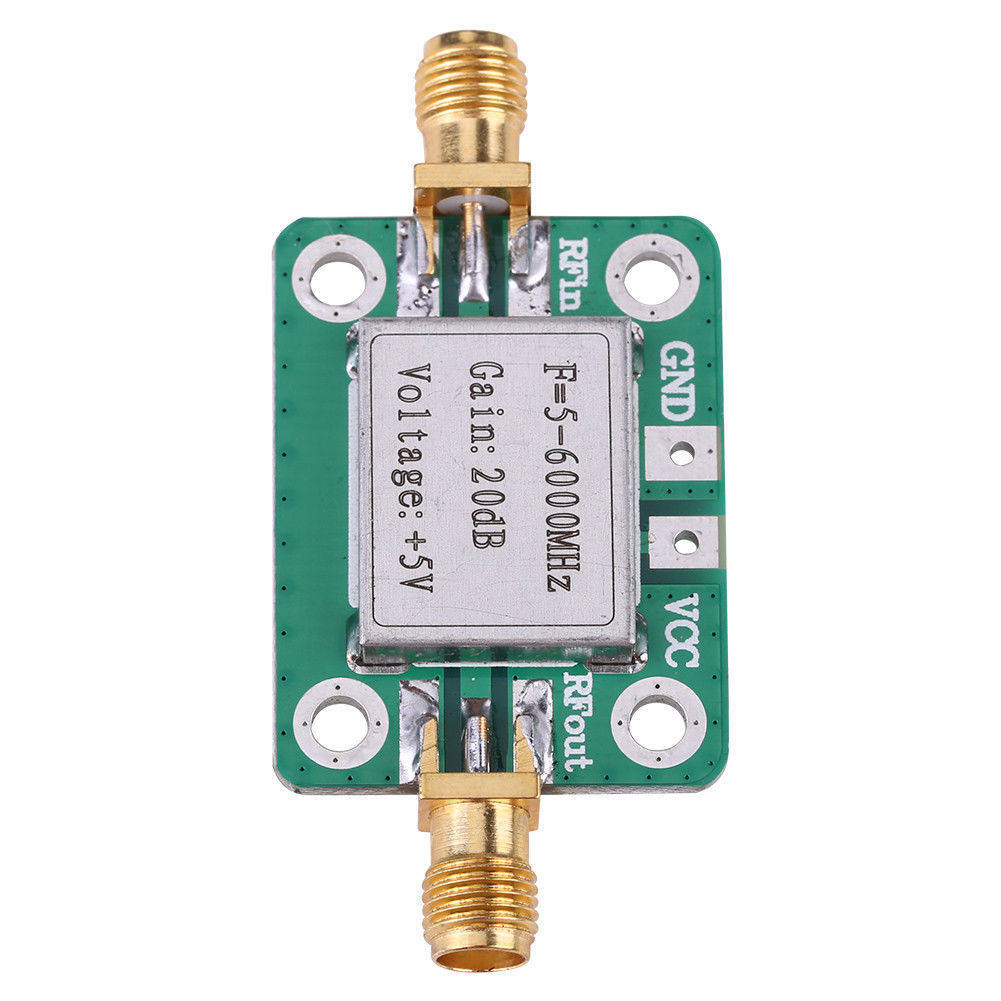

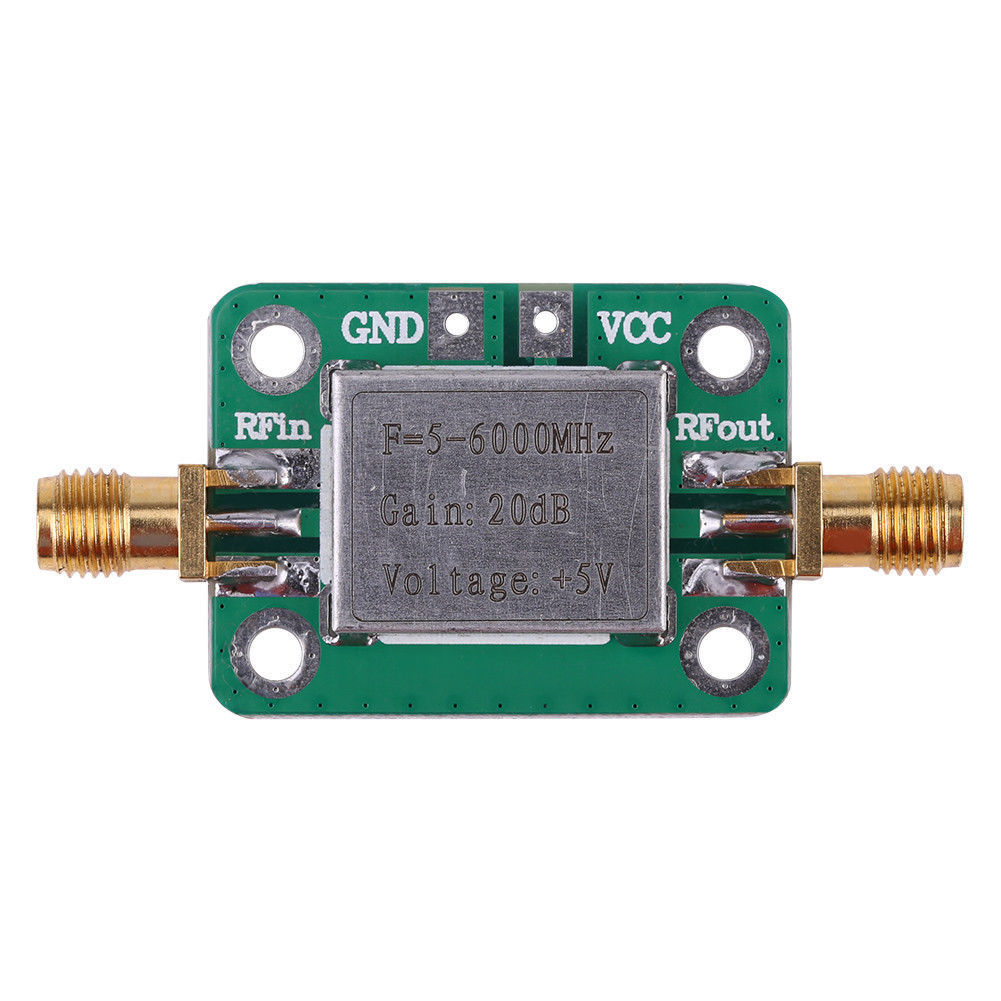

Smart Electronics 5M-6GHz Gain 20dB hf ultra breitband amplifier 6g ultra wideband medium power RF amplifier with Shielded Case

5M-6GHz Gain 20dB hf ultra breitband amplifier 6g ultra wideband medium power RF amplifier with Shielded Case
shared：

Smart Electronics 5M-6GHz Gain 20dB hf ultra breitband amplifier 6g ultra wideband medium power RF amplifier with Shielded Case
Features:
* This is a 5--6000MHz RF signal power amplifier with 20dB gain.
* It has big dynamic range and wide operating frequency range.
* The power supply voltage is 5VDC, and working current is 85mA.
* Maximum output power is +21dBm(100mW)@1dB compression point.
* It is suitable for all types of fixed gain amplification of RF signal.

Specifications:
Operating Frequency: 5--6000MHz
Amplifier Gain: 20dB
Max. Output Power: +21dBm(100mW)@1dB compression point
Working Current: 85mA (5V)
Power Supply Voltage: 5VDC
System Impedance: 50ohm
Size: 34*25mm/1.33*0.98in

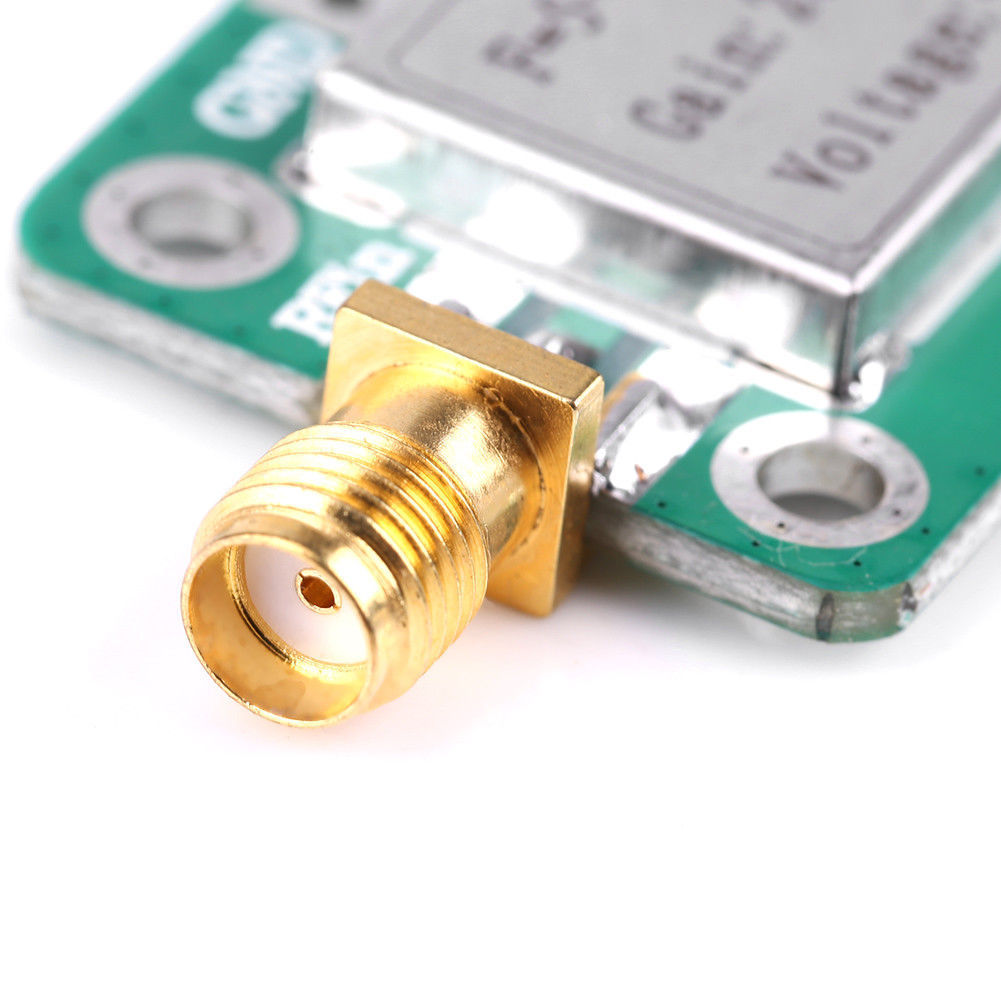

THE CONNECTOR TYPE : SMA-KE
