Smart Electronics AC-DC Power Supply Module AC 100-240V to DC 24V 9A Switching Power Supply Board

AC-DC Power Supply Module AC 100-240V to DC 24V 9A Switching Power Supply Board

Product Description:
Input voltage: AC 100-240V 50/60HZ
Output Voltage: DC 24V
Output Current: 6-9A
Output Power: 150W ( Max 220W )

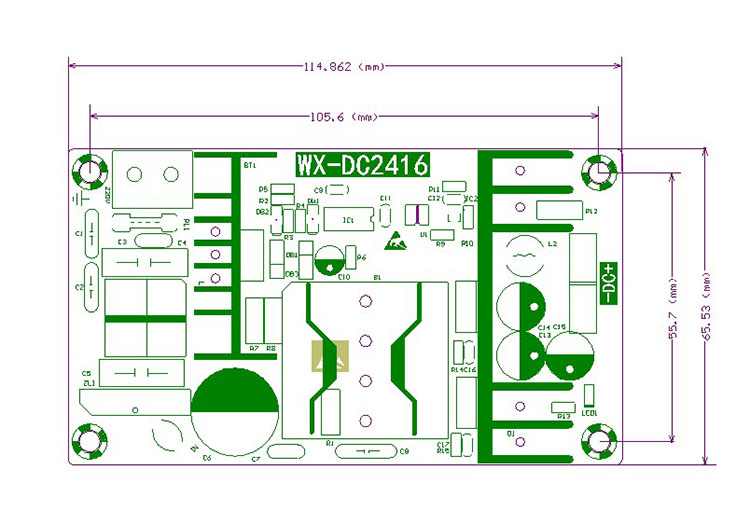

Location Pore Size: 105.8 x 55.7mm
Overall Dimensions: 115 x 65mm
Ripple Noise: Less than 150MV
Overcurrent protection: Yes
Overload Protection: Yes
Short circuit protection: Yes
shared：

AC-DC Power Supply Module AC 100-240V to DC 24V 9A Switching Power Supply Board

Product Description:
Input voltage: AC 100-240V 50/60HZ
Output Voltage: DC 24V
Output Current: 6-9A
Output Power: 150W ( Max 220W )
Location Pore Size: 105.8 x 55.7mm
Overall Dimensions: 115 x 65mm
Ripple Noise: Less than 150MV
Overcurrent protection: Yes
Overload Protection: Yes
Short circuit protection: Yes
